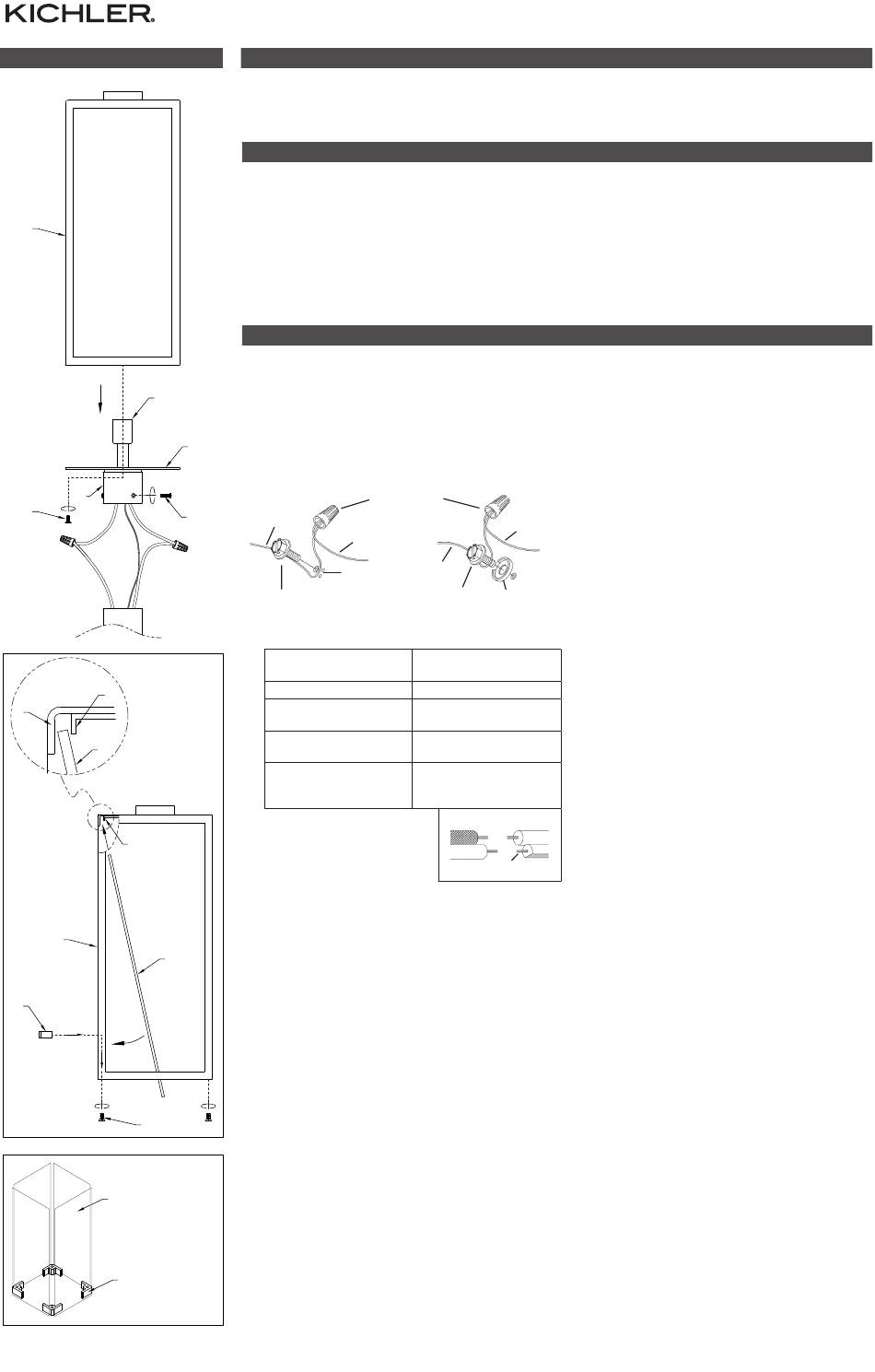

FIXTURE DIAGRAM
C
J
A
E
H
Fig. 1
C
INSTALLING THE
GLASS [I]
I
H
C
G
F
I
Fig. 2
INSTALLING THE
GLASS RETAINERS [G]
G
REV 21-APR-2023
PARTS LIST
[A] Base
[B] Plate
[C] Frame
[D] Mounting Screw (3)
CAUTIONS
CAUTION – RISK OF SHOCK:
Disconnect Power at the main circuit breaker panel or main fusebox before starting and during the installation.
WARNING:
1. This fixture is intended for installation in accordance with the National Electrical Code (NEC) and all local code
specifications. If you are not familiar with code requirements, installation by a certified electrician is recommended.
Failure to adhere to these codes and instructions may result in serious injury and/or property damage and will void
the warranty.
CLEANING:
• Always be certain that electric current is turned off before cleaning.
• Only a soft damp cloth should be used. Harsh cleaning products may damage the finish.
INSTALLATION INSTRUCTIONS
1.
Remove four (4) countersunk screws[E] from the bottom of plate[B]. Retain countersunk screws. Carefully remove frame[C] from base[A].
2.
Carefully slip base onto post. Using the base as a template, mark the positions for the three (3) mounting screw holes on the post.
NOTE: Ensure that fixture is facing the desired direction for final installation.
3.
Remove base from post.
4.
Drill 3/16" (4.76mm) holes in post at the positions that were marked in Step 2.
5.
Grounding instructions: (See Illus. a or b).
B
If fixture is provided with ground wire, connect fixture ground wire to outlet box ground wire with wire connector after following the above steps.
Never connect ground wire to black or white power supply wires.
a
OUTLET BOX
D
GROUND
GREEN GROUND
SCREW
6.
Make wire connections. Reference chart below for correct connections and wire accordingly.
Connect Black or Red
Supply Wire to:
Black
*Parallel cord (round &
smooth)
Clear, Brown, Gold or Black
without Tracer
Insulated wire (other
than green) with copper
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
7.
Carefully slip base onto post and secure using three (3) mounting screws[D]. Screws should slip into holes drilled in post.
8.
Take the glass panels with the three (3) EVA pad side pointing up and carefully raise glass[I] up through the bottom of frame[C]. Insert top edge of
glass between frame[C] and tab[H] (Fig. 1), tilt glass against frame until vertical, and seat glass on inside of frame. Repeat for remaining glass.
9.
Carefully raise glass retainers[G] up through the bottom of frame, and position them next to the bottom corners of the glass (Fig. 2). Insert
countersunk glass retainer screws[F] (from parts bag) into the holes in the bottom corners of the frame, and thread them into the bottom of the
I
glass retainers. Tighten to secure glass in place.
NOTE: Glass should be positioned between frame and glass retainers.
10. Insert recommended bulb(s) (not included).
11.
Carefully lower frame[C] (with glass installed) down over bulb and socket[J] onto plate[B], aligning the holes in the bottom of the frame with the
holes in the plate.
12.
While holding frame in place, attach frame to plate using the four (4) countersunk screws[E] that were removed in Step #1. Tighten screws to secure
frame to plate.
For warranty information please visit: kichler.com/warranty
[E] Countersunk Screw (4)
[F] Countersunk Glass Retainer
Screw (4, in parts bag)
[G] Glass Retainers (4)
WIRE CONNECTOR
FIXTURE
GROUND
OUTLET BOX
DIMPLES
GROUND
CUPPED
GREEN GROUND
SCREW
WASHER
Connect White Supply
Wire to:
White
*Parallel cord (square &
ridged)
Clear, Brown, Gold or Black
with Tracer
Insulated wire (other
than green) with silver
conductor
Neutral Wire
© 2023 Kichler Lighting LLC. All rights reserved.
[H] Tab (4)
[J] Socket
b
FIXTURE
GROUND
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
[I] Glass (4)
IS-59115-US
