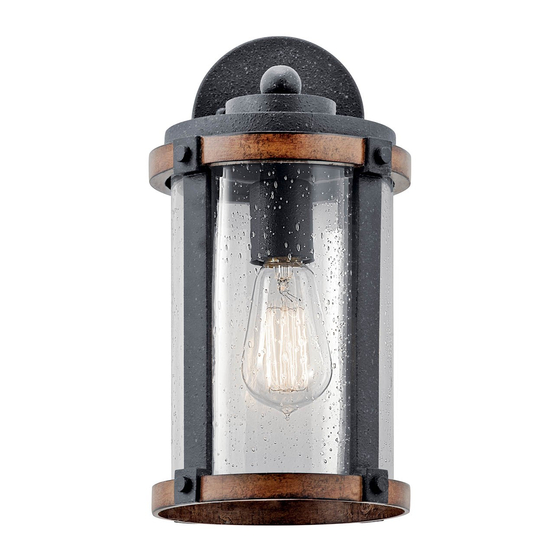

ITEM #0759418 OUTDOOR WALL LANTERN Kichler® is a registered trademark of The L.D. Kichler Co. All Rights Reserved. MODEL #39495 Français p. 9 Español p. 17 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer...
HARDWARE CONTENTS Threaded Wire Knob Short Connector Qty: 2 Machine Qty: 3 Screw Long Qty: 2 Machine Screw Qty: 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • IMPORTANT: NEVER attempt any work without shutting off the electricity.
Page 4
ASSEMBLY INSTRUCTIONS 1. Insert long machine screws (DD) through Outlet Box mounting bracket (B) so the long machine screws (DD) protrude outward. Orient the mounting bracket (B) so the raised center portion protrudes into the outlet box (not included). Connect the mounting bracket (B) to the outlet box with short machine screws (BB).
Page 5
ASSEMBLY INSTRUCTIONS 3. Mounting surface should be clean, dry, flat and 1/4 in. larger than the canopy (A) on all sides. Any gaps between the mounting surface and canopy (A) exceeding 3/16 in. should be corrected as required with silicone caulking compound.
ASSEMBLY INSTRUCTIONS 5. Insert 60-watt max. Edison bulb (included) into socket (C). CARE AND MAINTENANCE • Always be certain that electric current is turned off before cleaning this item. • Use a soft, moist cloth with mild non-abrasive soap to clean fixture. Never use glass cleaner on fixture, as it will damage the metal finish.
WARRANTY Kichler Lighting warrants that its products will be free from defects in material and workmanship for one (1) year from the date of purchase by the Original Purchaser. To replace a product that has a warranted defect, the Original Purchaser shall return any allegedly defective parts or products to the authorized Kichler distributor that the product was purchased from with PROOF OF PURCHASE, Original Purchaser’s name and return address and a description of the...
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-800-554-6504, 8 a.m. - 4:30 p.m., EST, Monday - Friday. PART DESCRIPTION PART # Mounting Bracket XBAR05 Wire Connector WC001 Short Machine Screw SCR832X050 Threaded Knob TK1X832-DBK Long Machine Screw SCR832X150 Printed in China Kichler®...
Page 9
LANTERNE MURALE Kichler® est une marque déposée de The L.D. Kichler Co. Tous droits réservés. D'EXTÉRIEUR MODÈLE #39495 JOIGNEZ VOTRE REÇU ICI Numéro de série Date d’achat Des questions, des problèmes, des pièces manquantes? Avant de retourner le produit à...
QUINCAILLERIE INCLUSE Bouton Capuchon fileté Vis à de connexion Qté. : 2 métaux Qté. : 3 courte Vis à Qté. : 2 métaux longue Qté. : 2 CONSIGNES DE SÉCURITÉ Veuillez vous assurer de lire et de comprendre l’intégralité du présent guide avant d’assembler, d’utiliser ou d’installer ce produit.
INSTRUCTIONS POUR L'ASSEMBLAGE 1. Orientez le support de fixation (B) de sorte que Outlet Box la partie centrale surélevée fasse saillie dans la boîte de sortie (non fournie). Insérez les vis à métaux longues (DD) à travers le support de fixation (B) de sorte que les vis à...
Page 13
INSTRUCTIONS POUR L'ASSEMBLAGE 3. La surface de montage doit être propre, sèche, plane et dépasser de 1/4 po (6,35 mm) tout autour du pavillon (A). Tout espace excédant 3/16 po (4,76 mm) entre la surface de montage et le pavillon (A) doit être comblé à l'aide de mastic à...
INSTRUCTIONS POUR L'ASSEMBLAGE 5. Insérez de ampoule Edison de 60 watts max. (inclus) dans le douille (C). ENTRETIEN • Vérifiez toujours que le courant est coupé avant de nettoyer le luminaire. • Utilisez un linge doux et humide ainsi qu’un savon non abrasif. N’utilisez jamais de nettoyants pour vitres;...
GARANTIE Kichler Lighting garantit que ses produits seront libres de tout vice de fabrication ou défaut matériel pendant un (1) an à compter de la date d'achat par l'acheteur initial. Pour remplacer un produit porteur d'un défaut couvert par la garantie, l'acheteur initial doit retourner tout produit ou pièce supposés défectueux au distributeur Kichler agréé...
LISTE DES PIÈCES DE RECHANGE Pour obtenir des pièces de rechange, appelez notre service à la clientèle au 1-800-554-6504, entre 8 h et 16 h 30 (HNE), du lundi au vendredi. PIÈCE DESCRIPTION Nº DE PIÈCE Support de fixation XBAR05 Capuchon de connexion WC001 Vis à...
Page 17
FAROL DE PARED Kichler® es una marca registrada de The L.D. Kichler Co. Todos los derechos reservados. PARA EXTERIORES MODELO #39495 ADJUNTE SU RECIBO AQUÍ Número de serie Fecha de compra ¿Preguntas, problemas, piezas faltantes? Antes de devolverlo a la tienda, llame a nuestro departamento de servicio al cliente al 1-800-554-6504, de 8:00 a.m.
ADITAMENTOS Perilla Conector roscada Tornillo de cables Cant.: 2 corto Cant.: 3 para Tornillo metales largo Cant.: 2 para metales Cant.: 2 INFORMACIÓN DE SEGURIDAD Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto. ADVERTENCIA •...
INSTRUCCIONES DE ENSAMBLAJE 1. Oriente el soporte de montaje (B) de modo que la parte central elevada sobresalga en la caja Caja de salida eléctrica. Introduzca los tornillos largos para metales (DD) a través del soporte de montaje (B). Con los tornillos largos para metales (DD) proyectándose hacia afuera, conecte el soporte de montaje (B) a la caja eléctrica (no se incluye) con los tornillos cortos para metales (BB).
Page 21
INSTRUCCIONES DE ENSAMBLAJE 3. La superficie donde se va a hacer el montaje debe estar limpia y seca, y debe ser plana y 6.35 mm (1/4 de pulgada) más grande que la cubierta (A) en todos los lados. Cualquier vacío entre la superficie donde se hará...
INSTRUCCIONES DE ENSAMBLAJE 5. Inserte un foco de Edison de máximo 60 W (incluidos) en el portalámparas (C). CUIDADO Y MANTENIMIENTO • Siempre asegúrese de que la corriente eléctrica esté desconectada antes de limpiar. • Utilice un paño húmedo suave y jabón suave no abrasivo para limpiar la lámpara. Nunca utilice un limpiador para vidrio en la lámpara, porque éste dañará...
Page 23
GARANTÍA Kichler Lighting garantiza que sus productos estarán libres de defectos de materiales o mano de obra por un (1) año a partir de la fecha de compra por el Comprador Original. Para remplazar un producto que tenga un defecto cubierto por garantía, el Comprador Original deberá...
LISTA DE PIEZAS DE REPUESTO LISTA DE PIEZAS DE REPUESTO Para repuestos, llame a nuestro departamento de servicio al cliente al 1-800-554-6504, de 8:00 a.m. Para repuestos, llame a nuestro departamento de servicio al cliente al 1-800-554-6504, de 8:00 a.m. a 4:30 p.m.
