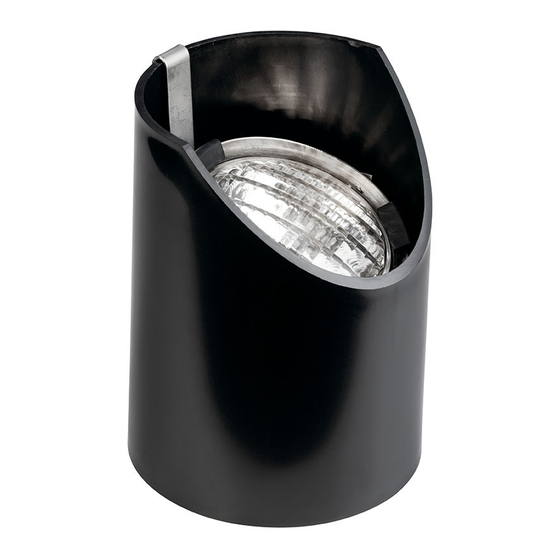

Kichler Lighting 15088BK Quick Start Manual

SAFETY INSTRUCTIONS
READ THIS FIRST
KEEP THESE INSTRUCTIONS
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or
main fusebox before starting and during the installation.
WARNING:
This fixture is intended for installation in accordance with
the National Electric Code (NEC) and Local code specifi-
cations. Failure to adhere to these codes and instructions
may result in serious injury and/or property damage and
will void the warranty.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR
INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Contact only switch / plug when
turning on.
3) Do not touch hot lens, guard, or enclosure (see diagram/
picture).
4) Keep lamp away from materials that may burn.
5) Do not touch the lamp at any time. Use a soft cloth. Oil from
skin may damage lamp.
6) Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
1) WARNING: This fixture is not to be installed within 10 feet
(3M) of a pool, spa or fountain.
2) This fixture is to be used only with a power unit (transformer)
rated a maximum of 300 W (25 AMPS) 15 volts.
3) According to the requirements of the National Electric
Code (NEC), direct burial rated wire is to be buried a
minimum of 6" [152mm] beneath the surface of the
ground.
NOTE: If additional Direct Burial wire is needed, contact
your local Kichler landscape distributor.
®
• 8 GA wire can be purchased in length of 250' (76 M),
15503-BK.
• 10 GA wire can be purchased in length of 250' (76 M),
15504-BK.
• 12 GA wire can be purchased in lengths of 100' (30 M),
15501-BK; 250' (76 M), 15502-BK; 500' (152M),
15505-BK; and 1000' (304 M), 15506-BK.
4) Fixture shall not use a tungsten halogen lamp unless the
fixture is marked for use with such lamps.
5) Wiring connections must be made with approved/listed
wire connection device(s) suitable for the application. Do
not e xceed manufacturers' wiring combination specifica
tions for size and quantity of conductors.
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR
LOW VOLTAGE), CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTEN-
TIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE
NEEDLES, GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS
ACCUMULATED ON THE LIGHT BULB, LENS, OR BODY OF THE FIXTURE.

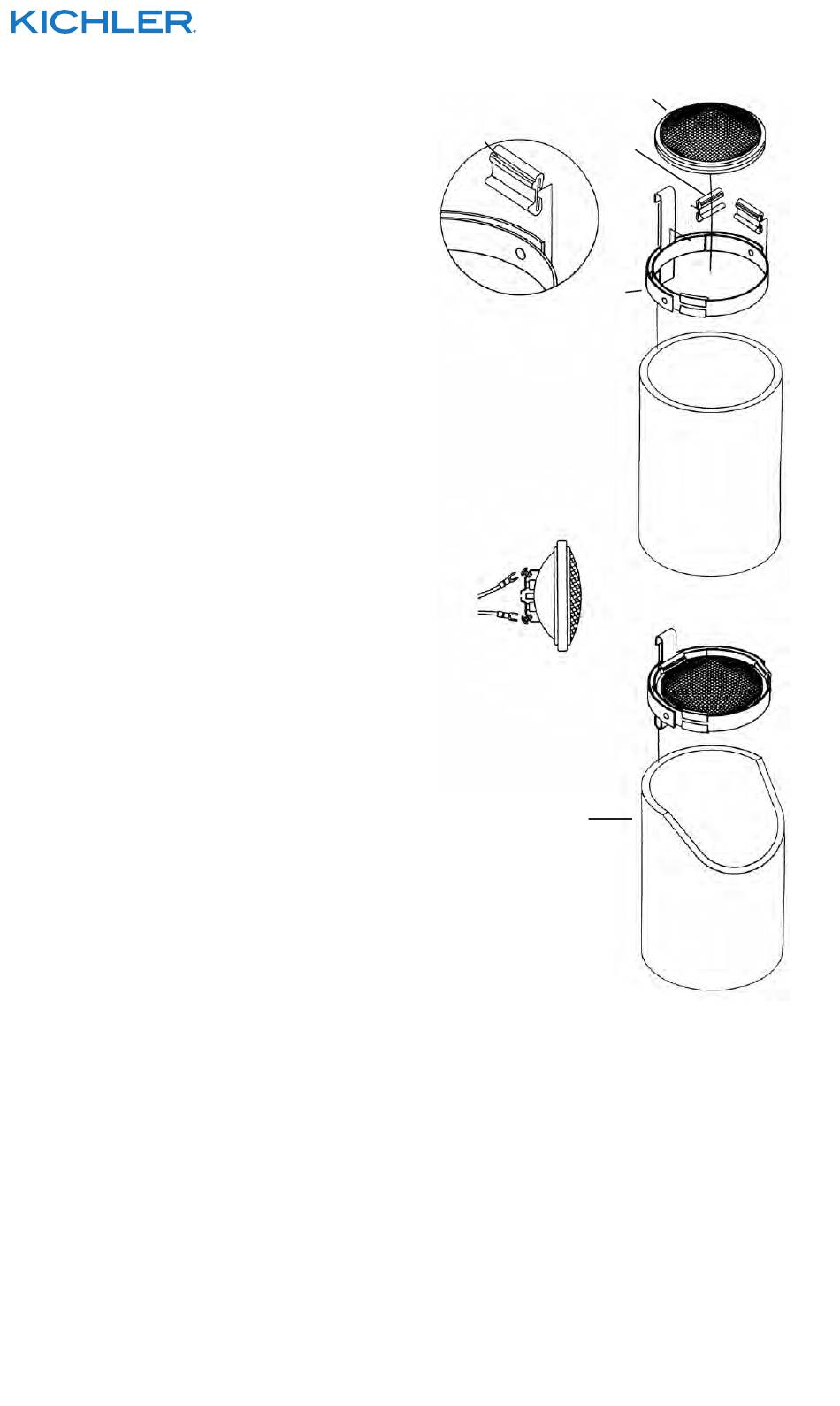

1) Well fixture can be installed two different ways.
A) If fixture is to be used for direct uplighting, dig hole in soil
15" deep.
B) If fixture is to be used for wall washing, dig hole in soil 9-1/2"
deep. These dimensions will make hole large enough to
accommodate sleeve plus 6" of pea gravel. To ensure
proper drainage, fill bottom of hole with 6" of pea gravel.
2) For direct uplighting set sleeve in deep hole with angled end
down. For wall washing set sleeve in shallow hole with angled
end up.
3) Assemble rubber clips to yoke with groove at top facing center.
NOTE: One clip should always be assembled at back of yoke
(where hook is) then equally space the remaining two.
REV: 02-SEP-2021
PERSONS:
CAUTION
For warranty information please visit: kichler.com/warranty
We're here to help
GROOVE
RUBBER CLIP
GARGANTA
ABRAZADERA
HORQUILLA
UP-LIGHTING SLEEVE
CAMISA DE
ILUMINACION
HACIA ARRIBA
WALL-WASH SLEEVE
CAMISA DE ILUMINACION
4) Connect wires to contacts on back of bulb and snap bulb into
rubber clips.
5) Guide wire through bottom of sleeve and up along the outside
of sleeve. Set yoke into sleeve adjusting as needed.
(NOTE: Hook on yoke has a short side and a long side, use
short side with yoke flat across the top for uplighting. Use long
side with yoke angled for wall washing purposes.
6) Fill gaps surrounding sleeve with soil.
7) Make wire connection to main low voltage supply wire using
supplied wire nuts following instructions on bag.
866-558-5706
Hrs: M-F 9am to 5pm EST
BULB
BOMBILLA
YOKE
IS-15088-US
