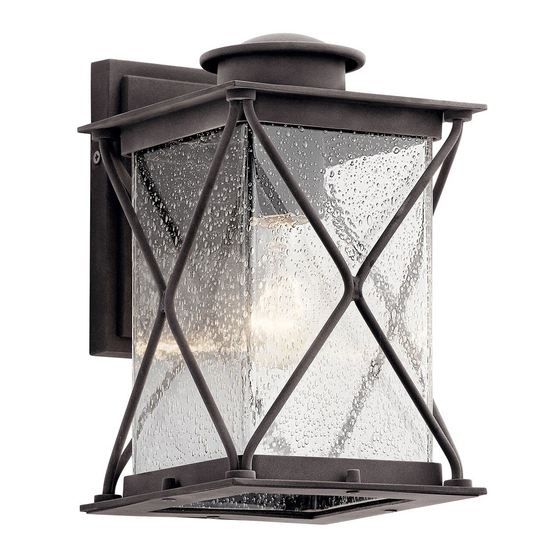

Kichler Lighting Argyle 49743WZCL18 Quick Installation Instructions

CAUTION – RISK OF SHOCK – Disconnect power at the main
circuit breaker panel or main fuse box before starting and
during the installation.
1) Attach mounting strap to outlet box. NOTE: The mounting
strap should be positioned so the tab with holes in it is
positioned on the side of the mounting strap.
2) Grounding instructions: (See Illus. A or B).
A) On fixtures where mounting strap is provided with
a hole and two raised dimples: wrap ground wire from
outlet box around green ground screw, and thread
into hole.
B) On fixtures where a cupped washer is provided:
attach ground wire from outlet box under cupped
washer and green ground screw, and thread into
mounting strap.
If fixture is provided with ground wire: connect fixture
ground wire to outlet box ground wire with wire connector.
DO NOT connect ground wire to black or white power
supply wires.

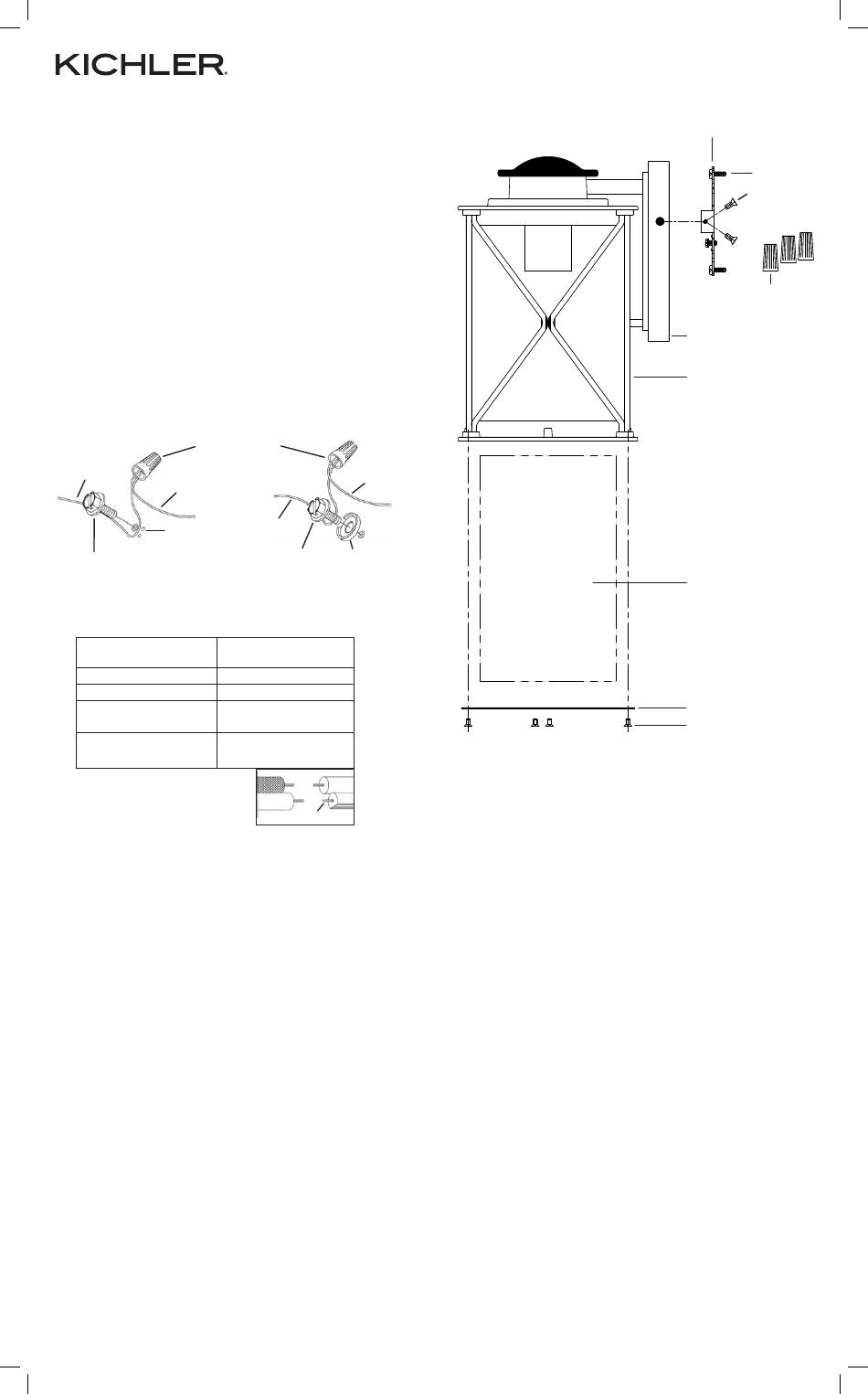

A
WIRE CONNECTOR
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
GREEN GROUND
SCREW
3) Make wire connections. Reference chart below for correct
connections and wire accordingly.
Connect Black or
Red Supply Wire to:
Black
*Parallel cord (round & smooth)
Clear, Brown, Gold or Black
without tracer
Insulated wire (other than green)
with copper conductor
*Note: When parallel wires (SPT I & SPT II)
are used: the neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth. (See illus.)
4) Push fixture to wall. Place canopy of fixture over tabs on
mounting bracket. NOTE: Be certain wires do not get
pinched between canopy and mounting strap.
5) Align holes in sides of canopy with holes in side tabs of
mounting strap. Thread screws into hole in sides of canopy.
Tighten screws to secure fixture in place.
6) Insert recommended bulb. (Not included)
7) Raise glass up to fixture. Carefully fit glass inside cage.
Pass hole in top of glass over bulb and socket inside cage.
8) Raise bottom trim up with foam pad to fixture with lip of trim
facing up. Place trim up against bottom of glass with foam
pad resting between trim and glass.
9) Thread one screw into each hole along trim and into holes in
bottom of cage. Tighten screws to secure ring in place.
INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS AND/
OR IN WET LOCATIONS.
10) Mounting surface should be clean, dry, flat and 1/4" larger
than the canopy on all sides. Any gaps between the
mounting surface and canopy exceeding 3/16" should be
corrected as required.
11) With silicone caulking compound, caulk completely around
where back of canopy meets the wall surface to prevent
water from seeping into outlet box.
Date Issued: 5/18/16
B
FIXTURE
GROUND
OUTLET BOX
GROUND
GREEN GROUND CUPPED
WASHER
SCREW
Connect
White Supply Wire to:
White
*Parallel cord (square & ridged)
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with silver conductor
Neutral Wire
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
MOUNTING STRAP
CANOPY
CAGE
GLASS
BOT TOM TRIM
SCREWS
STRAP
MOUNTING
SCREWS
MOUNTING
SCREWS
WIRE NUTS
IS-49743-US
