INSTRUCTIONS PERTAINING TO A RISK OF FIRE,OR INJURY TO

IMPORTANT SAFETY INSTRUCTIONS

Lighted lamp is HOT!
WARNING — To reduce the risk of FIRE OR INJURY TO PERSONS.
1) Turn off / unplug and allow to cool before replacing lamp.
2) Lamp gets HOT quickly! Contact only switch / plug when turning on.
3) Do not touch hot lens or cowl.
4) Do not remain in light if skin feels warm. (Light is intense, it may cause
"sunburn".)
5) Do not look directly at lighted lamp.
6) Keep lamp away from materials that may burn.
7) Use only with wattage and lamp marked on fixture.
8) Do not touch the inner glass envelope of the lamp at any time. Use a soft
cloth. Oil from skin may damage lamp.
9) Do not operate the fixture with a damaged or missing lens.

SAFETY INSTRUCTIONS

READ THIS FIRST
KEEP THESE INSTRUCTIONS
This fixture is intended for installation in accordance with the National
Electric Code (NEC) and Local code specifications. Failure to adhere
to these codes and instructions may result in serious injury and/or
property damage and will void the warranty.
1) WARNING: This fixture is not to be installed within 10 feet (3M) of a pool,
spa or fountain.
2) This fixture is to be used only with a power unit (transformer) rated a
maximum of 300 W (25 AMPS) 15 volts.
3) According to the requirements of the National Electric Code (NEC),
direct burial rated wire is to be buried a minimum of 6" [152mm]
beneath the surface of the ground.
NOTE: If additional Direct Burial wire is needed, contact your local Kichler
landscape distributor.
• 8 GA wire can be purchased in length of 250' (76 M), 15503-BK.
• 10 GA wire can be purchased in length of 250' (76 M), 15504-BK.
• 12 GA wire can be purchased in lengths of 100' (30 M), 15501-BK;
250' (76 M), 15502-BK;
(304 M),
15506-BK.
4) Fixture shall not use a tungsten halogen lamp unless the fixture is
marked for use with such lamps.
5) Wiring connections must be made with approved/listed wire connection
device(s) suitable for the application. Do not exceed manufacturers'
wiring combination specifications for size and quantity of conductors.
WHEN INSTALLING KICHLER LANDSCAPE LIGHTING (LINE VOLTAGE OR LOW VOLTAGE),
CARE SHOULD BE TAKEN TO KEEP CLEAR OF POTENTIALLY COMBUSTIBLE MATERIALS.
WHEN MAINTAINING THE FIXTURES, BE SURE TO REMOVE LEAVES, PINE NEEDLES,
GRASS CLIPPINGS, MULCH, OR ANY DEBRIS THAT HAS ACCUMULATED ON THE LIGHT
BULB, LENS, OR BODY OF THE FIXTURE.

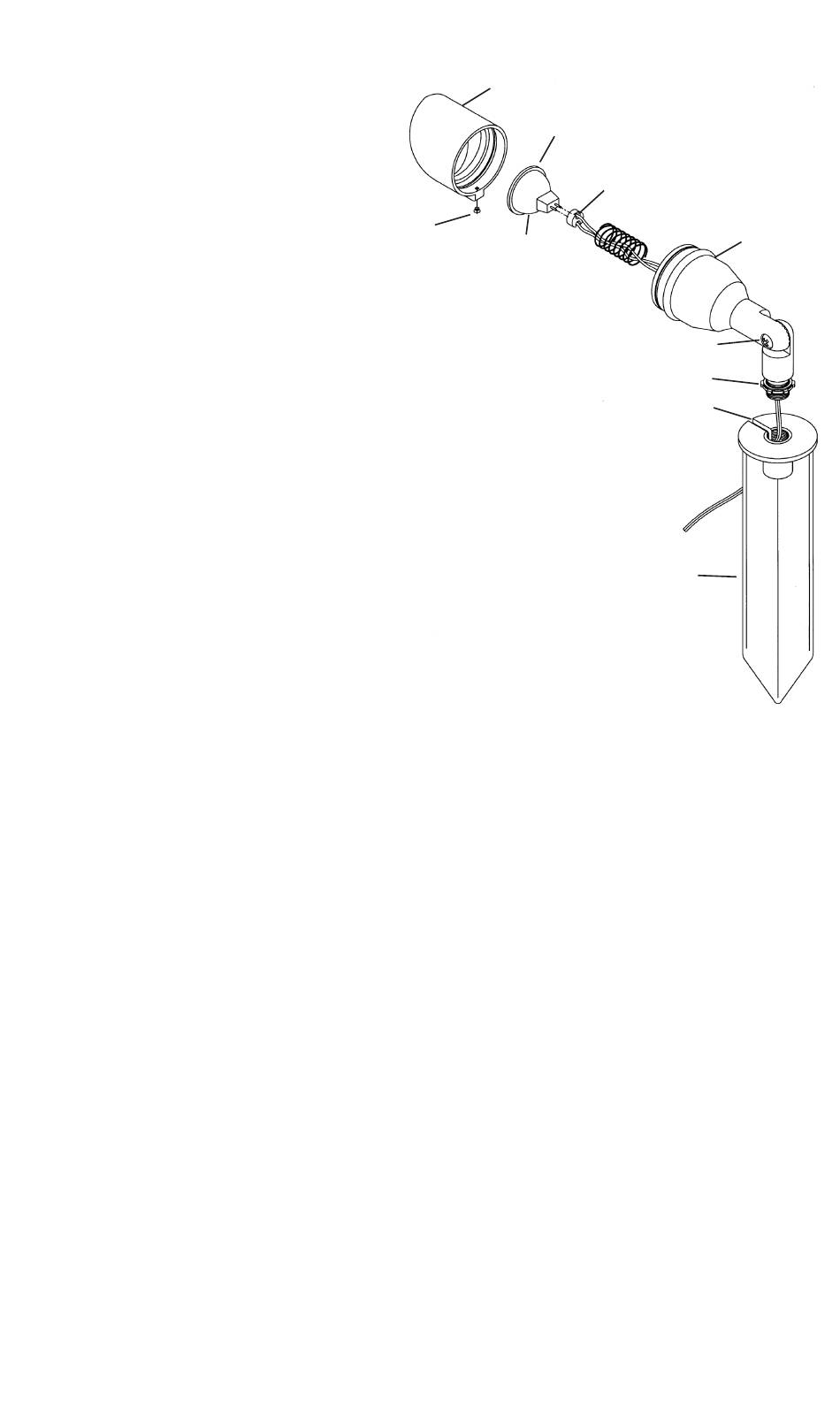

ASSEMBLY AND INSTALLATION

1) Determine desired location for mounting fixture.
2) At desired location, hammer stake (A) into ground. To avoid damage to
stake, place a board on top of stake while hammering. If ground is hard
and stake is difficult to install, make a crosscut in ground using a flat
shovel.
3) Clear away area in ground at wireway slot (B) in top of stake (A).
4) Install lamp (C) in to socket (H). NOTE: Use caution when installing.
Hold lamp by outer housing. DO NOT touch glass envelope inside. If
this happens, clean lamp with denatured alcohol and a lint free cloth.
5) Insert socket (H) with lamp into housing (G).
6) Set glass lens (D) onto housing (G).
7) Assemble cowl (E) to housing (G). Secure in place using either the
provided thumb screw (F).
8) Lay 12V cable into wireway slot (B) and screw fixture into stake (A).
When at desired direction run locknut (K) down against stake (A).
9) Adjust angle of accent light by loosening screw (J).
10) TURN OFF POWER.
11) Make wire connections directly to a low voltage transformer or connect
to a low voltage power supply cable using the connectors supplied.
Date Issued: 1/27/12
PERSONS
500' (152M), 15505-BK; and 1000'
CAUTION
For warranty information please visit: http://www.landscapelighting.com/portal/warranty_page
Para informacion de la garantia por favor visite: www.landscapelighting.com/portal/warranty_page
E
D
F
C
H
G
J
K
B
A
IS-15374-US
