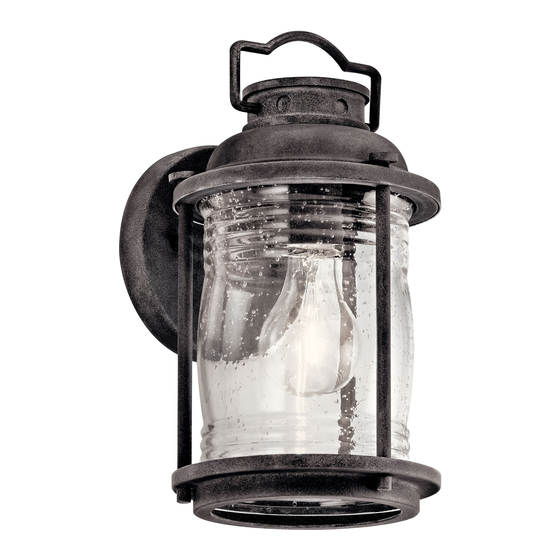

Kichler Lighting Ashland Bay 49569WZC Assembly Instructions

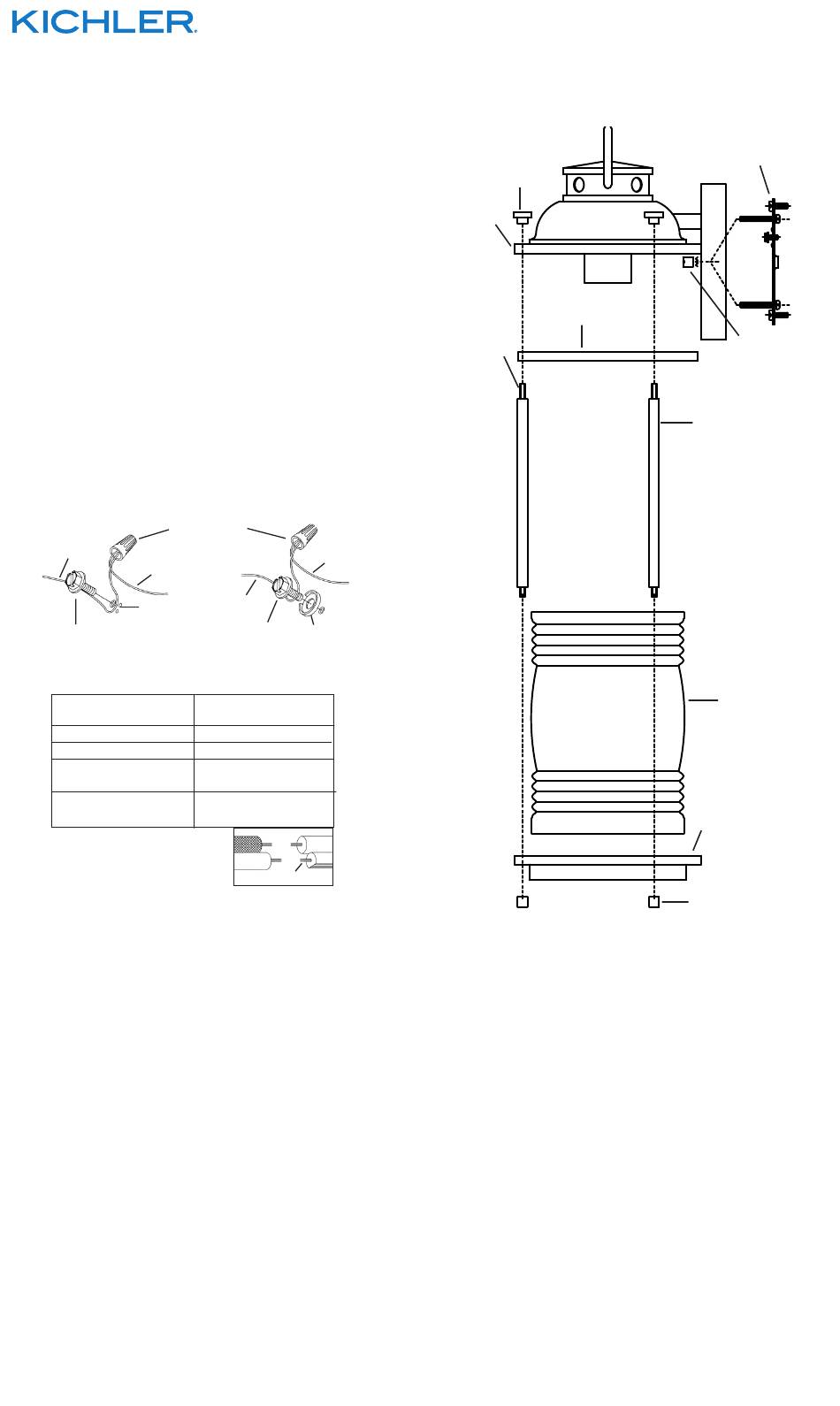

1)

TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the "OFF"
position.
b) Unscrew the fuse(s), or switch "OFF" the circuit breaker
switch(s), that control the power to the fixture or room
that you are working on.
c) Place the wall switch in the "OFF" position. If the fixture
to be replaced has a switch or pull chain, place those in
the "OFF" position.
2)

Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.
3) Attach mounting strap to outlet box. (Screws not provided).
Mounting strap can be adjusted to suit position of fixture.
4) Grounding instructions: (See Illus. A or B).
A) On fixtures where mounting strap is provided with a hole
and two raise dimples. Wrap ground wire from outlet
box around green ground screw, and thread into hole.
B) On fixtures where a cupped washer is provided. Attach
ground wire from outlet box under cupped washer and
green ground screw, and thread into mounting strap.
If fixture is provided with ground wire. Connect fixture
ground wire to outlet box ground wire with wire connector.
(Not provided.) After following the above steps. Never connect
ground wire to black or white power supply wires.
A
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
GREEN GROUND
SCREW
5) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.
Connect Black or
Red Supply Wire to:
Black
*Parallel cord (round & smooth)
Clear, Brown, Gold or Black
without tracer
Insulated wire (other than green)
with copper conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
6) Push fixture to wall, carefully passing mounting screws
through holes in fixture.
7) Thread threaded balls onto mounting screws. Tighten
threaded balls to secure fixture to wall.
8)

Insert recommended bulb.

9) Raise ring up to fixture. Fit ring inside edge of roof.
10) With rod positioned so the longer threaded stud on the rod
is on top of the rod, raise one rod up to fixture. Pass long
threaded stud on end of rod up through hole in ring and hole
in roof. Thread finial on to end of rod protruding from top of
roof.
11) Repeat step 9 for remaining rods.
12) Raise glass up to fixture. Fit glass in between rods. Pass
hole in top of glass over bulb and socket. Fit top edge of
glass inside roof.
13) Raise bottom cap up to fixture. Pass small holes along edge
of bottom cap over short threaded studs on ends of each
rod. Screw threaded caps onto threaded studs protruding
from bottom of bottom cap. Tighten threaded caps to
secure glass in place. (DO NOT over tighten.)
INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS AND/
OR IN WET LOCATIONS.
14) Mounting surface should be clean, dry, flat and 1/4" larger
that the canopy on all sides. Any gaps between the mounting
surface and canopy exceeding 3/16" should be corrected
as required.
15) With silicone caulking compound, caulk completely around
where back of canopy meets the wall surface to prevent
water from seeping into outlet box.
Date Issued: 11/28/14
B
WIRE CONNECTOR
(NOT PROVIDED)
FIXTURE
GROUND
OUTLET BOX
GROUND
GREEN GROUND CUPPED
WASHER
SCREW
Connect
White Supply Wire to:
White
*Parallel cord (square & ridged)
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with silver conductor
Neutral Wire
FINIAL
CAPUCHÓN
ROOF
TECHO
LONG THREADED
STUD
ESPÁRRAGO
ROSCADO LARGO
SEE OTHER SIDE FOR SPANISH TRANSLATIONS.
VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
MOUNTING STRAP
PLANCHA PARA
MONTAR
RING
ANILLO
ROD
VARILLA
GLASS
VIDRIO
BOTTOM CAP
TAPA INFERIOR
THREADED CAP
TAPA ROSCADA
THREADED BALL
BOLA ROSCADO
IS-49569-US
