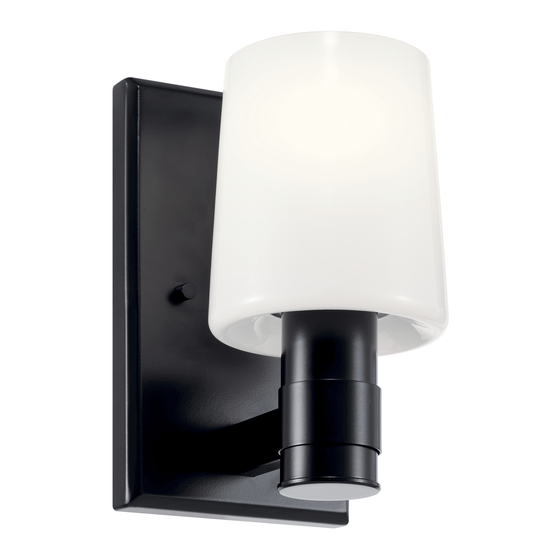

Kichler Lighting Adani 55174BK Installation Instructions

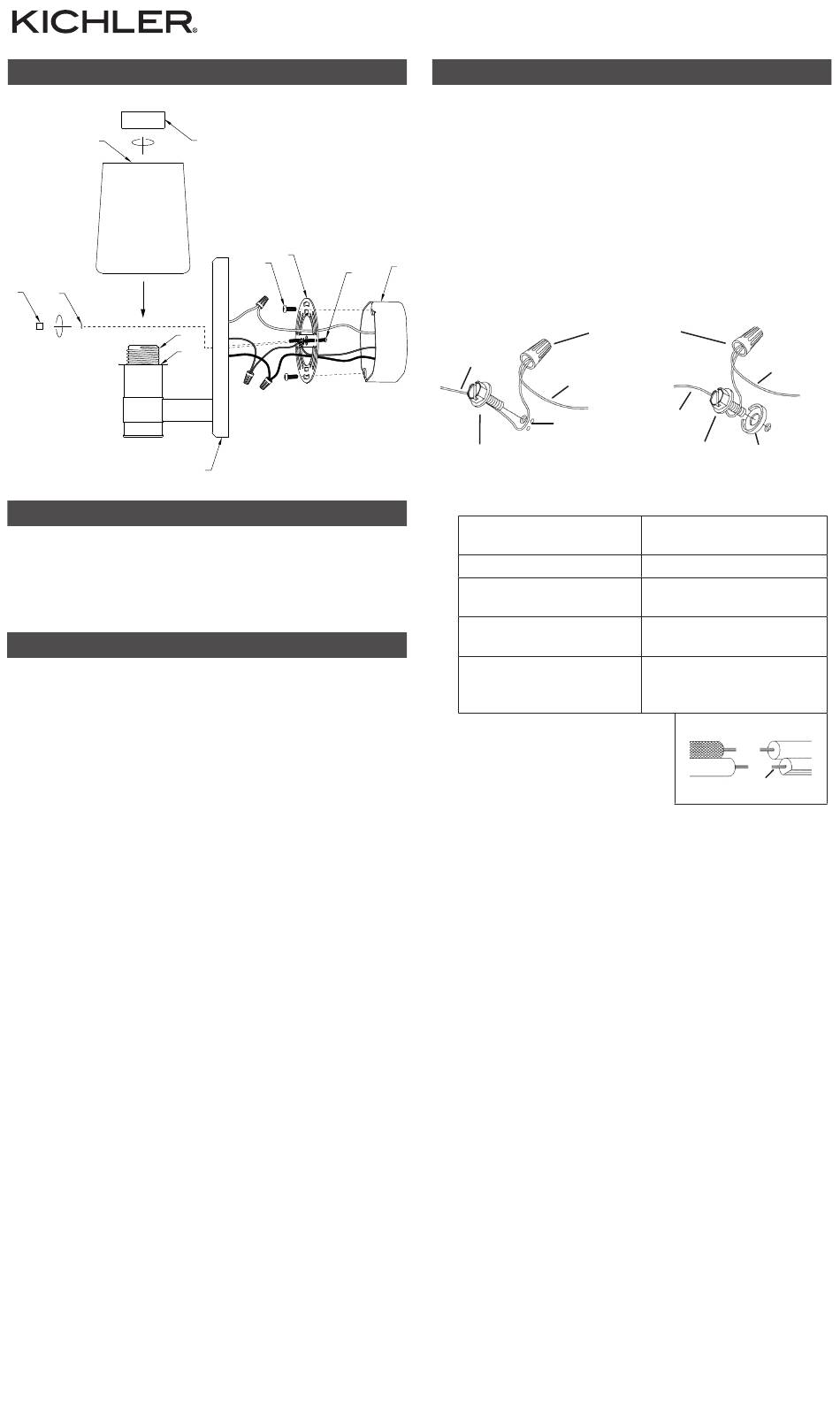

FIXTURE DIAGRAM
I
A
B
PARTS LIST
[A] Knob (2) [E] Mounting
[B] Lock Washer (2)
[C] Strap Mounting [F] Socket Ring
Screw (2) [G] Outlet Box (not
[D] Mounting Strap
CAUTIONS
CAUTION – RISK OF SHOCK:
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
WARNING:
1. This fixture is intended for installation in accordance
with the National Electrical Code (NEC) and all local
code specifications. If you are not familiar with code
requirements, installation by a certified electrician is
recommended. Failure to adhere to these codes and
instructions may result in serious injury and/or property
damage and will void the warranty.
CLEANING:
• Always be certain that electric current is turned off before
cleaning.
• Only a soft damp cloth should be used. Harsh cleaning
products may damage the finish.
REV 4-AUG-2023
F
D
C
J
K
H
[H] Canopy
[I] Glass Shade
Screw (2)
[J] Socket
[K] Socket Base
supplied)
For warranty information please visit: kichler.com/warranty
INSTALLATION INSTRUCTIONS
1. Remove lock-up knobs[A] and lock washers[B] from mounting
screws[E]. Retain knobs and lock washers.
2. Attach mounting strap[D] to outlet box[G] using the strap mounting
screws[C]. Mounting strap can be adjusted to suit position of fixture.
3. Grounding instructions: (See Illus. a or b).
a. On fixtures where mounting strap is provided with a hole and two
raised dimples, wrap ground wire from outlet box around green
ground screw, and thread into hole.
b. On fixtures where a cupped washer is provided, attach ground wire
from outlet box under cupped washer and green ground screw, and
thread into mounting strap.
G
E
If fixture is provided with ground wire, connect fixture ground wire to
outlet box ground wire with wire connector after following the above
steps. Never connect ground wire to black or white power supply wires.
a
OUTLET BOX
GROUND
GREEN GROUND
SCREW
4. Make wire connections. Reference chart below for correct connections
and wire accordingly.
Connect Black or Red
Supply Wire to:
*Parallel cord (round &
Clear, Brown, Gold or Black
without Tracer
Insulated wire (other
than green) with copper
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
5. NOTE: Fixture should be installed with socket[J] facing UP.
Push fixture to wall, carefully aligning the mounting screws protruding
from the mounting strap with holes in canopy.
NOTE: Make sure all wires are inside canopy and do not get pinched
between mounting strap and canopy or wall and canopy of fixture.
6. Slip lock washers[B] over threads protruding through holes in canopy (2
places).
7. Screw knobs[A] onto threads protruding through holes in canopy (2
places) and tighten to secure fixture to wall.
8. Carefully slip small opening in glass shade[I] over socket[J]. Make sure
glass shade base is fully seated on socket base[K].
9. While holding glass shade on socket base, secure glass shade by
screwing socket ring[F] onto threads of socket until snug against inside
surface of glass shade. DO NOT OVER-TIGHTEN.
10. Insert recommended bulb(s) (not included).
We're here to help
WIRE CONNECTOR
FIXTURE
GROUND
OUTLET BOX
DIMPLES
GROUND
GREEN GROUND
SCREW
Connect White Supply
Black
*Parallel cord (square &
smooth)
Clear, Brown, Gold or Black
Insulated wire (other
than green) with silver
conductor
866-558-5706
Hrs: M-F 9am to 5pm EST
b
FIXTURE
GROUND
CUPPED
WASHER
Wire to:
White
ridged)
with Tracer
conductor
Neutral Wire
IS-55174-US
