LEGRAND 2 810 39 Series Quick Start Manual

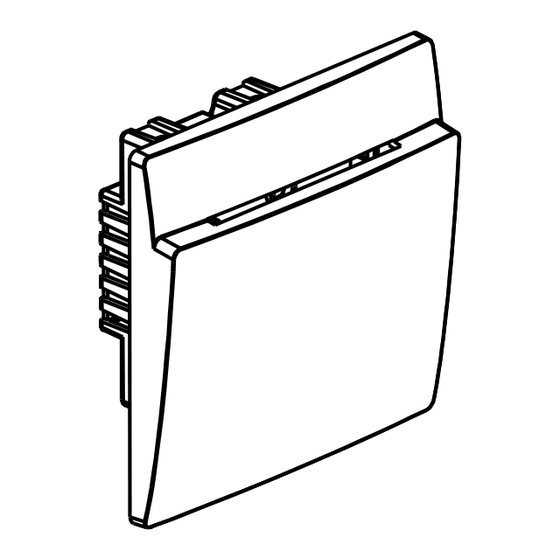

230V keycard switch
2 810 39xx xx:MW MB MG DS DB CH BA BB BC
2 810 39xx yy yy:MY SG
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect
use can lead to risk of electric shock or fire.
Before carrying out the installation, read the instructions and take account of the product's specific mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions.
All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or
repair completely cancels all liabilities and the rights to replacement and guarantees.
Use only Legrand brand accessories.
Presentation
For normal keycard switch, use normal card.
For RF keycard switch, the card should comply with ISO-14443A protocol(Mifare_UltraLight;
Mifare_One_S70;Mifare_Pro; Mifare_DESFire and so on)
Mifare_One_S50;
Size:85.5mmX54mm
Technical characteristics
1
35℃
-5℃
16A 220V
~
50Hz
Max
1800W
Incandescent lamp
Motor
Self-ballasted LED lamp
Electronic step-down converter for extra low-voltage incandescent lamps(e.g.halogen)
Iron core transformer for extra low-voltage lamps(e.g.halogen)
Inductive ballast fluorescent lamp with compensator
Fluorescent lamp
-5 ...+35
-20 ...+70
2 3
M
800VA 700VA
200-240V~
≥40mm
4 5
6
300VA 800VA
V
50/60Hz 1...4mm
400VA 800VA
2
