Parameters

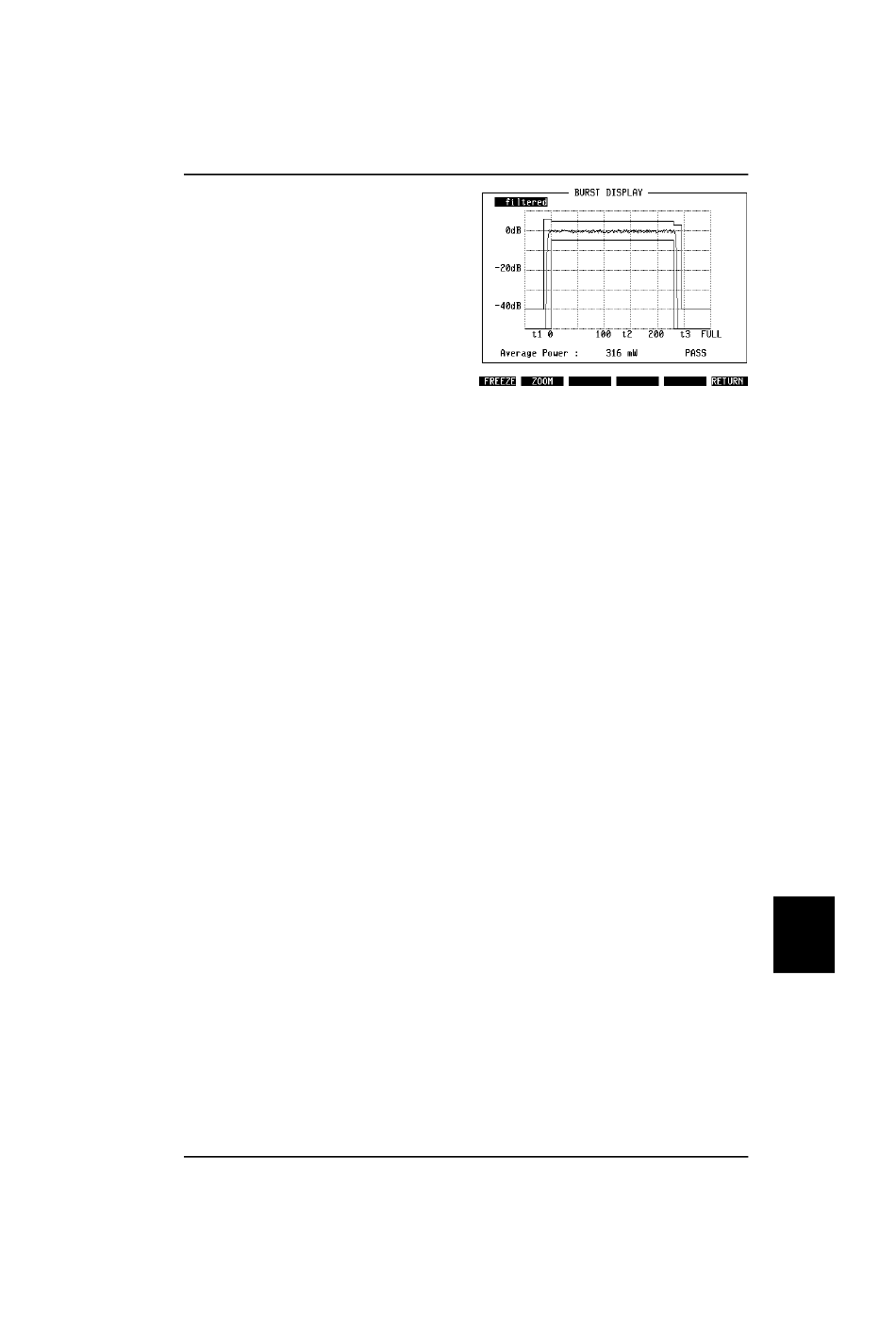

Fig. 10.5:
The figure shows where the input values take
effect. If the measured curve is within the
template, the display shows "PASS" on the
lower right side, otherwise it indicates a
"FAIL".
The different parts of the template are expressed in their time/power coordinates;
five different time sections are defined, for each section the upper and lower
power limit can be entered. The time sections are defined by the last point of the
subsequent section and the time entered on the display. Time is counted in
symbol periods (sym). All time points are relative to the start or end of T2 period,
which is the time at which the useful part of the burst (containing the relevant
information) occurs.
"
T2 may be shorter or longer, depending on the type of burst. The displayed
section is always adjusted to the correct length.
