- Page 1 Unlock MSPM0 MSPM0 team TI Information – Selective Disclosure...
- Page 2 Method 0: Make device enter BSL XDS110 • Hardware connection (based on XDS110) • Step 0: Use a DuPont cable to connect the GND, DIO, and CLK on one side of the burner to the target board. • Step 1: Power down the MCU (unplug the power cord of the burner).
- Page 3 Method 1: Force a DSSM Mass Erase XDS110 • Hardware connection (based on XDS110) • Step 1: Remove the jumper cap. • Step 2: Use a DuPont cable to connect the GND, 3.3V, DIO, CLK, and RST on one side of the burner to the target board.
- Page 4 Method 1: Force a DSSM Mass Erase • Software steps（based on CCS） – Step2: Find the ccxml file for the – Step1: Open Target Configurations corresponding project TI Information – Selective Disclosure...
- Page 5 Method 1: Force a DSSM Mass Erase • Software steps（based on CCS） – Step4: Show all cores – Step3: Click on launch TI Information – Selective Disclosure...
- Page 6 Method 1: Force a DSSM Mass Erase • Software steps（based on CCS） – Step5: Connect DAP (If not work, please choose method2) – Step6: Mass erase TI Information – Selective Disclosure...
- Page 7 Method 1: Force a DSSM Mass Erase Reset button • Software steps（based on CCS） – Step7: if see this on Console interface, press the reset button of XDS110. TI Information – Selective Disclosure...
- Page 8 Method 1: Force a DSSM Mass Erase • Software steps（based on CCS） – Step8: Console prompts, click pause, click debug, and burn the code again. TI Information – Selective Disclosure...
- Page 9 Method 1: Force a DSSM Mass Erase • Software steps（based on CCS） – Step9: If this error occurs, select Force Reset while ensuring a reset connection. Successfully connected. TI Information – Selective Disclosure...

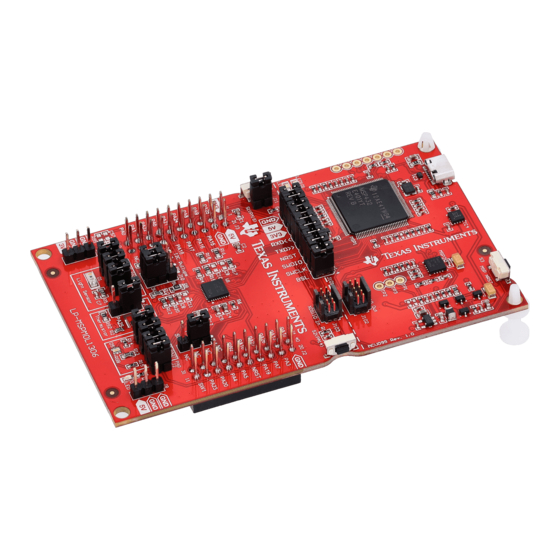

- Page 10 Method 2: BSL unlock XDS110 • Hardware connection (based on XDS110) • Step 1: Remove the jumper cap. • Step 2: Use a DuPont cable to connect the GND, 3.3V, RXD, TXD, RST, and on one side of the burner to the target board. If using launchpad, a jumper needs to be used to connect RXD and TXD.
- Page 11 Method 2: BSL unlock • Software steps（based on CCS） – Step1: Download MSPM0 SDK – Step2: Open this software TI Information – Selective Disclosure...
- Page 12 Method 2: BSL unlock • Software steps（based on CCS） – Step3: Select the corresponding software firmware based on the chip used (in the input folder) TI Information – Selective Disclosure...
- Page 13 Method 2: BSL unlock • Software steps（based on CCS） – Step4: Update XDS110 firmware TI Information – Selective Disclosure...
- Page 14 Method 2: BSL unlock • Software steps（based on CCS） – Step5: Download firmware and unlock device TI Information – Selective Disclosure...
