Summary of Contents for Sola PLANO 4D GREEN

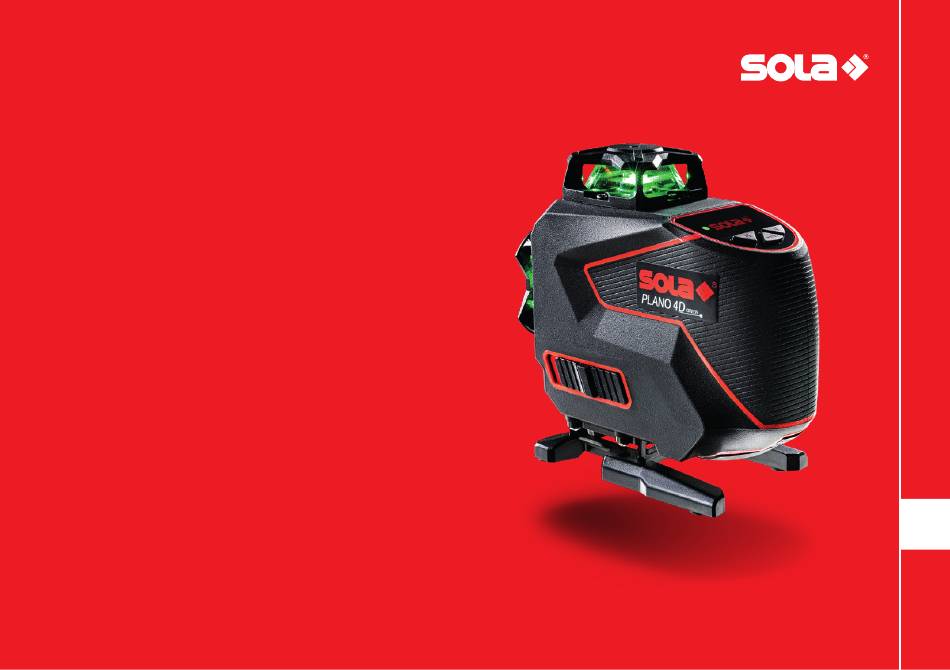

  • Page 1 Operating Instructions PLANO 4D GREEN Line laser www.sola.at...
  • Page 2 (Translation of Original Version) About this Manual Congratulations on the purchase of your new PLANO 4D GREEN! You have acquired a SOLA measurement device, which can make your work easier, faster, and more precise. To utilize the complete functionality range of this measurement device, and to ensure a safe operation, please review the following instructions: ∙...
  • Page 3: Table Of Contents

    3. Description, Device Components, Display and Operating Elements 11. Troubleshooting 4. Technical Data 12. Disposal 13. Manufacturer’s Guarantee 5. Safety Instructions 6. Laser Safety / Classification 14. EC Declaration of Conformity 15. UKCA Declaration of Conformity 7. Getting Started www.sola.at...
  • Page 4: General Information

    General Information 1. General Information 1.1 Signal Words and their Meaning 1.2 Pictograms and Other Information DANGER 1.2.1 Warning Signs Do not throw battery into the fire. For an imminent danger that could lead to serious injury or death. Warning of dangers in general Warning label on packages with WARNING Li-Ion rechargeable batteries...
  • Page 5: Delivery Contents

    Delivery Contents and Accessories 2. Delivery Contents and Accessories 2.1 PLANO 4D GREEN Delivery Contents 1 PLANO 4D GREEN line laser 4 3.6 V Li-ion rechargeable batteries (3450 mAh) 1 quick starter 1 case 1 power plug 1 charger 1 wall mount WB...
  • Page 6: Description, Device Components, Display And Operating Elements

    Display and Operating Elements 3.1 Intended Use The PLANO 4D GREEN is a line laser with which a single person is able to level and align both horizontally and vertically. The device is preferably intended for indoor use. For outdoor applications, care must be taken to ensure that the environmental conditions correspond to those indoors.

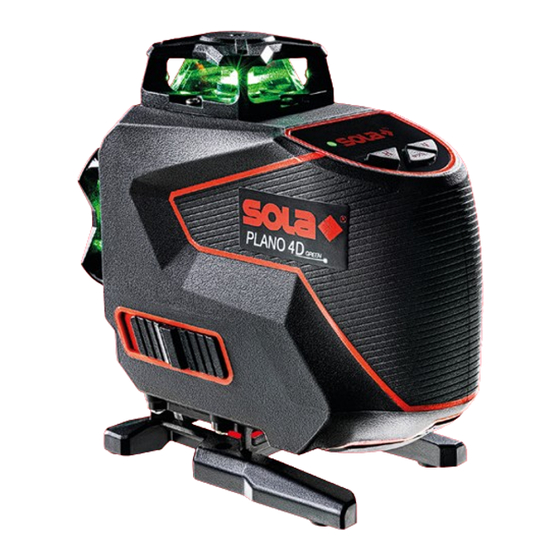

  • Page 7 Description, Device Components, Display and Operating Elements 3.2 PLANO 4D GREEN Device Components Outlet opening laser radiation On/Off switch, transport lock Keypad...
  • Page 8 Description, Device Components, Display and Operating Elements 3.2 PLANO 4D GREEN Device Components Tripod screw connection 1/4" Battery compartment cover...
  • Page 9: Technical Data

    Technical Data 4. Technical Data ∙ Laser lines r = 30 m* Working range Tripod adapter 1/4" ∙ Receiver r = 80 m* Weight without rechargeable battery613 g Max. measuring tolerance ∙ Laser lines ± 0.3 mm/m Dimension L x W x H 150 x 95 x 145 mm Protection class IP54...
  • Page 10: Safety Instructions

    ∙ The operator shall ensure that the product is not utilized any The PLANO 4D GREEN is suitable for continuous use in an further if defects become evident, and will have the product atmosphere which can be inhabited by humans.
  • Page 11 ∙ Never open the SOLA Li-Ion charger and charging station. ∙ Only use the SOLA Li-Ion charger and charging station in a dry WARNING environment and do not bring them into contact with liquids. Blinding by laser radiation can indirectly lead to serious ac- cidents, especially for people who are driving a vehicle or operat- ing machinery.
  • Page 12 Do not transport or store batteries in the pockets of garments. stations may not be used. ∙ Do not bring the battery contacts in contact with jewelry, keys, ∙ Repairs must only be performed by SOLA. or other electrically conductive objects. ∙ Do not charge the batteries. ∙...
  • Page 13 Safety Instructions 5.5.1 Interference with other Devices by PLANO 4D GREEN WARNING Although the product meets the strict requirements of the relevant If disposed of improperly third parties may possibly be seriously directives and standards, SOLA cannot completely exclude the pos- injured and the environment polluted.
  • Page 14: Laser Safety / Classification

    Laser Safety / Classification 6. Laser Safety / Classification The PLANO 4D GREEN emits two 360° horizontal lines and two 360° WARNING vertical lines. The product corresponds to laser class 2 according to Looking directly into the beam with optical aids (e.g. binoculars, DIN EN 60825-1:2014 telescopes) can be dangerous.
  • Page 15: Getting Started

    Getting Started 7. Getting Started 1. Open the battery compartment cover. 2. Insert the batteries in the adapter with the correct polarity. 3. Close the battery compartment cover (audible click of the cover). Only use 3.6 V Li-ion rechargeable batteries (3450 mAh) of type 18650! Remove the batteries if the device is not used for an extended period.
  • Page 16: Operation

    Operation 8. Operation 8.1 PLANO 4D GREEN 8.1.1 Switching On and Off ON: Slide on/off switch, transport lock to the right (switch position If the vertical laser line is not projected perpendicular to the wall or ON), pendulum unit is released. The device emits three 360°...
  • Page 17 PULSE the surface is uneven, this can lead to distorted measurement mode is active on the PLANO 4D GREEN when the MODE button is results. pressed. The laser lines flash three times to display the change.
  • Page 18 Operation 8.4 Applications 8.4.1 Horizontal Leveling 360° 8.4.2 Vertical Leveling 8.4.3 90° Angle 8.4.4 Inclination 8.4.5 Working at a Distance...
  • Page 19: Checking The Accuracy

    Set up the device approx. 3 m in front of the plumb line. ca. 3 m ∙ Switch on the PLANO 4D GREEN and project the vertical laser line onto the plumb line. If the deviation is greater than 4 mm, the device must be readjusted. Contact your dealer.
  • Page 20 1. Select two horizontal, level walls (A & B) that are approx. 10 m apart. ∙ Mount the PLANO 4D GREEN on a tripod and position it at a distance of approx. 20 cm from wall A. ∙ Mark the intersection of the vertical and horizontal laser line on wall A.
  • Page 21 Checking the Accuracy 3. Rotate the PLANO 4D GREEN by 180° and mark point on wall A. ∙ Measure vertical distance of the selected points and vertical distance of the points ∙ Mark center point of ∙ If the reference points...
  • Page 22: Maintenance, Storage, And Transportation

    Maintenance, Storage, and Transportation 10. Maintenance, Storage, and Transportation 10.1 Cleaning 10.2.2 Batteries/Rechargeable Batteries ∙ Remove the batteries and rechargeable ∙ Wipe off the dirt with a soft damp cloth. batteries from the device for storage. ∙ Check the outlet openings of the laser distance meter regularly, ∙...
  • Page 23 Maintenance, Storage, and Transportation 10.3 Transport 10.3.1 General The device may be damaged if it falls or is subjected to strong vibrations. ∙ Never transport the product loose. Always use the original packaging or an equivalent transport container. ∙ Switch off the measuring device before transporting it. ∙...
  • Page 24: Troubleshooting

    Troubleshooting 11. Troubleshooting Error Possible Cause Remedy Device switches off immediately after ∙ Battery flat ∙ Replace battery start-up ∙ Rechargeable battery flat ∙ Charge rechargeable battery Laser lines flash at one-second intervals ∙ Device outside of self-leveling range ∙ Align device horizontally Laser lines flash every 4 seconds ∙...
  • Page 25: Disposal

    Observe the country-specific disposal requirements. If disposed of negligently, unauthorized persons are able to use the product improperly. Your SOLA dealership will accept returned batteries as well as old equipment, and will ensure proper disposal. Measuring tools, accessories and packaging must be recycled in an environmentally friendly manner.
  • Page 26: Manufacturer's Guarantee

    Manufacturer’s Guarantee 13. Manufacturer’s Guarantee “The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, from such time as the device is handed over. The guarantee is limited to repairs and/or replacements at the manufacturer’s discretion.
  • Page 27: Ec Declaration Of Conformity

    Mag. Wolfgang Scheyer CEO IEC 60825-1:2014 EN 62368-1:2014 SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, 6840 Götzis, Austria, T +43 5523 53380-0, sola@sola.at, www.sola.at...
  • Page 28: Ukca Declaration Of Conformity

    Mag. Wolfgang Scheyer CEO BS EN IEC 60825-1:2014 BS EN 62368-1:2014 BS EN 62479:2010 SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, 6840 Götzis, Austria, T +43 5523 53380-0, sola@sola.at, www.sola.at...
  • Page 29 Passion for Precision SOLA-Messwerkzeuge GmbH SOLA-Messwerkzeuge GmbH & Co. KG SOLA Suisse AG Unteres Tobel 25 Heuriedweg 69 Grenzstrasse 24 6840 Götzis, Austria 88131 Lindau, Germany 9430 St. Margrethen, Switzerland T +43 5523 53380-0 T +49 8382 28585 T +41 71 740 1616 sola@sola.at, www.sola.at...
