- Page 2 METRON 30 BT Delivery Contents 1. Laser distance meter 2. Belt pouch 3. Strap 4. 2 x 1.5 V (AAA) batteries...
- Page 3 2.1 Function Buttons 2.2 Display...
-
Page 4: Table Of Contents
(original version) About this Manual Congratulations on the purchase of your new METRON 30 BT! You have acquired a SOLA measurement device, which can make your work easier, faster, and more precise. To utilize the complete functionality range of this measurement device, and to ensure a safe operation, please observe the following instructions: •... -
Page 5: General Information
1. General Information 1.1 Signal Words and their Meaning 1.2.2 Symbols Read the operating DANGER instructions before use For an imminent danger that could lead to serious injury or death. Batteries and devices may not be WARNING disposed of with household waste For a possibly dangerous situation that could lead to serious injury or death. -
Page 6: Description

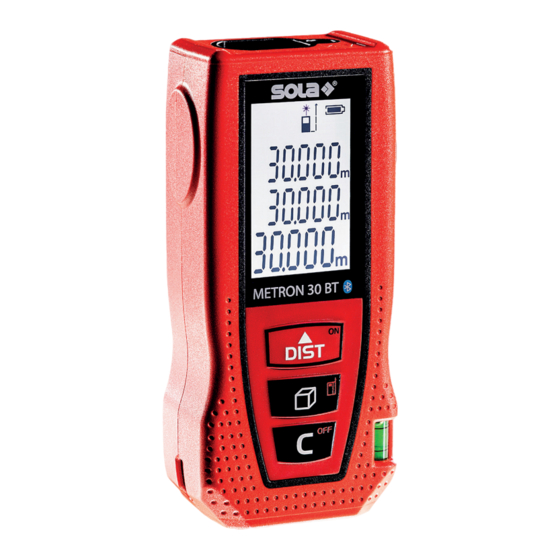

2. Description 2.1 Function Buttons 1. ON/measure button 2. Function button/measuring edge 3. OFF/delete button 2.2 Display 1. Measurements 2. Measurement display 3. Battery status 4. Measuring edge 5. Laser point display 6. Function display 7. Min./max. display 8. Unit 9. -
Page 7: Technical Data
3. Technical Data 3.1 General Measuring range 0.05–30 m* Accuracy ± 2.0 mm** Protection class IP54 Laser class Laser type 630–670 nm < 1 mW Automatic power off, laser 45 s Automatic power off, device 180 s Operating time up to 5,000 measurements*** Battery type 2 x 1.5 V (AAA) batteries Operating temperature 0–40°C Storage temperature... -
Page 8: Safety Instructions
Inadequate safeguarding at the installation site. 4.3 Utilization Limitations The METRON 30 BT is suitable for continuous use in an atmosphere which can be inhabited by humans. Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments, in... - Page 9 CAUTION A fall, longer storage, transportation, or other mechanical effects can lead to erroneous mea- surement results. Check the unit for damage before use. Do not use damaged equipment. Repairs must only be performed by SOLA. 4.4.2 Batteries DANGER Mechanical damage can cause batteries to leak, explode, or catch fire or trigger the release of toxic substances.
- Page 10 WARNING High ambient temperatures and immersion into liquids can cause batteries to leak, explode, or catch fire or trigger the release of toxic substances. Protect batteries and rechargeable batteries from mechanical damage during transport. Do not overheat batteries and rechargeable batteries or expose them to fire. Avoid the ingress of moisture into batteries and rechargeable batteries.
- Page 11 4.5.1 Interference with Other Devices by METRON 30 BT Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as field computers, personal computers, wireless devices, mobile phones, certain cables, or external batteries).
-
Page 12: Laser Safety / Classification
5. Laser Safety / Classification The METRON 30 BT emits a visible laser point. The product corresponds to laser class 2 according to DIN EN 60825-1:2007-03 Laser Class 2: When using Class 2 laser devices, the eye is protected by the blink reflex or aversion reaction in the case of random and short-term exposure. -
Page 13: Getting Started
6. Getting Started 6.1 Batteries 1. Open the battery compartment cover on the rear of the device. 2. Insert the batteries in the device with the correct polarity. 3. Close the battery compartment cover (audible click of the cover). Only use 1.5 V Mignon (AAA) batteries! Remove the batteries if you do not expect the device to be used for an extended period of time. -
Page 14: Operation
7. Operation 7.1 Getting Started 7.1.1 Switching On and Off Press the ON/measure button to turn the laser device on. Press and hold the OFF/delete button for 2 seconds to turn the laser device off. 7.1.2 Back Press the OFF/delete button once to undo the most recent action. Press the OFF/delete button twice to exit the current function and return to single measurement mode. - Page 15 7.2.3 Continuous Measurement 1. Turn on the laser device. 2. Direct the laser point at the target. 3. Press and hold the ON/measure button for 2 seconds. The laser device measures the distance and shows this on the bottom line of the display.
- Page 16 CAUTION The two points must be measured in a line and the second measurement point must be at a right angle to the measuring surface, otherwise the measurements may be incorrect. 7.3 Important Notes The laser device must not be moved during measurement. A use of a fixed support with end stop is recommended.
-
Page 17: Maintenance, Storage, And Transportation
8. Maintenance, Storage, and Transportation 8.1 Cleaning Wipe off the dirt with a soft damp cloth. Check the outlet openings of the laser distance meter regularly, and thoroughly clean them if necessary. Do not touch the glass with your fingers. Do not use aggressive cleaning agents or solvents. -
Page 18: Delivery Contents And Accessories
9.1 METRON 30 BT Delivery Contents 1 Laser distance meter 1 Belt Pouch 1 Strap 2 1.5 V (AAA) batteries 9.2 Accessories (Optional) LB RED laser visibility glasses ZS RED magnetic target plate Further information on accessories can be found at www.sola.at... -
Page 19: Troubleshooting
10. Troubleshooting Error Possible Cause Remedy Distance out of measuring range Stay within the measuring range. The reflected signal is too weak. Measure on a more reflective surface. Range outside of display. Use the off/delete button to reset to zero. Calculation error in Perform measurement again. -
Page 20: Disposal
– must not be disposed of with household waste. Dispose of the device and the accessories properly. Observe the country-specific disposal requirements. Your SOLA dealership will accept returned batteries as well as old equipment, and will ensure proper disposal. Only for EU Countries... -
Page 21: Manufacturer's Guarantee
12. Manufacturer’s Guarantee “The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from de- fects of the device for a period of two years, with the exception of batteries, from such time as the device is handed over. The guarantee is limited to repairs and/or replacements at the manufacturer’s discretion. Defects which are caused through improper handling by the purchaser or third parties, natural wear, and optical flaws that do not affect the usability of the equipment, are not covered by this guarantee. -
Page 22: Ec Declaration Of Conformity
Konformitätserklärung Declaration of Conformity Déclaration de conformité Wir / We / Nous, SOLA-Messwerkzeuge GmbH, 6840 Götzis, Austria erklären in alleiniger Verantwortung, dass das Produkt(e) declare under our sole responsibility that the Product(s) déclarons sous notre seule responsabilité que le(s) produit(s) METRON 30 BT auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt. - Page 23 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
