Sola QUBO Operating Instructions Manual

Line/point laser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QUBO
Gebrauchsanweisung
DE
Operating instructions
EN
FR
Manuel d'instructions
IT
Instruzioni d'uso
Instrucciones de uso
ES
Gebruiksaanwijzing
NL
Руководство по применению
RU
PL
Instrukcja obsługi
LT
Eksploatacijos instrukcija
Lietošanas instrukcija
LV
Uputstvo za upotrebu
SR
CZ
Návod k použití

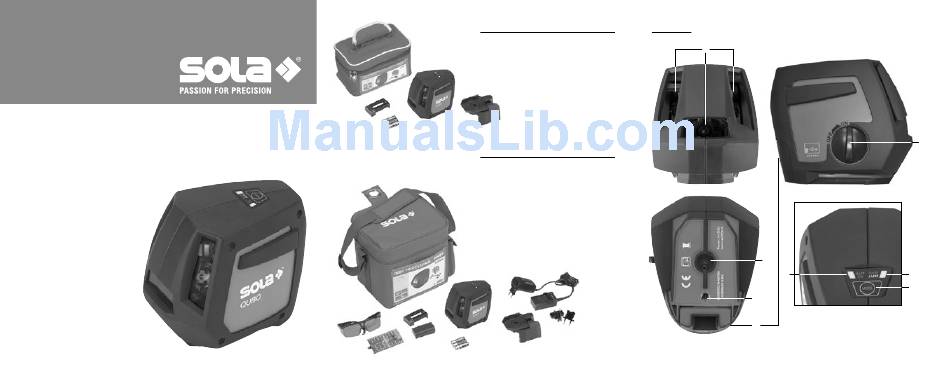

5
10.1 Lieferumfang QUBO BASIC
1 Linien- Punktlaser QUBO
2 Batterieadapter BA
3 Batterien Mignon (AA)
1
4 Trockenbauadapter TBA
5 Gerätetasche klein
2
4
3
10.2 Lieferumfang QUBO PROFESSIONAL
1 Linien- Punktlaser QUBO
2 Batterieadapter BA
3 Batterien Mignon (AA)
4 Trockenbauadapter TBA
5 SOLA-Li-Ion Akku 5.2
11
6 Li-Ion Ladestation LST Li-Ion
7 Li-Ion Ladegerät LG Li-Ion
8 Länderstecker EU/UK LS-EU / LS-UK
9 Lasersichtbrille rot LB RED
10 Magnetische Zielscheibe ZS RED
11 Gerätetasche groß
1
6
2
4
5
9
3
10
2.1.1 QUBO
1
7
8
2
8
3
5
4
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUBO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sola QUBO

Summary of Contents for Sola QUBO

  • Page 1 10.1 Lieferumfang QUBO BASIC 2.1.1 QUBO 1 Linien- Punktlaser QUBO 2 Batterieadapter BA QUBO 3 Batterien Mignon (AA) 4 Trockenbauadapter TBA 5 Gerätetasche klein Gebrauchsanweisung Operating instructions 10.2 Lieferumfang QUBO PROFESSIONAL Manuel d’instructions 1 Linien- Punktlaser QUBO 2 Batterieadapter BA Instruzioni d‘uso...
  • Page 2 2.1.3 SOLA Li-ion Akku, Ladestation und Ladegerät 2.1.2 Trockenbauadapter TBA...

  • Page 3: Table Of Contents

    (German original version) About this manual Congratulations on the purchase of your new QUBO! You have acquired a SOLA measurement instru- ment, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe operation, please observe the following instructions: •...

  • Page 4: General Information

    1. General information 1.1 Signal words and their meaning 1.2.2 Symbole DANGER Read instructions before use For an imminent danger that could lead to serious injury or death. WARNING For a possibly dangerous situation that could lead Batteries and devices may not be to serious injury or death.

  • Page 5: Description

    8. Plumb point beam window 2.1.2 Drywall adapter TBA 1 Tripod thread 5/8” and 1/4“ 2 Nd magnet for drywall tracks 3 Holding fixture for QUBO 4 Opening for plumb point 5 flexible 360° adjustment 2.1.3 SOLA Li-Ion battery, charging station and charger 1.
  • Page 6 2.2 Intended use The QUBO is a Line/Point Laser that enables a single person to level and align plumb points as well as 90 degree angles horizontally and vertically. The device is designed to be preferably used indoors. For outdoor applications, it must be ensured that the ambient conditions are similar to those indoors.

  • Page 7: Technical Data

    Levelling range (typical) ± 4° Levelling time (typical) ≤ 5 s Power supply 3 x 1.5V mignon (AA) batteries / SOLA Li-Ion battery 5.2 Operating time (at 20 °C) - Mignon (AA) batteries 12 h - SOLA Li-Ion battery 5.2...
  • Page 8 3.2 SOLA Li-Ion battery 5.2 Type Li-Ion with protective electronics Cells 2 × ICR 18650 parallel Capacity 5200 mAh Voltage 3.6 VDC Performance 28 Wh permissible temperatures Operating temperature -10 °C to +50 °C Storage temperature (ideal) -20 °C to +60 °C (ideal +20 °C to +25 °C) Charging temperature 0 °C to +45 °C (ideal +20 °C to +25 °C)

  • Page 9: Safety Instructions

    Inadequate safeguarding at the installation site. 4.3 Utilization limitations The QUBO is suitable for a continuous use in an atmosphere which can be inhabited by humans. Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments,...
  • Page 10 There is a risk of mortal danger from electric shock. Never open the SOLA Li-Ion battery charger or charging station. Only use the SOLA Li-Ion battery charger and charging station in dry places and do not bring them into contact with liquids.
  • Page 11 Do not mix old and new batteries, and do not mix batteries from different manufacturers or with a differing type designation. WARNING Using charging devices from other manufacturer‘s can damage the Li-Ion batteries. This can lead to a fire and explosion hazard. Only use original SOLA accessories.
  • Page 12 4.5.1 Interference for other devices through QUBO Although the product meets the strict requirements of the relevant directives and standards, SOLA can not completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as field computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

  • Page 13: Laser Safety / Classification

    5. LASER SAFETY / CLASSIFICATION The QUBO emits three visible laser lines and one laser point. The product corresponds to Laser Class 2 according to DIN EN 60825-1:2008. Laser Class 2: When using Class 2 laser devices the eye is protected by the eyelid closure reflex or evasive reactions in case of a random and short-term exposure.

  • Page 14: Startup

    6.1 Operation with batteries 1. Open the battery compartment cover on the rear side of the device. 2. Insert batteries with the correct polarity into the SOLA battery adapter. 3. Insert the SOLA battery adapter in the correct position. 4. Close the battery compartment (audible click of the cover).

  • Page 15: Operation

    7.1.2 PULSE mode The REC LRD0 hand-held receiver can be used to detect the laser lines at even greater distances or in unfavourable environmental conditions. The QUBO must be used in the PULSE operating mode for this. Switch on the QUBO.
  • Page 16 Make sure that the laser line is projected vertically to the wall or to the target surface. 7.2 SOLA Li-Ion battery, charging station & charger Before the initial startup, the SOLA Li-Ion battery must be fully charged. Plug the charger plug into the charging port of the Li-Ion Charger Connect the SOLA Li-Ion battery charger to a socket-outlet Insert the SOLA Li-Ion battery in the correct position.
  • Page 17 Operation indicator charger: Colour Display Mode Description yellow Standby No battery in the charger green yellow Wait cycle Battery temperature beyond the valid range green yellow Pre-charge Protective charging for deeply discharged green batteries yellow Main charge Rapid charging phase with max. Power up green to 80 % yellow...
  • Page 18 7.3 Applications 7.3.1 Setting up a drywall (with drywall adapter TBA) 7.3.2 Ceiling suspension (with hand-held receiver and universal holder UH -> optional accessory) 7.3.3 Inclination...
  • Page 19 7.3.4 Horizontal and vertical levelling (with tripod -> optional accessory) 7.3.5 Interior design with a 90° angle...

  • Page 20: Checking The Accuracy

    Attach a plumb line as close as possible possible to a (at least) 3 m high wall. Mount the QUBO onto a tripod at a height of approx. 1.2 m. Position the device approx. 3 m in front of the plumb line.
  • Page 21 20 cm ca. 10 m If the reference points are on different sides of the center point, must be subtracted from If the reference points are on the same side of the center point, must be added to Divide the results with twice the value of the room length. If the result is greater than 4 mm, the device must be readjusted.

  • Page 22: Maintenance, Storage And Transportation

    4. Rotate the device 90° clockwise. The lower plumb beam must remain on the marking and the left lateral intersecting point must be exactly aligned to the marking Mark the intersecting point of the vertical and horizontal laser lines. The horizontal distance between the marked points may only be a max.
  • Page 23 Protect from moisture and humidity. Dry wet or damp batteries before the storage, or respectively before usage. Prior to a prolonged storage charge the battery to 80 % capacity . Repeat the (see Chapter 7 / operation) procedure every 6 months. After storage, fully charge the battery before use.

  • Page 24: Scope Of Delivery And Accessories

    10. Scope of delivery and accessories 10.1 Scope of delivery QUBO Basic 10.3 ACCESSORIES (optional) 1 Line/Point Laser QUBO Receiver with holding fixture and 1 Battery adapter BA 9V 6F22 (E-Block) battery REC LRD0 3 Mignon batteries (AA) 1 Drywall adapter TBA SOLA-LI-ION Battery Set: Li-Ion battery SOLA-LI-ION AKKU 5.2...

  • Page 25: Troubleshooting

    11. Troubleshooting Error Possible cause Troubleshooting Device is switched on, display Battery empty Replace the battery «ON - BATT» does not light up Rechargeable battery empty Recharge or replace battery and there is no visible laser Battery / rechargeable battery Insert the batteries / rechar- beam.

  • Page 26: Disposal

    Perform a proper disposal of the device and the accessories. Only dispose of batteries in a discharged state. Observe the country-specific disposal requirements. Your SOLA dealership will take back batteries as well as old equipment, and will ensure a proper disposal. Only for EU countries...
  • Page 27 13. Manufacturer‘s Guarantee „The manufacturer warrants to the original purchaser who is stated on the guarantee card, the freedom from defects for the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over.

  • Page 28: Ec Conformity Declaration

    Konformitätserklärung Declaration of Conformity Déclaration de Conformité Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria erklären in alleiniger Verantwortung, dass das Produkt(e) declare under our sole responsibility that the Product(s) déclarons sous notre seule responsabilité que le(s) produit(s) QUBO, SOLA-Li-Ion Akku 5.2, LG Li-Ion...
  • Page 29 Following the provisions of Directive(s) Conformément aux dispositions de(s) Directive(s) Electromagnetic compatibility 2004 / 108 / EC Low Voltage Directive 2006 / 95 / EC SOLA-Messwerkzeuge GmbH Mag. Wolfgang Scheyer CEO SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, A-6840 Götzis, Austria Phone +43(0)5523 53380, sola@sola.at, www.sola.at...
