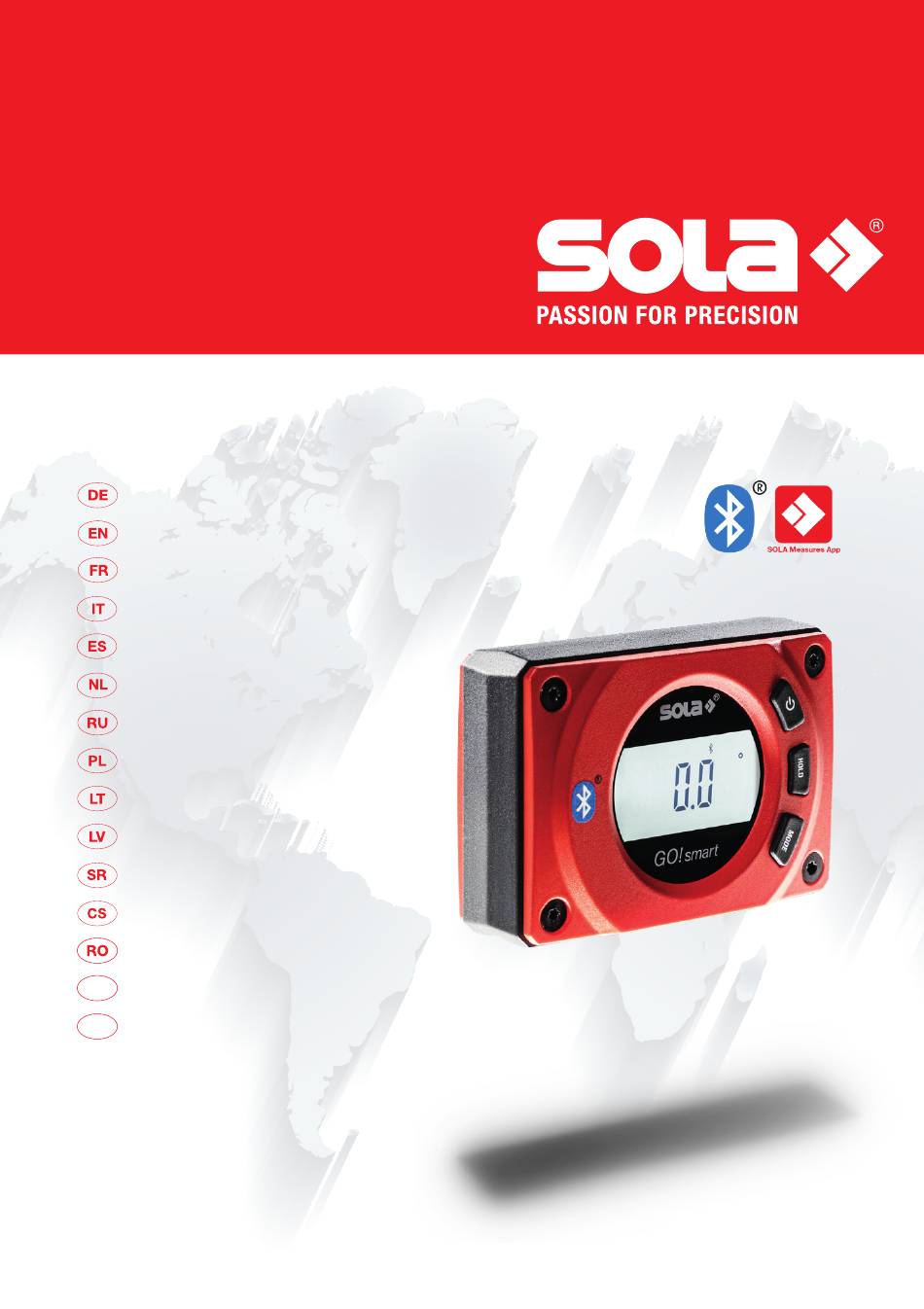

- Page 1 GO! smart Gebrauchsanweisung Operating instructions Manuel d’instructions Instruzioni d‘uso Instrucciones de uso Gebruiksaanwijzing Руководство по применению Instrukcja obsługi Eksploatacijos instrukcija Lietošanas instrukcija Uputstvo za upotrebu Návod k použití Manual de utilizare Ръководство за употреба Használati útmutató...
- Page 2 Contents included with Go! SMART 1. GO! smart 2. AA battery 3. Quick start guide 4. Belt pouch...
-
Page 3: Table Of Contents
Congratulations on the purchase of your new GO! smart! You have acquired a SOLA measuring tool, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe operation, please observe the following instructions: •... -
Page 4: General Information
1. General information 1.1 Signal words and their meaning 1.2.2 Symbols DANGER Read the operating For an imminent danger that could lead to serious manual before use injury or death. WARNING: Batteries and devices must not be For a possibly dangerous situation that could lead disposed of with household waste to serious injury or death. -
Page 5: Description

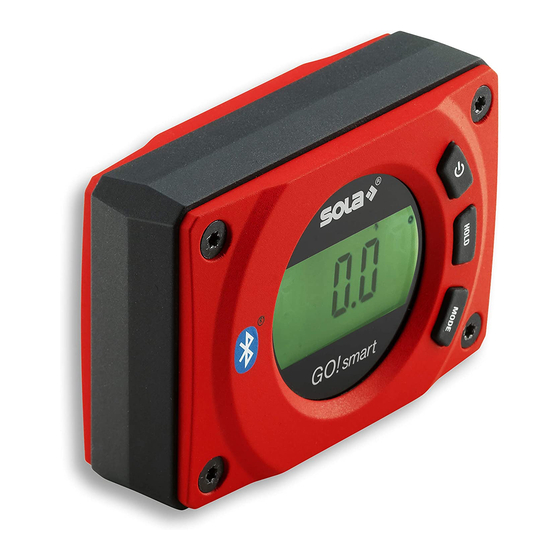

2. Description 1. On/Off switch 2. Hold function (measurement is retained by pressing once) / Toggling between ABS (absolute) and INC (incremental) 3. Mode button for switching between measured value settings (°, mm/m, %, in/ft) 4. Calibration 5. Changing the display resolution... -
Page 6: Technical Data
3. Technical data Gradient module Max. measurement tolerance -0° – 90° ± 0.05° -1° - 89° ± 0.20° Protection class IP 54 Power supply 1 x AA battery Battery life (at 20°C) 65 h (if display light switched off, approx. 80h) Permissible temperatures Operating temperature -10°C to +50°C... -
Page 7: Safety Instructions
Deliberate blinding of third parties. Inadequate safeguarding at the installation site. 4.3 Utilization limitations The Go! Smart is suitable for continuous use in an atmosphere which can be inhabited by humans. Do not operate the product in explosion-prone or corrosive environments. - Page 8 A fall, longer storage, transportation or other mechanical effects can lead to erroneous measurement results. Check the unit for damage before use. Do not use damaged equipment. Repairs must only be performed by SOLA. Before use, check the accuracy of the device (see Chapter 8 / Checking the accuracy).
- Page 9 Avoid the ingress of moisture into batteries and rechargeable batteries. Do not use damaged batteries or rechargeable batteries. Perform a proper disposal (see Chapter 12 / Disposal). WARNING A short-circuit or unintended use can cause batteries to overheat and create an injury or fire hazard.
- Page 10 4.5.1 Interference of other devices by Go! smart Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as field computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).
- Page 11 This device produces and uses radio-frequency energy and can also emit it. If it is not installed and used according to the instructions, it may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation.
- Page 12 4.8 Use of the product with Bluetooth WARNING: Electromagnetic radiation can cause disturbances in other equipment, in installations (e.g. medical ones such as pacemakers or hearing aids) and in aircraft. It can also affect humans and animals. Precautions: Although this product conforms to the most stringent standards and regulations, the possibility of harm to people and animals cannot totally excluded.
- Page 13 5. Start-up Prior to initial set-up, check whether the batteries have been installed correctly in the device. Inserting batteries 1. Open the battery compartment cover. 2. Insert battery making sure that the poles of the battery are in the right position. 3.
-
Page 14: Operation
6. Operation 6.1. Switching On/Off Press the “On/Off switch” to switch on the gradient module. Off: Press the “On/Off switch” for at least 2 seconds to switch off the gradient module. 6.2 Display If the gradient spirit level is used in the inverted position (upside down – above your head), the display screen turns too so that the measurement can be read easily. - Page 15 0.00° and 0.0°. 6.8 Bluetooth Fast and efficient data transfer of measured values can be made directly to a smartphone via Bluetooth. NOTE To pair with a smartphone, launch the SOLA measures app and connect using one of the function options.
-
Page 16: Calibration And Adjustment
7. Calibration and adjustment Calibration of gradient module Calibration stage based on position 0° Place the GO! smart with the measurement surface horizontally Briefly press buttons Display -1- appears on the screen 180° Press the button briefly, display -1- flashes for approx. 5 seconds Display -2- appears on the screen Turn GO! smart again by 180°... -
Page 17: Maintenance, Storage And Transportation
8. Maintenance, storage and transportation 8.1 Cleaning Wipe off the dirt with a soft damp cloth. Do not use aggressive cleaning agents or solvents. Do not immerse the device in water! Clean and dry wet equipment, accessories and transport containers prior to packaging them. Only pack equipment again when it is completely dry. -
Page 18: Delivery Contents And Accessories
9. Delivery contents and accessories Scope of delivery for Go! Smart GO! smart AA battery Quick start guide Belt pouch Further information on accessories can be found at www.sola.at / www.sola.us... -
Page 19: Troubleshooting
10. Troubleshooting Error Possible Cause Remedy Device is switched on, no Battery flat Replace battery display, screen not illuminated Battery inserted incorrectly Insert battery correctly Device or switch faulty Contact dealer and have device repaired Display jumps or screen Program error Remove battery, wait one “frozen”... -
Page 20: Disposal
11. Disposal If disposed of improperly third parties can possibly be seriously injured and the environment polluted. Burning plastic components generates toxic fumes which may impair health. Batteries / rechargeable batteries may explode if they are damaged or heated excessively, and thereby cause poisoning, burning, corrosion or environmental contamination. -
Page 21: Manufacturers's Warranty
12. Manufacturers’s guarantee "The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from de- fects of the device for a period of two years, with the exception of batteries, from such time as the device is handed over. The guarantee is limited to repairs and / or replacements at the manufacturer‘s discretion. Defects which are caused through improper handling by the purchaser or third parties, natural wear and optical flaws that do not affect the usability of the equipment, are not covered by this guarantee. -
Page 22: Ec Conformity Declaration
Konformitätserklärung Declaration of conformity Déclaration de conformité Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria erklären in alleiniger Verantwortung, dass das Produkt(e) declare under our sole responsibility that the Product(s) déclarons sous notre seule responsabilité que le(s) produit(s) GO! smart auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.
