Sola VECTOR 40 Operating Instructions Manual

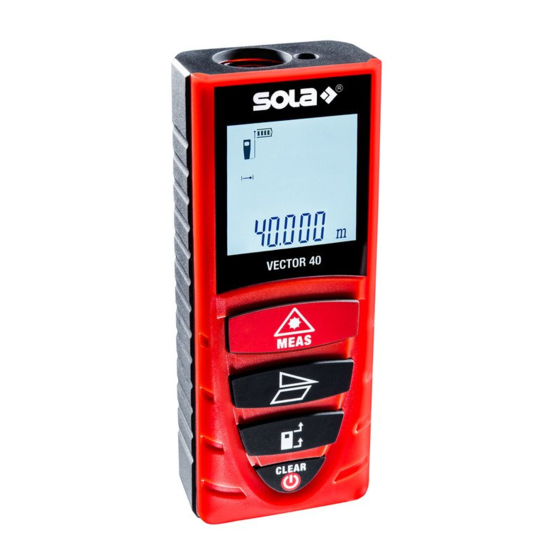

Laser distance measurement instrument
Hide thumbs Also See for VECTOR 40:
Table of Contents

Advertisement

Quick Links

Vector 40
Gebrauchsanweisung
Operating instructions
Manuel d'instructions
Instruzioni d'uso
Instrucciones de uso
Gebruiksaanwijzing
Руководство по применению
Instrukcja obsługi
Eksploatacijos instrukcija
Lietošanas instrukcija
Uputstvo za upotrebu
Návod k použití
Manual de utilizare
DE
EN
FR
IT
ES
NL
RU
PL
LT
LV
SR
CZ
RO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VECTOR 40 and is the answer not in the manual?

Questions and answers

Related Manuals for Sola VECTOR 40

Summary of Contents for Sola VECTOR 40

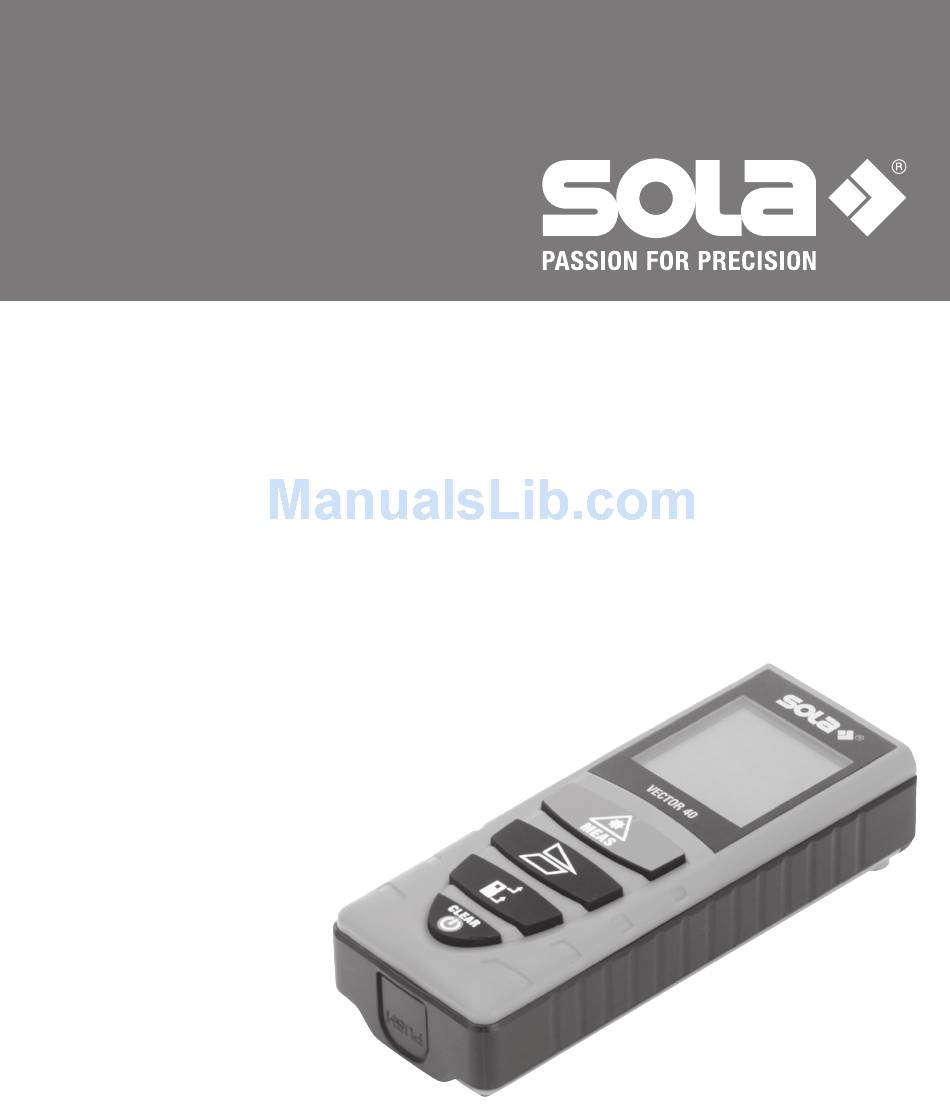

  • Page 1 Vector 40 Gebrauchsanweisung Operating instructions Manuel d’instructions Instruzioni d‘uso Instrucciones de uso Gebruiksaanwijzing Руководство по применению Instrukcja obsługi Eksploatacijos instrukcija Lietošanas instrukcija Uputstvo za upotrebu Návod k použití Manual de utilizare...
  • Page 2 Included in delivery with the Vector 40 1. Laser distance measuring instrument 2. Belt clip 3. AA batteries 4. Operating manual CD...
  • Page 3 2.1 Function Buttons 2.2 Display...

  • Page 4: Table Of Contents

    Vector 40/ Laser Distance Measurement Instrument About this manual Congratulations on the purchase of your new Vector 40. You have acquired a SOLA measuring instru- ment, which can make your work easier, faster and more precise. To utilize the complete functionality...

  • Page 5: General Information

    1. General information 1.2.2 Symbols Read instructions before use 1.1 Signal words and their meaning DANGER For an imminent danger that could lead to serious injury or death. Batteries and devices may not be WARNING disposed of with household waste For a possibly dangerous situation that could lead to serious injury or death.

  • Page 6: Description

    2. Description 1.2 Function Buttons 1 Measure button 2 Surfaces - indirect measurement 3 Reference edge 4 ON/ OFF/ Delete button 2.2 Display 1 Laser ON 2 Front reference edge 3 Rear reference edge 4 Distance- Continuous measurement 5 Settings Surfaces - Indirect measurement 10 Battery status 12 Measurement 1...

  • Page 7: Technical Data

    3. Technical Data 3.1 General Measuring range 0.2 – 40 m* Precision ± 1.5 mm** Unit of measurement Laser class Laser type 650 nm, < 1 mW Automatic shut-off of laser 30 s Automatic shut-off of device 180 s Battery life up to 5000 measurements*** Battery type 2 x AAA 1.5 V...

  • Page 8: Safety Instructions

    Inadequate safeguarding at the installation site. 4.3 Utilization limitations The Vector 40 is suitable for a continuous use in an atmosphere which can be inhabited by humans. Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments,...
  • Page 9 A fall, longer storage, transportation or other mechanical effects can lead to erroneous measurement results. Check the unit for damage before use. Do not use damaged equipment. Repairs have to be exclusively performed by SOLA 4.4.2 batteries DANGER Strong mechanical influences, can lead to a leakage, fire or explosion of the batteries or trigger the release of toxic substances.
  • Page 10 Avoid the ingress of moisture into batteries and rechargeable batteries. Do not use damaged batteries or rechargeable batteries. (see Chapter 11 / Disposal) WARNING A short-circuiting or unintended use can cause batteries to overheat and create an injury or fire hazard. Do not transport or store batteries in the pockets of garments.
  • Page 11 4.5.1 Interference of other devices by Vector 40 Although the product meets the strict requirements of the relevant directives and standards, SOLA can not completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as field computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

  • Page 12: Laser Safety / Classification

    5. LASER SAFETY / CLASSIFICATION The Vector 40 emits a visible laser point. The product corresponds to the Laser Class 2 according to DIN EN 60825-1:2007 Laser Class 2: When using Class 2 laser devices the eye is protected by the blink reflex or aversion reactions in case of a random and short-term exposure.

  • Page 13: Getting Started

    6. Getting Started 6.1 Batteries 1. Open the battery compartment cover on the back of the instrument using a screwdriver. 2. Insert the batteries into the instrument, observing the correct polarity. 3. Close the battery compartment cover (tighten the screw by hand using a screwdriver). Use only AAA batteries (1.5 V).

  • Page 14: Operation

    7. Operation 7.1 Getting Started 7.1.1 Switching the Instrument On and Off Press the ON/OFF Delete button for 2 seconds to switch the laser instrument on or off. 7.1.2 Back Press the OFF/Delete button once to undo the last action. Press the OFF/Delete button twice to exit the current function and return to the individual measurement mode.
  • Page 15 2. Direct the laser point at the target. 3. Press the ON/Measure button. As soon as an audible signal is emitted, the measurement is complete and the distance can be seen on the display. To calculate additional distances, press the Measure button again. 7.2.2 Min/Max Measurement 1.
  • Page 16 7.2.4 Area Measurement 1. Switch on the laser instrument. 2. Press the Function button until the display for area measurement appears. 3. Measure the length and then the width separately using the individual measurement method. The laser beam remains switched on between the two measurements. Once the second measurement is complete, the area is automatically calculated and shown on the bottom line of the display.
  • Page 17 WARNING The three points must be measured in line and the second measurement point must be measured at right angles to the surface being measured, otherwise incorrect measurements may be recorded.

  • Page 18: Maintenance, Storage And Transportation

    8. Maintenance, storage and transportation 8.1 Cleaning Wipe off the dirt with a soft damp cloth. Check the outlet windows of the laser regularly, and thoroughly clean them if necessary. Do not touch the glass with your fingers. Do not use aggressive cleaning agents or solvents. Do not immerse the device into water! Clean and dry wet equipment, accessories and transport containers prior to packaging them.
  • Page 19 9. Delivery contents and accessories 9.1 Delivery contents of Vector 40 1 laser distance measurement instrument 2 batteries 1 belt clip 1 operating manual CD 9.2 ACCESSORIES (optional) LB RED laser protection goggles ZS RED target Further information on accessories can be found at...

  • Page 20: Troubleshooting

    10. Troubleshooting Error Possible Cause Remedy Calculation error Check specifications. Repeat process. Overvoltage Contact supplier. Battery exhausted Replace battery. Temperature too high Allow instrument to cool to the specified temperature. Temperature too low Allow instrument to warm up to the specified temperature.

  • Page 21: Disposal

    Only dispose of batteries in a discharged state. Observe the country-specific disposal requirements. Your SOLA dealership will take back batteries as well as old equipment, and will ensure proper disposal. Only for EU countries Electric tools may not be disposed of with household waste!
  • Page 22 12. Manufacturer‘s Guarantee The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over.

  • Page 23: Ec Conformity Declaration

    Konformitätserklärung Declaration of Conformity Déclaration de Conformité Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria erklären in alleiniger Verantwortung, dass das Produkt(e) declare under our sole responsibility that the Product(s) déclarons sous notre seule responsabilité que le(s) produit(s) Vector 40 auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.
