- Page 1 Gebrauchsanweisung METRON 60 BT Laser distance meter with Bluetooth www.sola.at...
- Page 2 (original version) About this Manual Congratulations on the purchase of your new METRON 60 BT! You have acquired a SOLA measurement device, which can make your work easier, faster, and more precise. To utilize the complete functionality range of this measurement device, and to ensure a safe operation, please observe the following instructions: ∙...
-
Page 3: Table Of Contents
2. Delivery Contents and Accessories 11. Disposal 12. Manufacturer’s Guarantee 3. Description 4. Technical Data 13. EC Declaration of Conformity 5. Safety Instructions 14. UKCA Declaration of Conformity 6. Laser Safety / Classification 7. Getting Started 8. Operation 9. Maintenance, Storage, and Transportation www.sola.at... -
Page 4: General Information
General Information 1. General Information 1.1 Signal Words and their Meaning 1.2 Pictograms and Other Information DANGER 1.2.1 Warning Signs Do not heat battery above 60°C. For an imminent danger that could lead to serious injury or death. Warning of dangers in general WARNING Class 2 laser device For a possibly dangerous situation that... -
Page 5: Delivery Contents And Accessories
1 Laser distance meter 1 Belt Pouch 1 Charging cable 1 Strap 1 Quick starter 2.2 Optional accessories LB RED laser visibility glasses ZS RED magnetic target plate MST mini tripod Further information on accessories can be found at www.sola.at... -
Page 6: Description

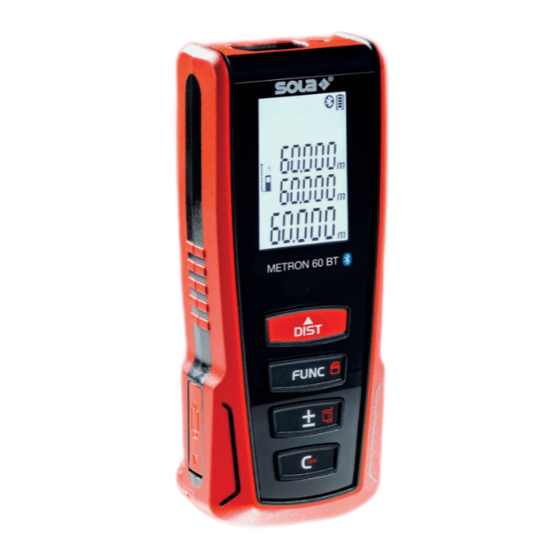

Description 3. Description 3.1 Function Buttons Display Keyboard Connection for hand strap Working face Tripod connection 1/4" USB-C port ON/Measure Functions/memory Addition/subtraction/measuring edge OFF/back... - Page 7 Description 3.2 Display Measurements Measurement display Inclination display Function display Point to point display Bluetooth Battery status Min./max. display Measuring edge Unit Memory...
- Page 8 Description 3.3 Intended Use The device is designed to measure distances. The display shows the sent back to the laser distance meter. This allows the distance to be measurement, the setting, as well as the device status. determined. The range depends on the model of the laser distance An emitted laser beam is directed towards a reflective surface and meter, the reflectivity, and the quality of the reflective surface.
-
Page 9: Technical Data
Technical Data 4. Technical Data 4.1 General Measuring range 0.05 - 60 m* Storage temperature -20 °C to +60°C Accuracy ± 1.5 mm** Tripod connection 1/4" Protection class IP54 Dimensions 119 x 46 x 28 mm Laser class Weight with batteries 100 g Laser type 635 nm <... - Page 10 Technical Data 4.2 Functions Length measurement Area measurement Volume measurement Min./max. measurement Continuous measurement Indirect 3-point measurement Indirect 2-point measurement Addition/subtraction Measurement memory...
-
Page 11: Safety Instructions
The operator shall ensure that the product is not utilized any ∙ The METRON 60 BT is suitable for continuous use in an further if defects become evident, and they will have the product atmosphere which can be inhabited by humans. - Page 12 Check the unit for damage before use. Do not use damaged equipment. 5.4 Usage Hazards ∙ Repairs must only be performed by SOLA. 5.4.1 General 5.4.2 Batteries WARNING Missing or incomplete instructions may result in improper or Mechanical damage can cause batteries to leak, explode, incorrect use.
- Page 13 Safety Instructions ∙ Avoid the ingress of moisture into batteries and WARNING rechargeable batteries. If disposed of improperly third parties may possibly be seriously ∙ Do not use damaged batteries or rechargeable batteries. injured and the environment polluted. Perform a proper disposal (see Chapter 12 / Disposal). Burning plastic components generates toxic fumes which may impair health.
- Page 14 Safety Instructions 5.5 Electromagnetic Compatibility (EMC) 5.5.2 Interference with the METRON 60 BT by Other Devices ∙ Although the product meets the strict requirements of the relevant ∙ The electromagnetic compatibility is the ability of the product to directives and standards, SOLA cannot entirely exclude the...
-
Page 15: Laser Safety / Classification
Laser Safety / Classification 6. Laser Safety / Classification The METRON 60 BT emits a visible laser point. WARNING The product corresponds to laser class 2 according to Looking directly into the beam with optical aids (e.g. binoculars, DIN EN 60825-1:2007-03 telescopes) can be dangerous. -
Page 16: Getting Started
Getting Started 7. Getting Started 7.1 Batteries The device has a 3.7 V 850 mAh Li-Ion battery. Fully charge the bat- tery before first use. The battery charge status is shown on the dis- play. Charge the batteries when the symbol is permanently flashing on the screen. -
Page 17: Operation
Operation 8. Operation 8.1 Switching On and Off 8.2 Applications 8.1.1 Switching ON and OFF 8.2.1 Single Measurement Press the ON/measure button to turn the laser device on. Turn on the laser device. Press and hold the OFF/Back button for 2 seconds to turn Direct the laser point at the target. - Page 18 Operation 8.2.3 Continuous Measurement Measure the length, width, and height, just like for a Turn on the laser device. single measurement. The laser beam remains switched on between Direct the laser point at the target. the three measurements. Press and hold the ON/measure button for 2 seconds.
- Page 19 Operation 8.2.7 Indirect 3-point Measurement 8.2.9 Subtraction Turn on the laser device Turn on the laser device. Press the function/measure button until Direct the laser point at the target. the indirect 2-point measurement icon Perform a single measurement. is shown in the display. Press the addition/subtraction/measuring edge button twice Measure the 3 measurement points in to subtract the next individual measurement (- symbol...
- Page 20 Operation 8.5 Important Notes The laser device must not be moved during measurement. A use of a fixed support with end stop is recommended. Do not cover the laser emission field and the receiving area during measurement. Incorrect measurements are possible depending on the measuring surface.
-
Page 21: Maintenance, Storage, And Transportation
Maintenance, Storage, and Transportation 9. Maintenance, Storage, and Transportation 9.1 Cleaning 9.3 Transport ∙ Wipe off the dirt with a soft damp cloth. ∙ The device may be damaged if it falls or is subjected to ∙ Check the outlet openings of the laser distance meter regularly, strong vibrations. -
Page 22: Troubleshooting
Troubleshooting 10. Troubleshooting Error Possible Cause Remedy Distance out of measuring range ∙ Stay within the measuring range. The reflected signal is too weak. ∙ Measure on a more reflective surface. Range outside of display. ∙ Use the OFF/back button to reset to zero. Calculation error in Pythagoras. -
Page 23: Disposal
Disposal 11. Disposal ∙ If disposed of improperly third parties may possibly be seriously Your SOLA dealership will accept returned batteries as well as injured and the environment polluted. old equipment, and will ensure proper disposal. ∙ Burning plastic components generates toxic fumes which may impair health. -
Page 24: Manufacturer's Guarantee
Manufacturer’s Guarantee 12. Manufacturer’s Guarantee “The manufacturer warrants to the original purchaser stated on the The duration of the guarantee will not be extended through guarantee card, freedom from defects of the device for a period of repair or spare parts work which is carried out within the scope two years, with the exception of batteries, from such time as the of the guarantee. -
Page 25: Ec Declaration Of Conformity
EN IEC 61326-1: 2021 EN IEC 61326-2-2: 2021 Mag. Wolfgang Scheyer CEO ETSI EN 301 489-1 V2.2.3: 2019 ETSI EN 301 489-17 V3.2.4: 2020 SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, 6840 Götzis, Austria, T +43 5523 53380-0, sola@sola.at, www.sola.at... -
Page 26: Ukca Declaration Of Conformity
BS EN IEC 61326-1: 2021 BS EN IEC 61326-2-2: 2021 ETSI EN 301 489-1 V2.2.3: 2019 Mag. Wolfgang Scheyer CEO SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, 6840 Götzis, Austria, T +43 5523 53380-0, sola@sola.at, www.sola.at... - Page 27 Passion for Precision SOLA-Messwerkzeuge GmbH SOLA-Messwerkzeuge GmbH & Co. KG SOLA Suisse AG Unteres Tobel 25 Heuriedweg 69 Grenzstrasse 24 6840 Götzis, Austria 88131 Lindau, Germany 9430 St. Margrethen, Switzerland T +43 5523 53380-0 T +49 8382 28585 T +41 71 740 1616 sola@sola.at, www.sola.at...
