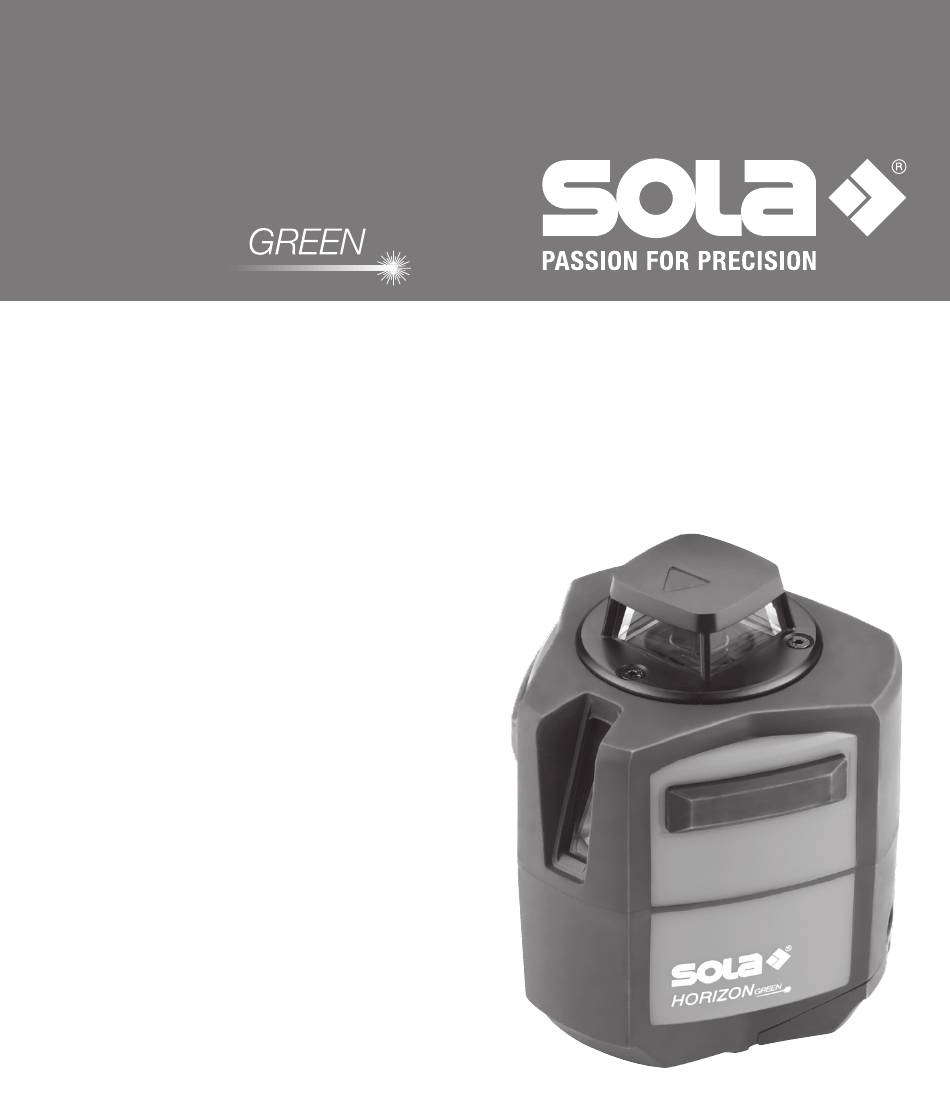

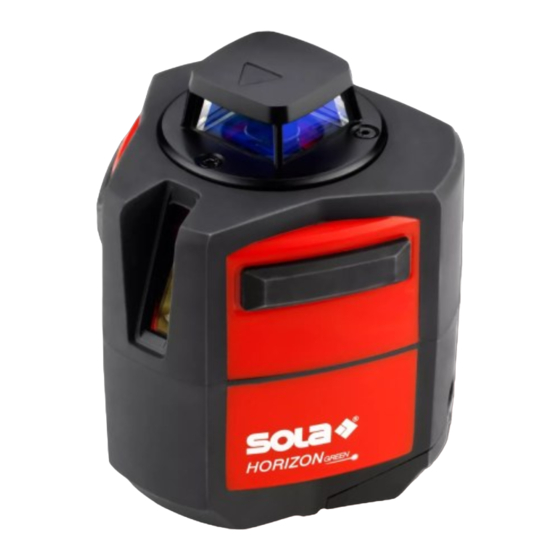

  • Page 1 HORIZON Gebrauchsanweisung Operating instructions Manuel d’instructions Instruzioni d‘uso Instrucciones de uso Gebruiksaanwijzing Руководство по применению Instrukcja obsługi Eksploatacijos instrukcija Lietošanas instrukcija Uputstvo za upotrebu Návod k použití Manual de utilizare Ръководство за употреба Használati útmutató...
  • Page 2 Scope of delivery for HORIZON GREEN BASIC 1. HORIZON line laser 2. Battery adapter BA 3. AA batteries 4. Operating manual CD 5. Wall bracket WH 6. Case...
  • Page 3 Scope of delivery for HORIZON GREEN PROFESSIONAL 1. HORIZON line laser 2. Battery adapter BA 3. AA batteries 4. Operating manual CD 5. Wall bracket WH 6. Compact tripod FST 7. Li-ion battery set 5.2 8. Case...
  • Page 4 HORIZON GREEN 1. Laser beam output aperture 2. On/off switch, transport lock 3. Tripod adapter ¼“ and 5/8“ 4. Battery compartment cover...
  • Page 5 SOLA Li-ion battery, charging station & charger 1. Li-ion battery 5.2 2. Battery contacts 3. Technical data/marks of conformity 4. Li-ion charging station 5. Li-ion charger 6. Charging cable 7. Operating display 8. Connection socket for country-specific plug 9. Release button for country-specific plug...

  • Page 6: Table Of Contents

    About this manual Congratulations on the purchase of your new HORIZON GREEN! You have acquired a SOLA measure- ment instrument, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe operation, please observe the following instructions: •...

  • Page 7: General Information

    1. General information 1.1 Signal words and their meaning 1.2.2 Symbole DANGER Read instructions before use For an imminent danger that could lead to serious injury or death. WARNING For a possibly dangerous situation that could lead Batteries and devices must not be to serious injury or death.

  • Page 8: Description

    1. Laser beam output aperture 2. On/off switch, transport lock 3. Tripod adapter ¼" and 5/8" 4. Battery compartment cover 2.1.2 SOLA Li-ion battery, charging station & charger 1. Li-ion battery 5.2 2. Battery contacts 3. Technical data/marks of conformity 4.

  • Page 9: Technical Data

    Dimensions H x W x H 110 x 100 x 130 mm *... depending on the ambient conditions in the workplace. Subject to modifications (drawings, descriptions and technical data). 3.2 SOLA Li-Ion battery 5.2 (optional) Type Li-Ion with circuit protection...
  • Page 10 Weight 100 g Dimensions 71 x 39 x 22 mm 3.3 SOLA charger LG Li-ion (optional) Nominal input voltage 100 - 240 V AC / 50 - 60 Hz Nominal input current 0.4 A @ 100 V AC - 0.2 A @ 240 V AC under maximum load...

  • Page 11: Safety Instructions

    4. Safety instructions 4.1 AREA OF RESPONSIBILITY 4.1.1 Manufacturer SOLA is responsible for the safe delivery condition of the product, including the operating manual and the original accessories. 4.1.2 Operator The operator is responsible for using the product as intended, the deployment of personnel, their training and the operational safety of the product.
  • Page 12 There is a risk of mortal danger from electric shock. Never open the SOLA Li-Ion battery charger or charging station. Only use the SOLA Li-Ion battery charger and charging station in dry places and do not bring them into contact with liquids.
  • Page 13 Batteries and rechargeable batteries may not be opened or exposed to mechanical loads. Damaged batteries, chargers and charging stations may not be used. Repairs have to be exclusively performed by SOLA. WARNING High ambient temperatures and immersion into liquids can cause a leakage, fire or explosion of the batteries or trigger the release of toxic substances.
  • Page 14 4.5.1 Interference of other devices by HORIZON GREEN Although the product meets the strict requirements of the relevant directives and standards, SOLA can not completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as field computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

  • Page 15: Laser Safety/Classification

    5. LASER SAFETY/CLASSIFICATION The HORIZON GREEN emits a horizontal 360° laser line and a vertical laser line. The product corresponds to Laser class 2M according to DIN EN 60825-1:2014 Laser class 2M: With class 2M laser devices, eyes are protected by the the blink reflex and/or the aversion responses in the event that a person accidentally looks at the laser for a short time.

  • Page 16: Startup

    6. Start-up 6.1 Operation with batteries 1. Open the battery compartment cover. 2. Insert batteries into the SOLA battery adapter, making sure that the polarity of the batteries is correct 3. Insert the SOLA battery adapter in the correct position.

  • Page 17: Operation

    Before start-up, allow the device to acclimatise to the ambient conditions. The laser lines will flash every 30 seconds when the battery capacity falls below 10%. Charge the battery in good time or prepare additional batteries or SOLA Li-ion replacement batteries. 7.1.2 PULSE-Mode In order to be able to detect the laser lines at even greater distances or under adverse ambient con- ditions, the optional receiver REC LGD0 can be used.
  • Page 18 Plug the charger plug into the charging port of the Li-Ion Charger Connect the SOLA Li-ion charger to a socket. Insert the SOLA Li-ion battery in the charging station in the correct position. The charging process takes between 3 and 5 hours, depending on the state of charge and environmental conditions.
  • Page 19 Charger operating display: Colour Display Mode Description yellow Standby No battery in the charger green yellow Wait cycle Battery temperature beyond the valid range green yellow Pre-charge Protective charging for deeply discharged green batteries yellow Main charge Rapid charging phase with max. Power up green to 80 % yellow...
  • Page 20 7.3 Applications 7.3.1 Horizontal levelling 360° 7.3.2 Vertical levelling 7.3.3 90° angle...
  • Page 21 7.3.4 Inclination 7.3.5 Working at distances...

  • Page 22: Checking The Accuracy

    8. Checking the accuracy Check the accuracy of the SOLA HORIZON GREEN before each measurement. Before starting the check, let the device acclimatise to the environmental conditions. 8.1 Checking the accuracy of the vertical line Attach a plumb line as close as possible possible to a (at least) 3 m high wall.
  • Page 23 20 cm ca. 10 m Divide the results with twice the value of the room length. If the result is greater than 4 mm, the device must be readjusted. For this, please consult your dealer.

  • Page 24: Maintenance, Storage And Transportation

    9. Maintenance, storage and transportation 9.1 Cleaning Wipe off any dirt with a soft damp cloth. Check the outlet openings of the laser regularly, and thoroughly clean them if necessary. Do not touch the glass with your fingers. Do not use aggressive cleaning agents or solvents. Do not immerse the device into water! Clean and dry wet equipment, accessories and transport containers prior to packaging them.
  • Page 25 9.3.2 Batteries / rechargeable batteries When transporting or shipping batteries, the operator is responsible for complying with the applicable national and international laws and regulations. Before shipping, remove the batteries from the device. Li-ion batteries fall under the jurisdiction governing hazardous goods, but they may be transported on the road by their operator without further stipulations.

  • Page 26: Scope Of Delivery And Accessories

    10. Scope of delivery and accessories 10.1 Scope of delivery for HORIZON GREEN BASIC 1 HORIZON GREEN line laser 1 Battery adapter BA 3 AA batteries 1 operating manual CD 1 Wall bracket WH 1 case 10.2 Scope of delivery for HORIZON GREEN PROFESSIONAL...
  • Page 27 Flexible wall bracket FWH Magnetic bracket MH Inclination wedge NK1 Thread adapter set GA-SET Battery adapter BA Motor vehicle adapter CC Laser goggles, green LB GREEN Magnetic target ZS GREEN Further information regarding the accessories can be found at www.sola.at...

  • Page 28: Troubleshooting

    11. Troubleshooting Errors Possible cause Rectification The device turns itself off imme- Battery flat Replace battery diately after start-up Charge battery Laser lines flash at one-second Device not within the self- Align device horizontally intervals levelling range Laser lines flash every 4 Device is in manual inclination Turn the on/off switch, seconds...

  • Page 29: Disposal

    Only dispose of batteries in a discharged state. Observe the country-specific disposal requirements. Your SOLA dealership will take back batteries as well as old equipment, and will ensure proper disposal. Only for EU countries Electric tools must not be disposed of with household waste!
  • Page 30 13. Manufacturer‘s Guarantee The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over.

  • Page 31: Ec Conformity Declaration

    Konformitätserklärung Declaration of Conformity Déclaration de Conformité Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria erklären in alleiniger Verantwortung, dass das Produkt(e) declare under our sole responsibility that the Product(s) déclarons sous notre seule responsabilité que le(s) produit(s) HORIZON GREEN auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.
  • Page 32 Gemäss den Bestimmungen der Richtlinie(n) Following the provisions of Directive(s) Conformément aux dispositions de(s) Directive(s) Electromagnetic compatibility 2014/30/EU Low Voltage Directive 2014/35/EU SOLA-Messwerkzeuge GmbH Mag. Wolfgang Scheyer CEO SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, A-6840 Götzis, Austria Phone +43(0)5523 53380, sola@sola.at, www.sola.at...

This manual is also suitable for:
