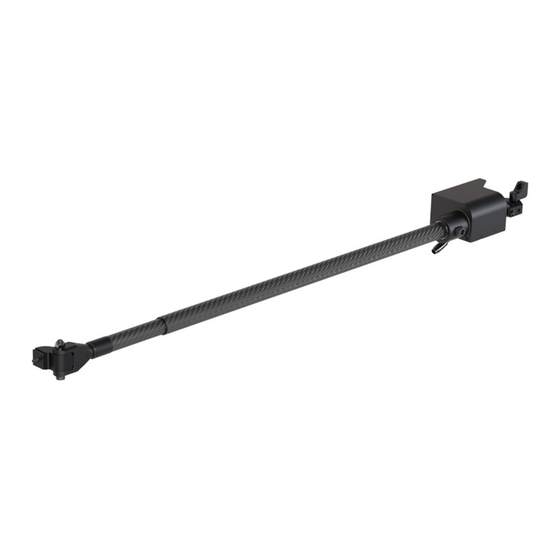

Atlas Copco SMC-100-1600-POSI-LA Product Instructions

Torque arm
Hide thumbs Also See for SMC-100-1600-POSI-LA:
Table of Contents

Advertisement

Quick Links

Download this manual
Printed Matter No. 9836 7772 01
Publication Date 2022-10-06
Valid from Serial No. A4790001
Valid to Serial No. A4729999
SMC-100-1600-POSI-LA
(100 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
SMC-100-1600-POSI-LA
4390152279
WARNING
Product Instructions
Torque Arm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMC-100-1600-POSI-LA and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Copco SMC-100-1600-POSI-LA

Summary of Contents for Atlas Copco SMC-100-1600-POSI-LA

  • Page 1 SMC-100-1600-POSI-LA Printed Matter No. 9836 7772 01 Torque Arm Publication Date 2022-10-06 Valid from Serial No. A4790001 Product Instructions Valid to Serial No. A4729999 SMC-100-1600-POSI-LA 4390152279 (100 Nm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

  • Page 2: Table Of Contents

    Working area when mounted on a ceiling .......... 9 Installing the SMC torque arms in trolley and rail systems.... 9 Operation ....................... 11 Operating the torque arm................ 11 Service ........................ 12 Lubrication Instructions................... 12 Lubrication ................... 12 Recycling ....................... 13 Environmental Regulations................ 13 © Atlas Copco Industrial Technique AB - 9836 7772 01...

  • Page 3: Product Information

    ■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions.

  • Page 4: Servaid

    For further Technical Information, please contact your local Atlas Copco representative. Safety Data Sheets MSDS/SDS The Safety Data Sheets describe the chemical products sold by Atlas Copco. Please consult the Atlas Copco website for more information www.atlascopco.com/sds. Country of Origin For the Country of Origin, please refer to the information on the product label.

  • Page 5: Technical Product Data

    SMC-100-1600-POSI-LA Product Information Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. © Atlas Copco Industrial Technique AB - 9836 7772 01...

  • Page 6: Installation

    Make sure that the fixation point can handle the weight and the torque of the chosen torque arm. ■ Attach the safety wire (see Spare Parts) to a second point that does not limit the working area. © Atlas Copco Industrial Technique AB - 9836 7772 01...

  • Page 7: Working Area When Mounted On A Bench

    Attach the tool holder to the arm. Install the set screw on the tool holder and tighten it to 2.5 Nm. Attach a balancer to the torque arm by using Atlas Copco balancer adapter kit and hook it up with the tool.
  • Page 8 Adjust the wire stop of the balancer so that the torque arm cannot be fully retracted. Secure all the screws with the set screws (Refer Spare Parts list for more details). © Atlas Copco Industrial Technique AB - 9836 7772 01...

  • Page 9: Working Area When Mounted On A Ceiling

    Installing the SMC torque arms in trolley and rail systems Do not modify the torque arm or the torque arm attachment. The installed torque arm must be able to swivel in all directions. © Atlas Copco Industrial Technique AB - 9836 7772 01...
  • Page 10 Installation SMC-100-1600-POSI-LA © Atlas Copco Industrial Technique AB - 9836 7772 01...

  • Page 11: Operation

    Before operating, lock the torque arm attachment in a fixed position. ► NOTICE Risk of damage A hit against the rail ends will cause damage to the torque arm. Do not use excessive force on the torque arm. ► © Atlas Copco Industrial Technique AB - 9836 7772 01...

  • Page 12: Service

    We recommend that the bench stand pole is lubricated with a couple of drops of oil twice a year. ■ The bushings on the arms does not need to be lubricated. © Atlas Copco Industrial Technique AB - 9836 7772 01...

  • Page 13: Recycling

    When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9836 7772 01...
  • Page 16 Original instructions © Copyright 2022, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
