Printed Matter No. 9839 1431 01
Publication Date 2018-11-01
Valid from Serial No. A0780001

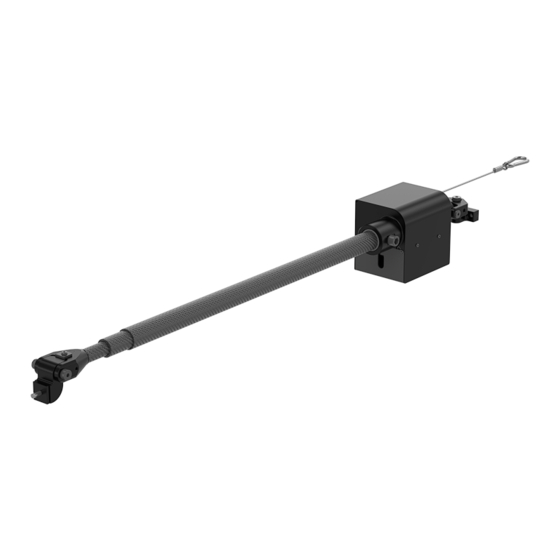

SMC 100 2100 POSI 3
(100 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
SMC 100 2100 POSI 3
4390152375
WARNING
Product Instructions
Torque Arm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Copco SMC 100 2100 POSI 3
Summary of Contents for Atlas Copco SMC 100 2100 POSI 3
- Page 1 SMC 100 2100 POSI 3 Printed Matter No. 9839 1431 01 Torque Arm Publication Date 2018-11-01 Valid from Serial No. A0780001 Product Instructions SMC 100 2100 POSI 3 4390152375 (100 Nm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Working area when mounted on a ceiling .......... 7 Operation ......................... 8 Operating instructions.................. 8 Operating the torque arm .............. 8 Service ........................ 9 Maintenance instructions .................. 9 Daily maintenace ................... 9 Lubrication instructions .................. 9 Lubrication ..................... 9 Recycling ....................... 10 Recycling instruction.................. 10 Recycling information .................. 10 © Atlas Copco Industrial Technique AB - 9839 1431 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Website
You can find information concerning our products, accessories, spare parts and published matters on our website. Safety Data Sheets MSDS/SDS The safety data sheets describes chemical products sold by Atlas Copco. For more information, consult the website: www.atlascopco.com/sds Country of origin Please refer to the information on the product label. - Page 5 SMC 100 2100 POSI 3 Product information Weight 5 kg Weight 11 lb © Atlas Copco Industrial Technique AB - 9839 1431 01...
-
Page 6: Installation
SMC 50/100 (M8) - 24 Nm Install the set screw on the tool holder and tighten it to 2.5 Nm. Attach a balancer to the torque arm by using Atlas Copco balancer adapter kit and hook it up with the tool. -
Page 7: Working Area When Mounted On A Ceiling
SMC 100 2100 POSI 3 Installation Working area when mounted on a ceiling © Atlas Copco Industrial Technique AB - 9839 1431 01... -
Page 8: Operation
Before operating, lock the torque arm attachment in a fixed position. ► NOTICE Risk of damage A hit against the rail ends will cause damage to the torque arm. Do not use excessive force on the torque arm. ► © Atlas Copco Industrial Technique AB - 9839 1431 01... -
Page 9: Service
Replace the entire arm if extensive wear, cracks and/or damage are detected. ■ Replace worn nuts or washers. Lubrication instructions Lubrication ■ The bushings on the arms does not need to be lubricated. © Atlas Copco Industrial Technique AB - 9839 1431 01... -
Page 10: Recycling
Positioning box Electronics Screw Metal, steel Carbon fiber Washer Metal, steel Metal, steel Tool holder attachment Metal, aluminum Screw Metal, steel Screw Metal, steel Power unit Electronics Screw Metal, steel © Atlas Copco Industrial Technique AB - 9839 1431 01... - Page 12 Original instructions Atlas Copco Industrial © Copyright 2018, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
