Printed Matter No. 9836 8267 01
Valid from Serial No. C5740001
2017-03-02
SMC-100-1600
(100 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and
instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference
4390152285
WARNING

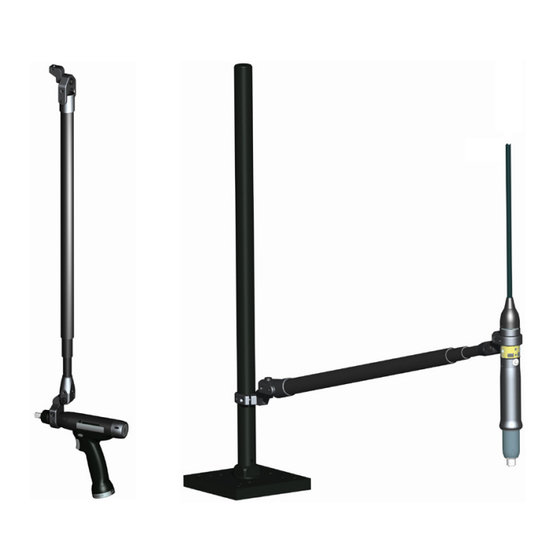

SMC-100-1600
Product Instructions
Torque Arm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMC-100-1600 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Copco SMC-100-1600

Summary of Contents for Atlas Copco SMC-100-1600

  • Page 1 SMC-100-1600 Printed Matter No. 9836 8267 01 Torque Arm Valid from Serial No. C5740001 Product Instructions 2017-03-02 SMC-100-1600 4390152285 (100 Nm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

  • Page 2: Table Of Contents

     9 Operation .................. 11 Operating instructions ............ 11 Operating the torque arm.......... 11 Service .................. 12 Maintenance instructions............ 12 Daily maintenace ............ 12 Lubrication instructions............ 12 Lubrication .............. 12 © Atlas Copco Industrial Technique AB - 9836 8267 01...

  • Page 3: Product Information

    • To avoid damage or destruction of tool parts, service the tool according to the recommended maintenance schedules and follow the correct instruc- tions. • Warranty repairs are only performed in Atlas Copco workshops or by Certi- fied Service Partners. Atlas Copco offers extended warranty and state of the art preventive mainte- nance through its ToolCover contracts.

  • Page 4: Website

    ServAid is available on DVD and on the website: https://servaid.atlascopco.com For further information contact your Atlas Copco sales representative or e-mail us at: servaid.support@se.atlascopco.com Safety Data Sheets MSDS/SDS The safety data sheets describes chemical products sold by Atlas Copco.

  • Page 5: Technical Data

    Length min 722 mm Length min 28.4 in Max tool holder swivel angle ω 30 deg Max torque 100 Nm Max torque 73.8 ft lb Weight 1.28 kg Weight 2.82 lb © Atlas Copco Industrial Technique AB - 9836 8267 01...

  • Page 6: Installation

    • Make sure that the fixation point can handle the weight and the torque of the chosen torque arm. • Attach the safety wire (see Spare Parts) to a second point that does not limit the working area. © Atlas Copco Industrial Technique AB - 9836 8267 01...

  • Page 7: Attaching And Balancing The Tool When Mounted On A Bench

    • SMC 50/100 (M8) - 24 Nm 4. Install the set screw on the tool holder and tighten it to 2.5 Nm. 5. Balance the tool with the balancer. Working area when mounted on a bench © Atlas Copco Industrial Technique AB - 9836 8267 01...

  • Page 8: Attaching And Balancing The Tool When Mounted On The Ceiling

    2. Attach the tool holder to the tool. 3. Attach the tool holder to the arm. 4. Attach a balancer to the torque arm by using Atlas Copco balancer adapter kit and hook it up with the tool. 5. Adjust the balancer to carry the weight of the torque arm, the tool holder and the tool.

  • Page 9: Working Area When Mounted On A Ceiling

    Installing the SMC torque arms in trolley and rail systems Do not modify the torque arm or the torque arm attachment. The installed torque arm must be able to swivel in all directions. © Atlas Copco Industrial Technique AB - 9836 8267 01...
  • Page 10 Installation SMC-100-1600 © Atlas Copco Industrial Technique AB - 9836 8267 01...

  • Page 11: Operation

    Before operating, lock the torque arm attachment in a fixed position. ► NOTICE Risk of damage A hit against the rail ends will cause damage to the torque arm. Do not use excessive force on the torque arm. ► © Atlas Copco Industrial Technique AB - 9836 8267 01...

  • Page 12: Service

    • We recommend that the bench stand pole is lubricated with a couple of drops of oil twice a year. • The bushings on the arms does not need to be lubricated. © Atlas Copco Industrial Technique AB - 9836 8267 01...
  • Page 16 Original instructions Atlas Copco Industrial © Copyright 2016, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
