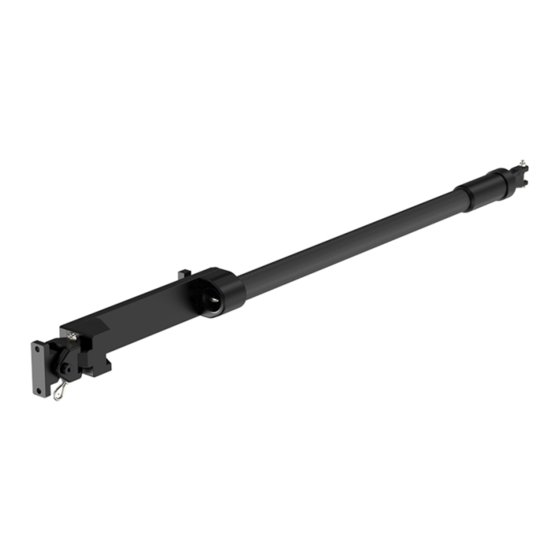

Printed Matter No. 9839 0521 01
Valid from Serial No. A6750001
2017-02-16
SMC-TT-10-850
(10 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and
instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference
SMC-TT-10-850
4390151029
WARNING
Product Instructions
Torque Arm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMC-TT-10-850 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas Copco SMC-TT-10-850

Summary of Contents for Atlas Copco SMC-TT-10-850

  • Page 1 SMC-TT-10-850 Printed Matter No. 9839 0521 01 Torque Arm Valid from Serial No. A6750001 Product Instructions 2017-02-16 SMC-TT-10-850 4390151029 (10 Nm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

  • Page 2: Table Of Contents

    Attaching and balancing the tool when mounted on the ceiling.............. 13 Operation .................. 14 Operating instructions ............ 14 Operating the torque arm.......... 14 Service .................. 15 Maintenance instructions............ 15 Daily maintenace ............ 15 © Atlas Copco Industrial Technique AB - 9839 0521 01...

  • Page 3: Product Information

    • To avoid damage or destruction of tool parts, service the tool according to the recommended maintenance schedules and follow the correct instruc- tions. • Warranty repairs are only performed in Atlas Copco workshops or by Certi- fied Service Partners. Atlas Copco offers extended warranty and state of the art preventive mainte- nance through its ToolCover contracts.

  • Page 4: Website

    ServAid is available on DVD and on the website: https://servaid.atlascopco.com For further information contact your Atlas Copco sales representative or e-mail us at: servaid.support@se.atlascopco.com Safety Data Sheets MSDS/SDS The safety data sheets describes chemical products sold by Atlas Copco.

  • Page 5: Technical Data

    24 deg Max torque 10 Nm Max torque 7.4 ft lb Weight 1.4 kg Weight 3.09 lb Accessories Required accessories Balancer adapter A Applicable for RIL4C balancer and RIL5C Balancer. © Atlas Copco Industrial Technique AB - 9839 0521 01...
  • Page 6 Disconnect the snap hook attached to the wire loop. Attach the wire loop to the torque arm hook. Optional accessories Straight tool adapter A Adapter between tool holder and clevis. © Atlas Copco Industrial Technique AB - 9839 0521 01...
  • Page 7 SMC-TT-10-850 Product information 1. Straight tool adapter © Atlas Copco Industrial Technique AB - 9839 0521 01...
  • Page 8 Product information SMC-TT-10-850 Rigid top fixation A Rigid top fixation © Atlas Copco Industrial Technique AB - 9839 0521 01...
  • Page 9 SMC-TT-10-850 Product information Gravity center adapter A Gravity center adapter © Atlas Copco Industrial Technique AB - 9839 0521 01...

  • Page 10: Installation

    Installation SMC-TT-10-850 Installation Installation instructions Attaching balancer to torque arm 1. Select balancer and balancer adapter kit. 2. Attach the balancer adapter kit. Working area when mounted on a ceiling © Atlas Copco Industrial Technique AB - 9839 0521 01...

  • Page 11: Mounting The Torque Arm On A Ceiling

    Make sure that the fixation point can handle the weight and the torque of the chosen torque arm. Attach the auxiliary wire (see exploded views) to a second point that does not limit the working area. © Atlas Copco Industrial Technique AB - 9839 0521 01...
  • Page 12 Installation SMC-TT-10-850 © Atlas Copco Industrial Technique AB - 9839 0521 01...

  • Page 13: Attaching And Balancing The Tool When Mounted On The Ceiling

    2. Attach the tool holder to the tool. 3. Attach the tool holder to the arm. 4. Attach a balancer to the torque arm by using Atlas Copco balancer adapter kit and hook it up with the tool. 5. Adjust the balancer to carry the weight of the torque arm, the tool holder and the tool.

  • Page 14: Operation

    Before operating, lock the torque arm attachment in a fixed position. ► NOTICE Risk of damage A hit against the rail ends will cause damage to the torque arm. Do not use excessive force on the torque arm. ► © Atlas Copco Industrial Technique AB - 9839 0521 01...

  • Page 15: Service

    • Examine sliding bearings and axles when there is high friction. • Replace the entire arm if extensive wear, cracks and/or damage are detected. • Replace worn nuts or washers. © Atlas Copco Industrial Technique AB - 9839 0521 01...
  • Page 16 Original instructions Atlas Copco Industrial © Copyright 2016, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
