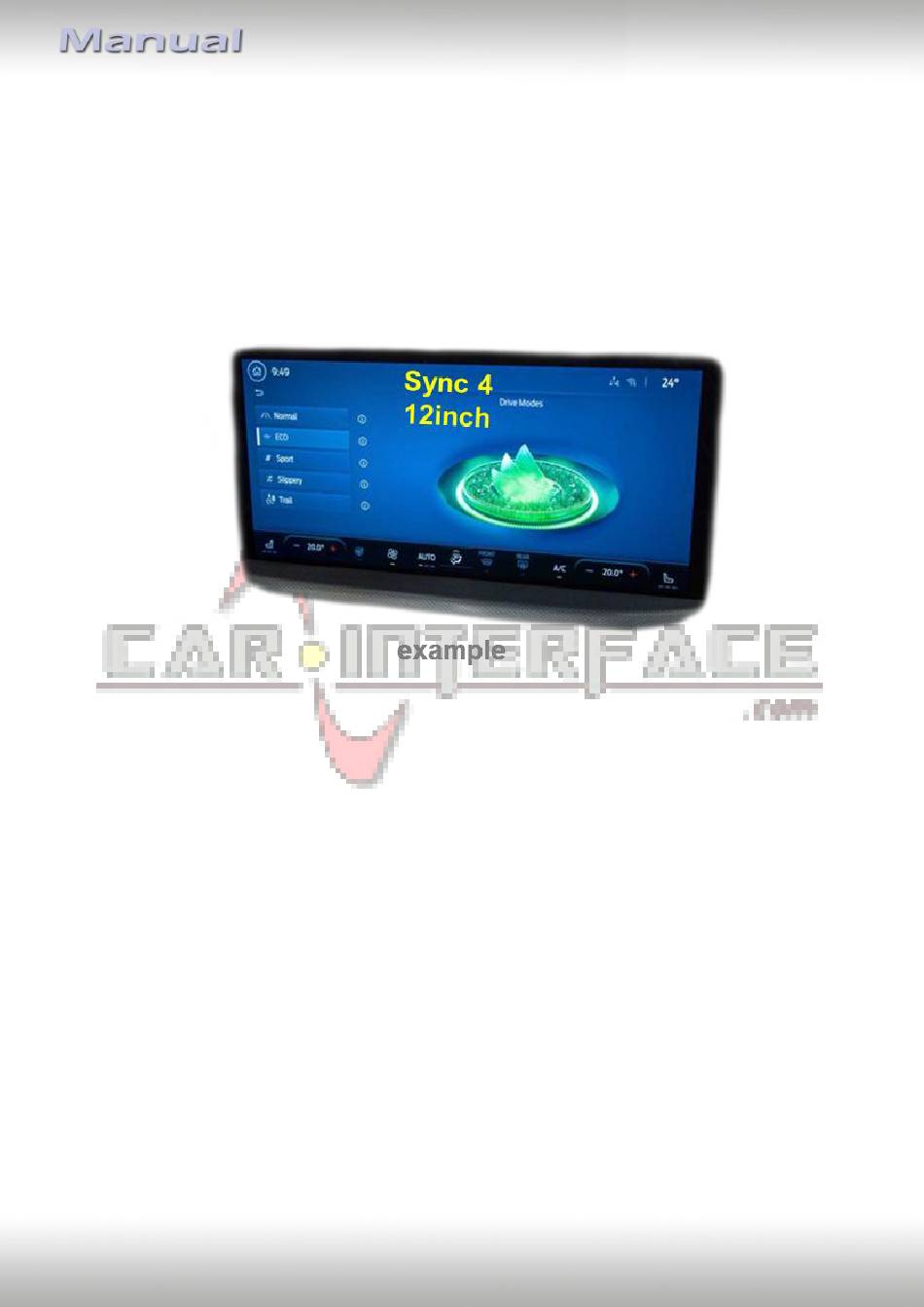

Car-Interface CI-HDV-SY4 Manual

Car-Interface CI-HDV-SY4 Manual

Video inserters for ford vehicles with sync 4 infotainment

Advertisement

Quick Links

Ford

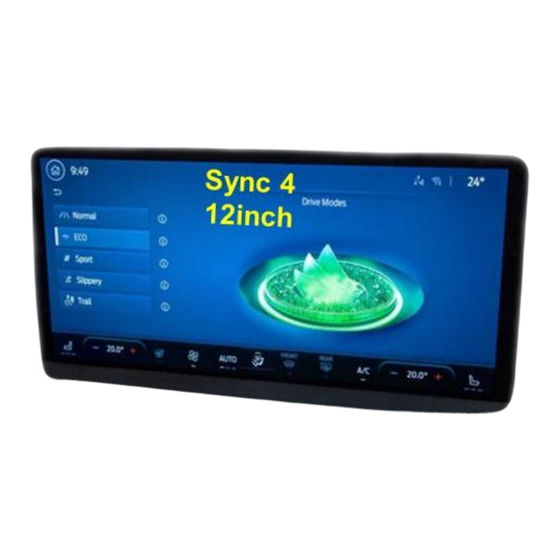

with horizontal 12inch or 13.2inch tablet monitor
Product features
 1 x CVBS/AHD-input for rear-view camera
 1 x CVBS/AHD-input for front camera
 2 x CVBS/AHD-input for side-cameras or additional after-market video-sources
(e.g., USB-device, DVB-T2 Tuner, etc.)
 All inputs NTSC and PAL compatible
Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
HDV-SY4 only:
1 HDMI-input for HD rear-view camera or additional HDMI-sources (e.g.,
IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)
Supported HDMI resolutions 720p NTSC (60Hz), 720p PAL (50Hz),
1080p NTSC (60Hz), 1080p PAL (50Hz)
 Automatic switching to rear-view camera input while reverse gear is engaged
 Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
 Activatable driving-path lines for rear-view camera (not available for all vehicles)
 Activatable PDC graphic (not available for all vehicles)
 Picture free during the car ride (only for inserted video-sources)
Version 21.02.2024
Video inserters
CI-HDV-SY4
Compatible with
vehicles with Sync 4 infotainment
HW: CAM-AHD(V34)/(V20)
Attention!
Video signal type of each video
source must be preset in OSD-menu
of corresponding video-input.
CI-HDV-SY4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CI-HDV-SY4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Car-Interface CI-HDV-SY4

  • Page 1 Video inserters CI-HDV-SY4 Compatible with Ford vehicles with Sync 4 infotainment with horizontal 12inch or 13.2inch tablet monitor Attention! Video signal type of each video source must be preset in OSD-menu of corresponding video-input. Product features  1 x CVBS/AHD-input for rear-view camera ...
  • Page 2: Table Of Contents

    HDMI rear-view camera or other HDMI-source (only HDV-SY4) 2.10 Audio-insertion 2.11 Connection - Interface and external keypad 2.12 OSD-menu settings 3 Interface operation 4 Specifications 5 FAQ - Troubleshooting interface functions - product-specific 6 FAQ - Trouble shooting Interface functions - general Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 3: Prior To Installation

    Delivery contents External keypad Interface HSD+2 extension 20pin interface cable Picture signal cable 10pin Power/CAN cable Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 4: Checking The Compatibility Of Vehicle And Accessories

    Manual switching to front camera is possible by external keypad. Driving-path lines and PDC It is possible that the vehicle CAN-bus is not fully compatible to the interface. In this case driving-path lines and optical PDC display will not be supported. Limitations Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 5: Boxes And Connectors - Interface

    The interface converts connected after-market sources’ video-signals into a video-signal compatible with the factory monitor. It can then be inserted, using separate trigger options. The interface also reads the vehicle’s CAN-bus signals and uses them for own functions. * HDMI-input only available on HDV-SY4 Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 6: Settings - 8Dip Switch Bench (Interface Functions)

    In the OSD-menu settings it is possible to set the automatic front camera display time from 5, 10; 15 or 20 seconds or shut it off. Therefore, it is also possible to connect a video-source other than from camera. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 7: Rear-View Camera Settings (Dip 4)

    In this case set dip 8 = OFF. * HDMI-input only available on HDV-SY4 Power reset interface after each dip change to activate changes! Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 8: Settings - 2Dip Switch Bench (Monitor Definition)

    As on any installation of retrofit equipment, a stand-by test is necessary after installation to ensure that the retrofit products switch off after the vehicle enters sleep mode. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 9: Place Of Connection

    Place of connection The video-interface has to be connected at the head-unit’s rear side (APIM module). Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 10: Connection Schema

    Connection schema Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 11: Connection - Picture Signal Cable

    HSD+2 connector of the head unit. Note: Depending on the installation conditions, the enclosed picture signal cable may also be mounted upside down, concerning it’s HSD connectors. However, it‘s connection must only be made at the head unit! Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 12: Connection - Harnesses, Power Supply And Can-Bus Or Analogue Without Can-Bus

    With analogue connection, driving-path lines cannot be displayed. Connect female 10pin connector of 10pin power/CAN cable to the male 10pin connector of interface. Connect female 20pin connector of 20pin interface cable to the male 20pin connector of interface. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 13: Connection With Can-Bus

    Exceptionally, the CAN communication may not succeed in all vehicles. If, after connecting the 10pin power/CAN cable, no interface LED lights up while ignition is turned on, the analog connection described below must be made. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 14: Analogue Connection Without Can-Bus

     With analogue connection of interface (without CAN-bus), the connection of rear-view camera and side-cameras must also be made analogue. See chapters: 2.6.2 Case 2: Reverse signal analogue connection 2.8.2 Case 2: Turn signal analogue connection Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 15: Power Supply Outputs

    CAN-bus or by trigger wires (see following chapters for connection). * HDMI-input only available on HDV-SY4 Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 16 Note: The type of camera switching (by CAN-bus Attention! or trigger cables) can be preset in the OSD-menu Video signal type of each video- source must be preset in OSD-menu settings individually for each input. of corresponding video-input. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 17 Note: The type of camera switching (by CAN-bus Attention! or trigger cables) can be preset in the OSD-menu Video signal type of each video- source must be preset in OSD-menu settings individually for each input. of corresponding video-input. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 18: After-Market Rear-View Camera

    5, V4-Reverse input remains without function!  If reverse gear detection of interface by CAN-bus does not work, reverse gear signal has to be connected analogue. * HDMI-input only available on HDV-SY4 Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 19: Case 2: Reverse Signal Analogue Connection

    (86). Connect output connector (87) of relay to power cable of rear-view camera, additionally to green wire Trig-Rear. Connect stabile and permanent +12V to input connector (30) of relay. * HDMI-input only available on HDV-SY4 Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 20: After-Market Front Camera

    CAN-bus and with analogue connection of the rear camera. Note: In addition, manual switching to front camera input (short press) is possible by external button from any image mode (see chapter 3 Interface operation). Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 21: After-Market Side-Cameras

    (some cameras are not continuously current stable). Note: If turn signal detection of interface is not compatible with the vehicle CAN-bus, the turn signals must be connected analogue. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 22: Case 2: Turn Signal Analogue Connection

    Connect output connector (87) of relay to power cable of rear-view camera, additionally to light blue wire Trig-Left. Connect stabile and permanent +12V to input connector (30) of relay. Same connection applies to right side-camera just the dark blue wire Trig-Right. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 23: Hdmi Rear-View Camera Or Other Hdmi-Source (Only Hdv-Sy4)

    V3-Front is also displayed for the preset time when reverse gear is disengaged. Power supply can be taken from green wire CAM power 12V (max3A). * HDMI-input only available on HDV-SY4 Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 24: Audio-Insertion

    Connect female 4pin connector of keypad to male 4pin connector of 20pin interface cable. Note: We recommend to install the external keypad for possible support reasons even if not required for customer needs. Make sure the external keypad is not installed “pressed” then. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 25: Osd-Menu Settings

    This setting must be preset for correct video playback. The following video-source signal types can be selected: CVBS video-sources: NTSC, PAL AHD video-sources: 720p NTSC, 960p NTSC, 1080p NTSC, 720p PAL, 960p PAL, 1080p PAL Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 26 The following video-source signal types can be used: CVBS video-sources: NTSC, PAL AHD video-sources: 720p NTSC, 960p NTSC, 1080p NTSC, 720p PAL, 960p PAL, 1080p PAL * HDMI-input only available on HDV-SY4 Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 27 V4-Reverse is without function when HDMI-input* is defined as rear-view camera input (dip 5 = ON). But the function “Trigger” of HDMI-input* must be set in menu of V4-Reverse. * HDMI-input only available on HDV-SY4 Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 28: Interface Operation

    5 FAQ - Troubleshooting interface functions - product-specific Problem Possible reasons Solution See chapter 2.12 OSD-menu Distorted or no Video-signal type of video-source not defined in OSD-menu settings - menu of inserted video of the corresponding video input corresponding input Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 29: Faq - Trouble Shooting Interface Functions - General

    Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
  • Page 30 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-06 5485 Made in China Version 21.02.2024 HW: CAM-AHD(V34)/(V20) CI-HDV-SY4...
