Compatible with Mercedes Benz vehicles
Generation NTG4.5 with Command Online or Audio20
with 4pin HSD LVDS connector on the monitor
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
CVBS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL/NTSC compatible
Version 11.05.2021

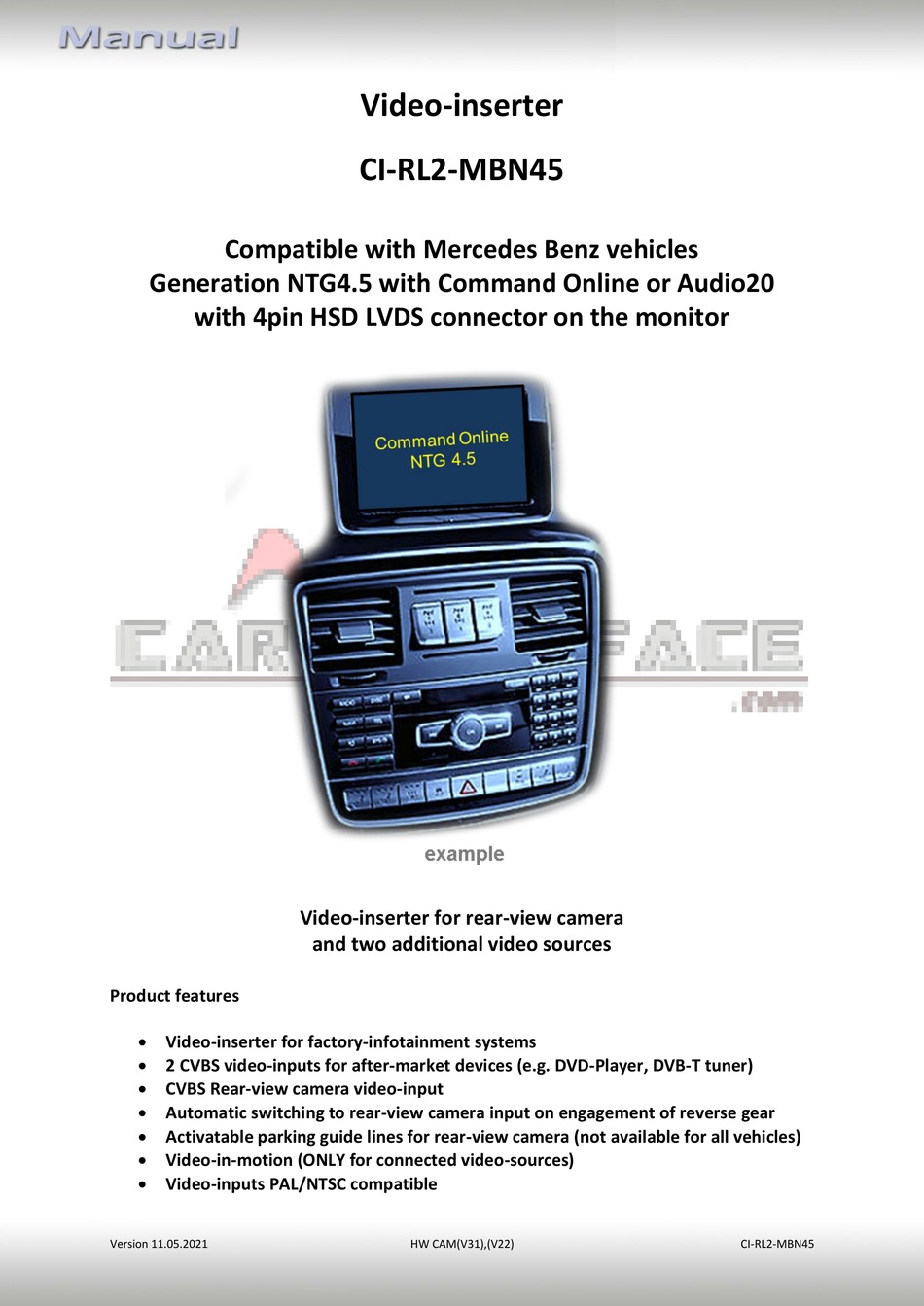

Video-inserter
CI-RL2-MBN45
Video-inserter for rear-view camera
and two additional video sources
HW CAM(V31),(V22)
CI-RL2-MBN45
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL2-MBN45
Summary of Contents for Car-Interface CI-RL2-MBN45
- Page 1 Video-inserter CI-RL2-MBN45 Compatible with Mercedes Benz vehicles Generation NTG4.5 with Command Online or Audio20 with 4pin HSD LVDS connector on the monitor Video-inserter for rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner) ...
-
Page 2: Table Of Contents
Case 1: CAN-box detects reverse gear 2.6.2.2. Case 2: CAN-box does not detect reverse gear 2.7. Connection video-interface and keypad 2.8. Picture settings and guide lines Interface operation 3.1. By infotainment key 3.2. By keypad Specifications video-interface Frequently asked questions Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 3: Prior To Installation

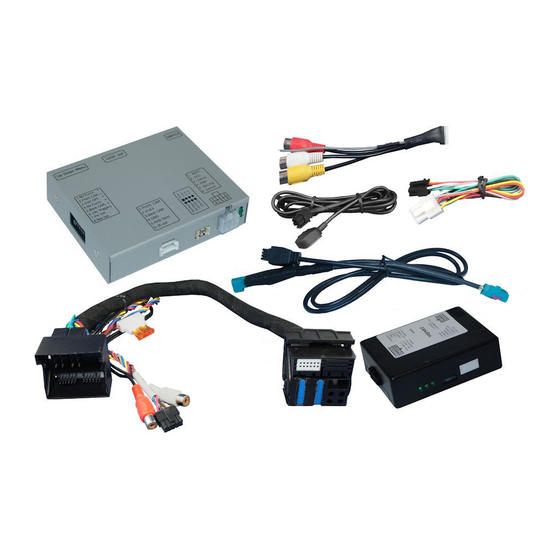

Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
To delay the switch- back time, additional electronics is required. PDC and guidelines If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 5: Boxes And Connectors
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 6: Dip-Switch Settings
4 options, retry and disconnect the 6pin plug of the video intzerface between every change of the dip setting. After each Dip-switch-change a power-reset of the Video Interface has to be performed! Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 7: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface shell be installed on the backside of the factory monitor and head-unit. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 8: Connection Schema
2.2. Connection scheme Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 9: Connection - Video-Interface And Can-Box
CAN, it is possible to install the video interface without the CAN-box. In this case see also note in chapter after-market rear-view camera if one is supposed to be connected. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 10: Connection - Factory Monitor
HSD+2 connector of the video-interface. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer.. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 11: Connection - Head-Unit
Connect the previously become free female Quadlock connector of the factory harness to the male Quadlock connector of the Quadlock harness. Connect the opposite female Quadlock connector of the Quadlock harness to the Quadlock connector of the head unit. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 12: Connecting - Video Sources
Connect the video RCA of the video source 1 and 2 to the female RCA connector “Video IN1” ”Video IN 2” of the 6pin video cable. Connect the video RCA of the rear-view camera to the female RCA connector “Camera IN” of the 6pin video cable. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 13: Audio-Insertion
CAM while reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 14: Case 2: Can-Box Does Not Detect Reverse Gear
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green wire of the 6pin to 8pin cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 15: Connection Video-Interface And Keypad
2.7. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 16: Picture Settings And Guide Lines
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... -
Page 17: Interface Operation
0.7V - 1V Video input formats PAL/NTSC Temperature range -40°C to +85°C Dimensions video-box (W x H x D) 113 x 22 x 115mm Dimensions CAN-box (W x H x D) 89 x 27 x 65 mm Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45... - Page 18 Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45...
- Page 19 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 11.05.2021 HW CAM(V31),(V22) CI-RL2-MBN45...
