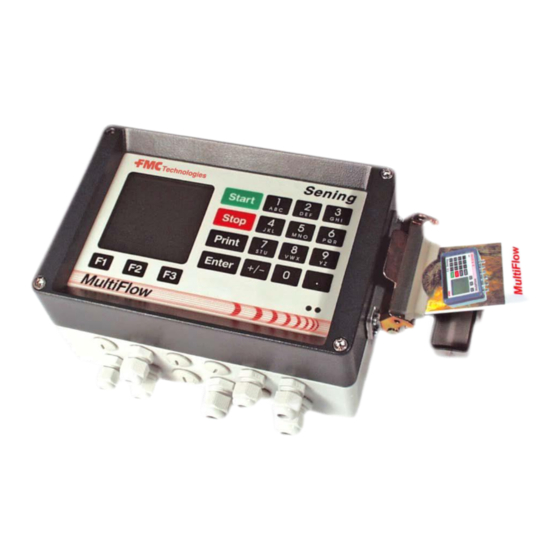

TechnipFMC Sening MultiFlow Instruction Manual

Electronic register
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

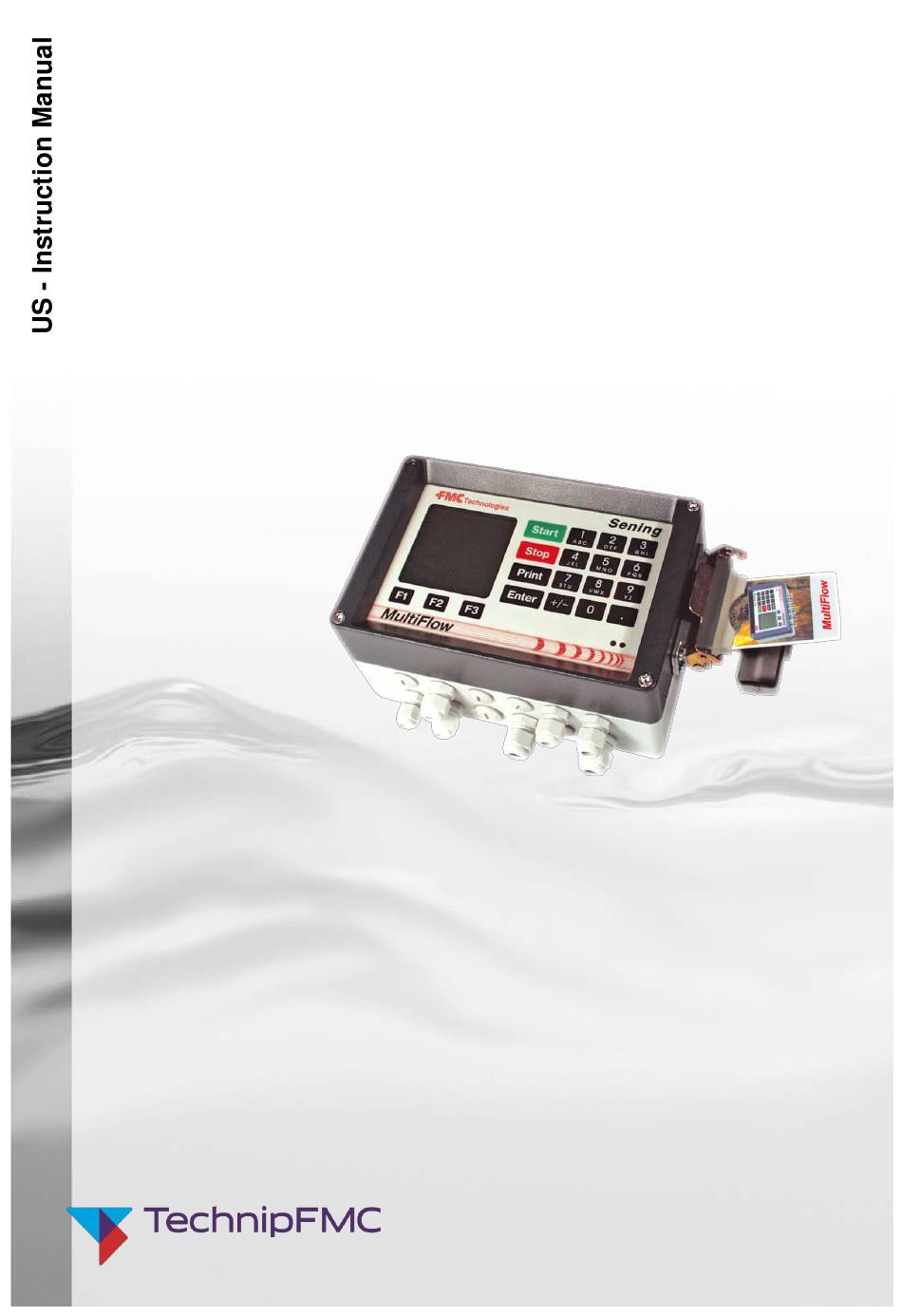

Issue/Rev. 3.65 (02/24)
MN F09 002 US  DOK-383E
Electronic Register
MultiFlow
=== Ende der List e f ür T extm ar k e I ntro ===
®
Sening
is a registered trademark of TechnipFMC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sening MultiFlow and is the answer not in the manual?

Questions and answers

Related Manuals for TechnipFMC Sening MultiFlow

Summary of Contents for TechnipFMC Sening MultiFlow

  • Page 1 Issue/Rev. 3.65 (02/24) MN F09 002 US  DOK-383E Electronic Register MultiFlow === Ende der List e f ür T extm ar k e I ntro === ® Sening is a registered trademark of TechnipFMC...
  • Page 2 - Update Ex-data - CO2KostAufG - FMC Technologies -> TechnipFMC Rev 3.64 February 2023 released - Program versions updated - CO2KostAufG modified - Order number max 10 characters Rev. 3.65 June 2023 released ® Sening is a registered trademark of TechnipFMC...

  • Page 3: Table Of Contents

    MultiFlow emergency power supply MF-EPS (MID version only) ............90 Emergency power supply – Battery change - MF-EPS ...............92 6.12 Product Definition ........................ 95 Define a New Product ..........................96 Additive Dispensing ..........................99 Product restrictions ..........................105 ® Sening is a registered trademark of TechnipFMC...
  • Page 4 12.1 Extended product definition .......................244 Error messages and status information................246 Technical Data ........................252 14.1 MultiFlow ............................252 14.2 MultiFlow (Control Device) ........................253 14.3 Operating Device ..........................254 14.4 Printer DR-295 FDW .........................254 ® Sening is a registered trademark of TechnipFMC...
  • Page 5 Sensor interface ..............................302 Sensors IO interface 303 CAN-Bus (lokal) ..........................304 Valve Control ........................... 304 Flow Control 305 Draining Overfill prevention ..............................306 Receipt ID ............................307 Printer Settings ..........................307 Pulse inputs ............................. 308 ® Sening is a registered trademark of TechnipFMC...
  • Page 6 Electronic Seal ..........................314 Calibration............................314 Diagnosis ............................314 Initialize ............................314 Chip Card ............................315 Program Update..........................315 Checksums ............................315 Sensor Monitor ..........................315 Product Definition ........................... 316 Printer Settings ..........................316 Index ® Sening is a registered trademark of TechnipFMC...

  • Page 7: Orientation Aids For The Manual

     Background information Short-Tip, e.g. “See more detailed information in chapter XX”.  Option Special case.  Function Functional description. NOTE: indicates a special situation. ATTENTION: particular attention is to be paid. ® Sening is a registered trademark of TechnipFMC...

  • Page 8: Valuable Facts About Multiflow

    MN F09 002 US  DOK-383E  Issue/Rev 3.65 (02/24) MultiFlow  General Valuable Facts about MultiFlow • The MultiFlow has four intrinsically safe The MultiFlow has been developed according to the latest state of technology, incorporating inputs for the connection of switches for many years of experience in the application of use in Ex areas without special protective electronic metering.

  • Page 9: System Structure

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General System Structure • The MultiFlow is available in the AIII version (heating oil, diesel) or in the AI version (petrol, kerosene). • With the AIII version the complete control electronics with the operating device is accommodated in one housing.

  • Page 10: Key Character Assignment

    MN F09 002 US  DOK-383E  Issue/Rev 3.65 (02/24) MultiFlow  General Key character assignment Letter group A; B; C; 1 or a; b; c; 1 Upper and lowercase selection with F1 Letter group D; E; F; 2 or d; e; f; 2 Upper and lowercase selection with F1 Letter group G;...
  • Page 11 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General 1.5.1 Key assignment  Apart from the entry of numbers, the keys can also be used for the entry of letters or special characters. All the characters used can be printed out. The letters and special characters assigned to the keys are listed in the table in chapter 1.5 "Key character assignment"...

  • Page 12: Quick Start Up Multiflow

    MN F09 002 US  DOK-383E  Issue/Rev 3.65 (02/24) MultiFlow  General Quick Start up MultiFlow Steps Parameter 1.2. 3.1.2. 3.1.8.1 3.1.8.7 3.2.1 3.3.1.1 3.3.1.3 3.3.1.4 Push F3 for Menu, than the numbers. For one step back please push the Stop button 5,528 GMVZ 1004 8,415...
  • Page 13 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General  After setting these 8 parameters the system is ready for calibration. Set the calculated meter factor for each product under parameter 3.5.1.X.7.5.1. The placeholder X stands for the product number. (1= Heating Oil / 2 = Diesel etc.).
  • Page 14 MN F09 002 US  DOK-383E  Issue/Rev 3.65 (02/24) MultiFlow  General Sening® is a registered trademark of FMC Technologies...

  • Page 15: Quick Start

    MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Quick Start Quick Start The main keys  As a rule, the following functions are assigned to the below keys: <Start> Start discharge <Stop> Stop or terminate discharge Quit an entry without saving the data <Print>...
  • Page 16 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24)) MultiFlow  Quick Start Delivery preset  Now the delivery preset Del iv er y Pr es et menu appears. The us to me r ID : 00 0 00 -- -- -- -- -- -- -- --- -- selection made before is Pr od uc t Co de : >...
  • Page 17 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Quick Start “Residue removal EPE2” display  The “Residue removal EPE2” Res id ue r em ov al EP E2 menu item (menu 8) can be -- -- -- -- -- -- -- --- -- used to carry out the residue P r es s ST AR T to removal of the measuring...
  • Page 18 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24)) MultiFlow  Quick Start  You can also select the hose by entering the preceding number.  With <Stop> you can quit the selection menu at any time. Select a new product (if required) ...
  • Page 19 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Quick Start  If you have made a faulty Del iv er y entry, the respective input He at in g oi l Pr es et : 55 00 l field is marked -- -- -- -- -- -- -- --- -- automatically, enabling...
  • Page 20 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24)) MultiFlow  Quick Start  You select the next product.  The next product has to be identified. You can also change to a packed good (additive). The product code of the desired product is entered as described in "Select a new product"...
  • Page 21 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Quick Start  After printing the note the device is ready for the next discharge.  All delivery data is entered to the logbook. . Reports The MultiFlow offers various reports you can print out to assist you with your daily work.
  • Page 22 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24)) MultiFlow  Quick Start 12 Setting of time and date Display the counter readings Stock monitoring (optional) . Monitoring the load (optional) The Load management can be found in the Main Menu under Item 6 (Menu 6).
  • Page 23 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Quick Start  This alarm is given to prevent the system from running empty which would involve a refilling procedure.  You can deactivate the alarm by setting the minimum volume to zero.
  • Page 24 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24)) MultiFlow  Quick Start Sening® is a registered trademark of FMC Technologies...

  • Page 25: General Installation Instructions

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions General Installation Instructions Apart from the points outlined in the following, all the relevant regulations, such as IEC/EN 60079-14, must be observed during installation, operation and maintenance. Only if the instructions below are followed, long and trouble-free operation can be ensured.
  • Page 26 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions • All cables must be routed such that they are not damaged or kinked. • After connecting the wire ends, the screw-secured plug-in connectors on the MultiFlow must be pressed firmly onto the connector strip to prevent them from becoming unintentionally disconnected.

  • Page 27: Terminal Box (Only Ai Version)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions • Cables without connectors may be shortened. • The cover mounting screws should be slightly lubricated before fitting (copper paste, graphite grease). Thus corrosion of the screws after long periods of operation is prevented and easy unscrewing enabled.

  • Page 28: Printer Connection

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions Fig. 1: Pull-Spring Terminals Fig. 2: Terminal Box Printer Connection The printer (DR-295 / DR-298) is directly supplied with a 24V voltage supply from the driver's cabin. ...

  • Page 29: Maintenance

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions In vehicles with AI equipment, the relevant Ex installation regulations must be taken into account!  Tap off the voltage of +24V directly from the battery positive pole (Terminal 30) via a fused line using a lead fitted with a separate switch.
  • Page 30 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions service life of at least seven years. However, the expected life also depends on the operating conditions such as temperature and turn-on duration of the device, so it is only a theoretical value. To replace the batteries the MultiFlow must be opened and the battery removed as shown in the sketch.

  • Page 31: Safety Instructions

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions  If the change of the battery is performed within 5 seconds, the data will not be erased! The date must be adjusted before the W & M seal is set, because it is subject to W &...
  • Page 32 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions Make sure that no fuel is allowed to soak or flow into the ground! 3.6.3 Operating elements CAUTION: Do not open the housing cover when the unit is connected to the voltage supply! Work must only be carried out on the Ex-e terminals when the unit is voltage free.
  • Page 33 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions • Fuels, grease, oil and objects or lines contaminated with them must be disposed of separately. 3.6.5 Proper intended use  The measuring systems are to be used exclusively for delivery of low- viscosity mineral oils on tank trucks.
  • Page 34 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General Installation Instructions Sening® is a registered trademark of FMC Technologies...

  • Page 35: General User Instructions

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General User Instructions General User Instructions Menu Structure Apart from starting the discharge, two menu trees are accessible from Start screen: Start screen FA Se ni ng M ul ti Flo w S el ec t Pr od uc t a nd Vo lu me w it h S TAR T>...
  • Page 36 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General User Instructions If the display for the setup menu appears noticeably longer than 6 seconds and the main menu is not called up automatically, there is a communication error between the display and the CPU! 4.1.1.1 Setup Display Menu <F1>...
  • Page 37 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General User Instructions identification. The test can be terminated by pressing the <Enter> key twice.  <Contrast>: The range of values for the contrast of the display lies between (0…100) and is modified with <F1>...
  • Page 38 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General User Instructions The CAN bus settings should only be carried out by competent persons. On this point also See chapter 9.3.1.6 "CAN-Bus (global)" / page 137. 4.1.1.2 Test Reader Menu <F2>...
  • Page 39 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General User Instructions ☺ Display after a successful card CHI P CA RD T ES T test: 3 2 kB yt e ca pa ci t y R EA D/ WR IT E AT AD DR ES S: ca rd O.
  • Page 40 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  General User Instructions 4.1.3 Report Printouts (Key <Print>) Each delivery is saved by the MultiFlow and can be printed out later as a report. This means that a complete shift or tour, with all events occurred, can be documented on a tour or trip report.

  • Page 41: Initial Operation

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation Initial Operation  Before you switch on the system for the first time, check the wiring to make sure that the connections are correct and firmly seated. 1.

  • Page 42: Reading In New Program Versions (Update)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation The version number has the following format: W & M Version Service Version Language Code 2.02 [2.00] Example of a version number • The calibration version indicates which calibration-capable version is installed in the MultiFlow control unit.
  • Page 43 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation  Restore the valid receipt counter reading. To do this, set the parameter 3.1.9 to the next receipt number to be used. In addition, check and correct the following parameters if necessary: Parameter Designation Explanation...
  • Page 44 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation 5.2.1.1 MultiFlow up to version 5.00  The "Program update" menu item (menu 4.6) has been added to the "Service" section of the main menu to enable the program transfer via the printer line in the case of multiple measuring systems.
  • Page 45 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation instance, the download logbook must be reset via the "Reset" (menu 4.6.4) item. To this end, the electronic seal must be broken beforehand. The update report is automatically printed before the download logbook is reset.

  • Page 46: Initialization

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation Only the MultiFlow on which a program update is to be executed may be “Activated". All others must be "Disabled". (menu 4.6.1) To ensure the maximum number of available downloads, the download logbook must be reset via menu item 4.6.4 before activation of the W &...

  • Page 47: Overview

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation  To open, pull the latching lever forward and fold back the plastic flap. ☺ Now the slot for the chip card is visible.  Insert the chip card with the contact pads face down (not visible on insertion).

  • Page 48: Installation

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation office applications using conventional memory cards. Commercially available hardware and software, in combination with a standard PC or laptop, is used for reading and writing these memory cards. The MultiFlow Chip-Plus Package is supported by several companies (further information available on request).
  • Page 49 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation The CHIP-card hardware and software (drivers) must be installed according to the manufacturer's instructions. Using the diagnostic program in the Windows system manager, access to the chip card must be accomplished without error messages.
  • Page 50 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation numerical codes are found in column A, the numerical codes are displayed. Execution of the program takes place by invoking MF-Chip.xls. Now insert the chip card with the tour data in the card reader and click on „Read Chipcard“...

  • Page 51: Diagnosis

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation 11. The tour data is now available in Excel format for further processing. Note: • The <Start Autoscan> button allows the inserted chip card to be read automatically.
  • Page 52 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation 5.7.1 Inputs and Outputs In Menu 4.3.1 the diagnostic functions for the inputs and outputs, including temperature and pulse sensors are summarized. Diagnosis Menu 4.3.1 In - /O ut pu ts Out pu ts Outputs →...
  • Page 53 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation Diagnosis Menu 4.3.1 In - /O ut pu ts Out pu ts 0 0 0 0 0 0 Inp ut s Pu lse s 0 0 0 0 0 0 +12,34 C A:x xx xx x - -- B :x xxx xx Tes ti ng .
  • Page 54 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation The following assignments are normal (further options in chapter 9.3.1.8 "Valve Control" / page 145): Fully Expanded Exp. Basic Flow With blow Electronic Electronic electron. Control Control down Control...
  • Page 55 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation 5.7.2 Printer The diagnostic functions for the printer are shown in Menu 4.3.2. Menu 4.3.2 Selected printer → Pri nt er ( 29 5) Settings → Po rt : RS 232 Ba ud R at e : 96 00...
  • Page 56 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation • Bridge the following pins: RS-232 RS-485 (Printers DR-295, DR-298 & Tally (Tally printer) printer)  Press the <F1> key to execute the so-called "loop-back test". ☺...
  • Page 57 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation 5.7.3 CAN Bus The diagnostic functions for the CAN Bus are shown in menu 4.3.3. Menu 4.3.3 Glo ba le r CA N - B us No .
  • Page 58 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation The remote control diagnostics screen firstly shows the following image: Menu 4.3.4, ready Rem ot e Co nt ro l Status of the overfill prevention → Le ve l Pr ob e ▌...
  • Page 59 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation Menu 4.3.4, connected Rem ot e Co nt ro l Le ve l Pr ob e ▐ ▐ Status of the overfill prevention → ( Y ES , N: 0, 1 .8 s ) De ad ma n Sw it ch ▐...
  • Page 60 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation Menu 4.3.4, discharge Rem ot e Co nt ro l Status of the overfill prevention → Le ve l Pr ob e ▐ ▐ ( YE S, N :0 , 1. 8s ) Status of the dead man’s switch →...
  • Page 61 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation Meaning Overfill sensor not connected Overfill sensor heated Overfill sensor checked Overfill sensor released Overfill sensor short circuit Overfill sensor covered, tank full Overfill sensor disconnected, no connection to the unit Dead man’s switch released DeadMan+ Dead man’s switch blocking, i.e.
  • Page 62 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation  The EPE2 is connected to the MultiFlow’s external bus. connection to the EPE2 via the CAN bus is required in order to control the EPE2. This connection can be established for test purposes using key 1 and/or broken using key 3.
  • Page 63 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation The diagnostic function can be used only when the connection to the IO interface is active. On exiting the diagnostic screen, the IO interface is re-initialized according to the specified configuration.
  • Page 64 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Initial Operation  With the button <F3> the version number of the sensor interface will be queried. The diagnosis function can be used only when the connection to the sensor interface is active.

  • Page 65: Discharge

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Discharge Usually the discharge of product proceeds as follows: 1. Switch on the MultiFlow 2. Start discharge 3. Select product (or accept preset) 4. Select discharge path (* 5.

  • Page 66: Carrying Out A Discharge (Part 2)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Carrying Out a Discharge (Part 2) ☺ Now the delivery preset screen appears. The preset screen displays the Del iv er y Pr es et last selected product. If another -- -- -- -- -- -- -- --- -- than the displayed product is Pr od .

  • Page 67: Measuring System Residue Removal (Optional)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Once the desired code is entered, the preset discharge quantity and default price are displayed marked by pointed brackets (> XX <). By pressing the <Enter>-key you can confirm these settings. For verification the input value is displayed in double size characters at the bottom of the display area (underneath the status line).
  • Page 68 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Dis ch ar ge pr e - se t 1. After entering all the preset values and pressing the -- -- -- -- -- -- -- --- -- P ro du kt - No : >11 <...
  • Page 69 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge C o nt ro l re si d. The measuring system residue removal message S el ec ti on : 31 85 1 switched with 1 Of f parameter 3.1.8.5.1.
  • Page 70 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge 3. After carrying out the residue removal operation (for this period the MultiFlow is switched off by the residue removal controller) the MultiFlow starts up again and the driver must repeat the discharge pre-set entries.
  • Page 71 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge removal" menu item (menu 8) can be used for removal of residue from the measuring system. It is controlled in accordance with the maximum operating time (parameter 3.1.8.5.2), with the <START> and <STOP> keys.

  • Page 72: Electronic Hose Selection (Optional)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge If a product change is being implemented between AI and AIII products, it is essential that national regulations and operator guidelines are observed. After correct residue removal from the measurement system, a residual quantity of residue is present in the measurement system (without pipe).

  • Page 73: Carrying Out A Discharge (Part 3)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge ☺ After you have pressed the <Start> key, the defined / allowed discharge passes will be displayed first:  Select the discharge pass by pressing <F1> or <F2> and press the <Enter>...
  • Page 74 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge The preset quantity, compensation mode, product and discharged amount (in double size characters) are displayed on the screen. By pressing the <F3> key you can switch between different displays. The following displays are available: A v e ra ge +1 1.

  • Page 75: Printing Delivery Notes And Invoices

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge With the key <Start> the product is accepted in the MultiFlow as delivered, similar to the liquid discharge. The entry is terminated with the function key <F2> for "No" = no further products.
  • Page 76 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge ☺ Then the next product (if registered) is displayed for confirmation. After confirming the last product and pressing the <Print> key an invoice is printed out.  P a ym en t Mo de According to the settings of Parameter 3.1.4.5.6, after the...
  • Page 77 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge ☺ The RELEASE light then indicates that the paper has been released from the print head, and may now be inserted or removed.  Insert the paper from the front (see illustration) using the guiding rail on the right side until it is stopped by the form stopper.

  • Page 78: Discharge Operated Remotely

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge  To take up any slack in the ribbon, turn the feed knob on the left side (TM-U295) or right side (DR-298) of the cassette in the direction of the arrow shown on the cassette.

  • Page 79: Discharge In Obc Operating Modes

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Discharge in OBC operating modes In its present version MultiFlow supports communication with on-board computers (OBC) from third-party manufacturers. This provides many advantages through the use of an electronic itinerary planner in the office. ...
  • Page 80 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Operating state → Del iv er y pr es et —— —— —— —— —— —— —— ——— —— — F ue l un le ad ed Product name →...
  • Page 81 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge  If you do not want the two devices to synchronize, this deactivated with OBC - co nn ec ti on parameter 3.1.4.5.8.2. Not a ct iv e! ...

  • Page 82: Monitoring The Load

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Monitoring the Load The Load screen is intended for those users who only deliver one product (e.g. heating oil) with their vehicle. The load management can be found in the main menu under Item 6 (Menu 6) and contains the following information: Loa d mo ni to r...

  • Page 83: Product Transfer / Self Loading

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge You can deactivate the alarm by setting the minimum volume to zero. 6.10 Product Transfer / Self Loading Since version 3.15 the MultiFlow offers the option of recording and logging product transfer resp.

  • Page 84: Multiflow Emergency Power Supply Mf-Eps (Mid Version Only)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge • Combining the remaining volumes of two compartments containing the same product • Draining of the system (pump, meter, valves, hose, etc.) into a slop tank while filling the system with a different product ...
  • Page 85 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Fig.1: MultiFlow emergency power supply MF-EPS Use of emergency power supply:  To be used only if the delivery is interrupted by a power failure in order to display the most recent delivery value.

  • Page 86: Emergency Power Supply - Battery Change - Mf-Eps

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Emergency power supply – Battery change - 6.12 MF-EPS MultiFlow Emergency power supply - MF-EPS Figure 2: MF-EPS Tools 1. Screwdriver 3.5 mm 2. Cross tip screwdriver Insert batteries Package contents MF-EPS Open the emergency power...
  • Page 87 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Remove batteries Lift the battery slightly and pull gently upwards and forwards to with a screwdriver remove. CAUTION: Take care not to damage the clamps! Notes Disposal of batteries The batteries in this unit should be replaced by skilled personnel only.
  • Page 88 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Discharge Sening® is a registered trademark of FMC Technologies...

  • Page 89: Product Definition

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Product Definition Product Definition The factory settings already include a number of predefined products. They are located in the product register under the position stated in the following table as (No.). Price PTB- Name...

  • Page 90: Define A New Product

    MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Product Definition Define a New Product  Press function key <F3> to call up the configuration menu. To define a new product, select Product Page 3.5. Here you can define 10 products within each of the 3 product pages.
  • Page 91 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Product Definition Pro du ct S et up Number of Selection Window → S el ec ti on : 35 22 Product Description → 1 Pr od uc t - Na me 2 Pr od uc t Ty pe 3 W&...
  • Page 92 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Product Definition De fa ul t Pr ic e Number of Selection Window → S el ec ti on :3 51 16 Price default → 1 De fa ul t Pr ic e 2 Pr ic e Fa ct or 3 Ta x Ra te Function Key Assignment →...

  • Page 93: Additive Dispensing

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Product Definition The next step is to define the price preset. Press <6> and <1> to go to the scale prices input (menu 3.5.x.x.6.1). Enter the respective net price depending on the delivery quantity.
  • Page 94 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Product Definition  Select menu 3.3.3 by pressing key <3> three times. ☺ This give you access to the options for the additive dispensing device. Stroke The Sening additive pump is a piston pump which regularly discharges frequency full strokes into the product flow.
  • Page 95 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Product Definition Hose Volume This volume is required to terminate the additive dispensing before the preselected amount is reached. Thus the hose is flushed with pure product at the end and no additive remains in the system.
  • Page 96 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Product Definition The price of the additive is only used if injection takes place after the measuring system or if a container is involved. Product Page 2 is selected with the key <2>. P r od uc t Li st Number of Selection Window →...
  • Page 97 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Product Definition Press key <1> briefly twice. The letter B appears in the text window. With function key <F1> the letter entry is set to "lowercase". Press key <7> briefly 3 x. Then a small "u" appears after the letter B in ..
  • Page 98 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Product Definition Finally, the tax rate must be defined. Here the tax rate applicable to the product is entered. Confirm the entered tax rate by pressing <Print>. Disregard point 7 Temp. compensation. This option is only active for liquid products discharged through the flow meter.

  • Page 99: Product Restrictions

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Product Definition With liquid products the price normally refers to 100 litres, so the unit "litres" and the factor "100" must be selected. The price factor is accepted into the MultiFlow with <Print>. Finally, the tax rate must be defined.
  • Page 100 MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Product Definition P r od uc t Ty pe Number of Selection Window → S el ec ti on : 35 19 2 1 Di sa bl ed 2 Li qu id P ro du ct 3 Ad di ti ve ( Pu mp) 4 Pa ck ed G oo ds Function Key Assignment →...

  • Page 101: Calibrating The Measuring System

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration W&M Calibration Calibrating the measuring system The MultiFlow supports the calibration of the measuring system using a special routine (service menu). Before calibration you must define the basic parameters of the product (<dg_ref_source_inline>Verweis --->...
  • Page 102 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration During discharge in the calibration mode, no volume correction is carried out. The temperature compensation as well as any meter factors already defined are disabled.  Once the discharge is finished, you can read the actual discharged volume on the calibration vessel.
  • Page 103 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration Example: The MultiFlow display shows exactly 1000.0 l, and a volume of 1000.0 l was measured by the calibration vessel. Due to measurements already taken, the figure displayed by the MultiFlow is to be moved slightly to the positive.

  • Page 104: Securing The Settings On A Chip Card (Mid Version Only)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration entered as the flow rate. Correspondingly, the meter factor found must be entered under "Factor". All other flow rates must be set to zero.  After you have terminated the calibration by pressing the key <PRINT>, the original settings (compensation) are activated again, and the new correction table is saved in the product register.
  • Page 105 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration ☺ After the access rights (master) have been checked a security inquiry follows: „Data transmitted from MultiFlow to chip card?”  Press <F2> (“No”) and the procedure is stopped with no change to the chip card.

  • Page 106: Resetting The Download Logbook (Mid Version Only)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration Resetting the download logbook (MID version only)  The following description is relevant only for program versions from 5.00 and higher (approval according to MID).  P r og ra m up da te All software download attempts involving...
  • Page 107 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration Sea l St at us Point in time when the Da te :1 8. 11 .19 97 last seal took place 11 :5 0 Serial Number → S er .N o : 18 - AB - 00 34 Device Number →...
  • Page 108 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration In those countries in which breaking the electronic seal by means of a menu function is not permitted, the housing (of the operator unit) must be opened and a plug-in jumper must be adjusted (c.f. chapter 8.4.1 "Setting of the plug-in jumper"...
  • Page 109 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration  The new data (printout) is finally accepted into the W & M documentation. The device is now considered being 'calibrated' again. In order to change the system date the W&M seal has to be broken! Therefore, it is essential to set the date before concluding the calibration.
  • Page 110 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration The electronic seal has been permanently broken and has to be renewed. It is not possible to reset the electronic seal without first removing the jumper. If this is attempted, the operator is requested to remove the "Seal switch".

  • Page 111: Print-Out Of Electronic W & M Seal

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration Print-out of electronic W & M seal  See the original in the annex, page 112 W&M Seal Electronic Weights & Measures Seal Serial Number : 16TK0001 Device Number : 18UB0001 Meter Name...
  • Page 112 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  W&M Calibration Sening® is a registered trademark of FMC Technologies...
  • Page 113 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Configuration of the MultiFlow  The main menu is reached via function key <F3> in the start screen, and enables the configuration of the MultiFlow. It contains the product parameters as well as settings for the display, printer and the sensors.

  • Page 114: Display Configuration

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Display Configuration Factory Name Seal Meaning Setting Display Config. Contrast Display contrast setting Date and Time Sets internal clock IMPORTANT: Date is subject to W & M restrictions! User's Language Display language for menus, alarms and reports Customer's Lang.

  • Page 115: Parameter List

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Parameter List The parameter menu contains several topics: P a ra me te r Li st S el ec ti on : 3 Device No., Operation Options, W&M restrictions →...
  • Page 116 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Example: After you have opened the main menu via key <F3> you select the parameter "Billing" (chapter 9.3.1.4 "Operating options" / page 122) with the key sequence <3> <1> <4> <0>. To change the setting master access is required (see indication M).
  • Page 117 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Curr. Symbol 0 (after) Determines the position of the currency symbol in 3.1.4.3.3 Position printouts, i.e. before or after the amount 3.1.4.3.4 Currency Symbol A £...
  • Page 118 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 3.1.4.5.0.3 Enhanced protection 0 (no) Modification of the parameter 3.1.4.5.0.2. Only after parameter entering the master password. No-load 3.1.4.6 (version 5.02 and higher) Measurement 3.1.4.6.1 Activate 0 (nein)
  • Page 119 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.4.1 Customization (Control Options)  Customer and country-specific settings can be determined in the menu item 'Control Options'. Options for customer requests  ‘Operation parameter Ope ra ti on O pt io ns Mode’...
  • Page 120 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.4.2 Notes on the Second Currency  A new parameter menu 3.1.4.3 Cur re nc y ('Currency') has been set up for S el ec ti on : 31 43 the management of a second 1 Va li d Cu rr en cy currency (e.g.
  • Page 121 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.4.2.3 Currency Symbol Before Amount In some countries the currency symbol is placed before the amount (e.g. in England and the USA). This can be set via parameter 3.1.4.3.3 (“Position symbol”).
  • Page 122 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow  In some countries various languages are spoken depending on the area. To output the ticket in a language different from the operating language, the parameter Language query must be set to 1. Before each printout a query is made of which language is to be used for the printout.
  • Page 123 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.4.6 Payment mode query  The payment mode query is activated by parameter 3.1.4.5.6 and takes place after the invoice print-out. The following selection is displayed here: ...
  • Page 124 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow change to discharge pre-selection. If no synchronization is possible, the Wait screen can be left at the earliest after 90 seconds via the keys START, STOP or ENTER, to make discharge possible in this case also (without communication with the EMIS).
  • Page 125 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Status output in the History window. Helpful during 3.1.4.6.5 Info 0 (no) the configuration phase of the no-load measurement. 3.1.4.7 3.1.4.8 Add Surcharge 0 (no) Activates special surcharge on the receipt.
  • Page 126 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Event Report Report Date 29.06.2011 14:51 Version : 5.03[5.10]DE Meter Name : - ? - ------------------------------------------ New calibration required! ------------------------------------------ 29.06.2011 14:46 ( 1) SysInf: PowerUp 29.06.2011 14:46 ( 2) Office: EMIS detected 29.06.2011 14:46 (...
  • Page 127 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow ------------------------------------------ L 100148030 1692 Liquids L 100149793 1712 Additive 0,05 0,00 Idle Volume 6826 -End of List- Fig.: Short Report Tour report Report Date 29.06.2011 15:07 Meter Name : - ? -...
  • Page 128 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow - EUR - kg ------------------------------------------ 0,00 EUR (Net Invoiced) 0,00 EUR (Gross Invoiced) Totals Meter Trip ------------------------------------------ Liquids L 100148030 1692 L 100149793 1712 214747 1441 Additive...
  • Page 129 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow consisting of several products are processed individually. A separate receipt is produced for each product.  If the OBC summary is activated, all products are combined on receipt.
  • Page 130 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow settings for the density parameters. There is a choice of “Seal”, “Supervisor” or “Driver”. When “seal” is selected, the electronic seal has to be broken to change product density. “Supervisor” means that at least the supervisor’s password is required to change the product density.
  • Page 131 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.6 CAN-Bus (global) Factory Name Seal Meaning Setting 3.1.6 Global CAN-Bus Changes on CAN Bus parameters take effect only after restart. 3.1.6.1 Global Node No. Node number (address) of the MultiFlow when several devices are linked to one external CAN Bus.
  • Page 132 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.10 EPE2 Factory Name Seal Meaning Setting 3.1.6.8 EPE2 (version 5.00 and higher) Activation of EPE2 required for optional residue 3.1.6.8.1 Use of EPE2 0 (no) discharge 3.1.6.8.2...
  • Page 133 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting 1 - Digital NC 3.1.6.9.7.3.2 Sensor type Type of sensor contact 1 – Digital NC contact 2 – Digital NO contact 3 –...
  • Page 134 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting Interface-end telegram delay on CAN bus. (0 .. 3.1.6.0.3 Transmission delay 50ms 250ms) 3.1.6.0.4 Outputs 3.1.6.0.4.1 Output1 3.1.6.0.4.1.1 Link 3.1.6.0.4.1.1.1 Output Local reference output to be linked 1 ..
  • Page 135 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting Up to 5 project dependencies can be defined. (0, 10 .. 3.1.6.0.4.4.1.5 Product dependency 0 (no) 3.1.6.0.4.4.2 Additional hose path 3.1.6.0.4.4.2.1 0 (no) Use output to control an additional hose path.
  • Page 136 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting Status of the allocated ext. output should assume 3.1.6.0.4.8.1.4 Inversion 0 (no) inverted status of the reference in/output. 3.1.6.0.4.8.1.5 Product dependency 0 (no) Up to 5 project dependencies can be defined.
  • Page 137 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow The MultiFlow is informed whether the it is the first or last on the CAN bus (termination has to be activated!) or not. 9.3.1.14.1.1 Dual Measuring System With the use of dual or multiple measuring systems several MultiFlows can share one printer.
  • Page 138 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow In the OBC operating mode the record line is defined using the form layout functions available. These provide opportunities for individual adjustment. The resulting heightened expectations for information presentation are satisfied by the offer of additional form modules.
  • Page 139 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.15 Valve Control Factory Name Seal Meaning Setting 3.1.8 Valve control 3.1.8.1 Path Selection Cal. Basic control Defines the structure of the measuring system used: 1.
  • Page 140 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting 3.1.8.5.2 Receipt draining 0 (no) (up to version 5.00) Parameter currently not in use. In a future program version will activate printout of a receipt after residue removal.
  • Page 141 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.18 Overfill prevention Factory Name Seal Meaning Setting 3.1.8.8 Overfill prevention 3.1.8.8.1 Overfill prevention The control element function is transferred from the overfill prevention to the MultiFlow. No monitoring, MultiFlow is not an element of the delivery safety system.
  • Page 142 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Discharge passes are described by the codes listed in the following table: Code Meaning Bypass: Discharge bypassing the overfill prevention system, but limiting the maximum flow rate to 199 ...
  • Page 143 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow The full electronic valve control uses the following output to valve assignment: Fully Expanded Basic With blow Exp. Flow Control Electronic Electronic Control down electron.
  • Page 144 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Description Page MultiFlow AIII Wiring diagram electronic control with flow control – (Belgian version) E51.351691 + dosage pump + overfill prevention amplifier MultiFlow AI Wiring diagram pneum. control switch E51.351190 + dosage pump MultiFlow AI Wiring diagram electronic control...
  • Page 145 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.3.1.18.5 Notes on Flow Control The flow control offers the user a precise preset of the discharge volume. The exact discharge will thereby achieved by a two stage shutdown. Flow control at general valve compilation: Flow control utilizing the GVLx-xM valve compilation (only dry hose):...
  • Page 146 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Parameter 3.1.8.4.1 controls the switchover from low to high flow: +: Entered value interpreted as volume (e.g. +50 = 50 liters): Switching over to high flow takes place after the set quantity has passed through (in this example after 50 liters).
  • Page 147 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow the delivery note number is prefixed by an 'L' and invoice numbers with an 'R'.  If using separate receipt numbering, it is not possible to use option 3 of the print menu to produce a delivery note from an invoice which has already been printed.
  • Page 148 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow no parity, 1 stop bit). This is accomplished using parameters 3.2.6 and 3.2.9. 9.3.2.2 Note about printing via can bus  In conjunction with the support of MultiControl2, the possibility for printing via the CAN bus was also created on the MultiFlow.
  • Page 149 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow  The return flow states the amount of product which the MultiFlow may count in the reverse direction before an error message is output. A normal value is eight liters.
  • Page 150 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting 3.3.2.2 Disable sensor Cal. 0 (No) (De)activates the MultiFlow temperature measurement. IMPORTANT: With an inactive sensor no compensation and no mass computation can be carried out! IMPORTANT: If no sensor is connected, the temperature inputs must be fitted with...
  • Page 151 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Additive Pump (also called “dosage pump” or “Injection pump”) 9.3.3.3 Factory Name Seal Meaning Setting 3.3.3 Additive Pump 3.3.3.1 Piston Capacity Cal. 50 (m) Additive volume per stroke in m...
  • Page 152 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow The ability to dose the additives after the measuring instrument depends on the software version. § Depending on the relevant regulations in the respective country it is possible that technical calibration approval may be required for the additive pump in the case of dosing after the measuring instrument.
  • Page 153 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting 3.5.nn.7.3 Product group Cal. Determination of the compensation algorithm in dependence of the product group: Packed Goods Crude Oil (API-Table 54A) Refined Oil (API-Table 54B)
  • Page 154 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Example: Driver's name in the third driver register Driver Register Parameter The following operators are defined in the factory settings: Employee ID. Password Access Right 000001 - - - Driver...

  • Page 155: Service Menu

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Take care that at least one master is defined, otherwise it is not possible to change the parameters which are subject to the master code.
  • Page 156 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.4.4 Initialize Factory Name Seal Meaning Setting Initialize M/Cal. Resets the device parameters (restores the factory settings). 4.4.1 Device Parameter M/Cal. (version 5.02 and higher) Resets the device parameters 4.4.2 Logbook...

  • Page 157: Logon

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow  Select the "Checksums" menu item (menu 4.7) to display the version number and the checksums of the calibration-relevant and calibration-relevant program chapter. These serve unique identification of the software.

  • Page 158: Residue Removal Via Epe2

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow automatic mode is activated with '2' the request for measuring system flushing is given only after the MultiFlow has detected a product change. Setting '0' means that the monitor is deactivated. In this case measuring system flushing can be activated only with menu item 7.

  • Page 159: Units

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Units  The MultiFlow supports various units, also those which deviate from the ISO standard. These are mainly US and British gallons. When the unit is selected, the appropriate conversion factor from the list shown below is automatically taken into account.

  • Page 160: Product Registers (35Nn

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.10 Product Registers (35nn..) The placeholder 'nn' in the product register corresponds to the product register number where 'nn' varies from 11 to 30. The product register number is extended by the parameter number to give unambiguous identification of a parameter in a product register.
  • Page 161 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 30 1) 3.5.n.n.6.4.4 Certificat costs Price per emission certificate 3.5.n.n.6.4.5 CO2CostInfo (De)Activation of the reference to the reimbursement claims regulated in Section 6 §2 and Section 8 §2.
  • Page 162 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting 3.5.nn.7 Temp. compensation 3.5.nn.7.1 Compensation Cal. 1 (yes) Activation of compensation: 1. No: Compensation deactivated. Printout carried out with VT. 2: Yes (receipt: V0&VT): VT and V15 printout carried out using form module 12.
  • Page 163 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow The values stated apply to the factory setting of the standard product “Heating oil EL” in the “DE” language version of the MultiFlow software. For all other products and language variants, the factory setting of the listed product parameters is '0'.
  • Page 164 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow  For products based entirely on mineral oils, the product group selection (parameter 3.5.nn.7.3) can still be set to 'Refined Oils'. Sening® is a registered trademark of FMC Technologies...
  • Page 165 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.10.2 Notes on the hose set  When using electronic selection of the hose set, to increase the operating safety and to minimize mixtures each product can be assigned to one (or more) defined hose set(s).

  • Page 166: Notes On Parameter Checks

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.11 Notes on Parameter Checks  Parameter checking has been designed to be more operator-friendly. If errors are found during parameter checking, then an alarm message appears on the screen which enables the operator to print a parameter report.
  • Page 167 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Error Message Meaning 3181 + Path Selection Extended Electr. The controller variant specified does not support 3333 + Pump Position Before additive injection. The resolution for the product price must be equal 31437 Currency Resol.

  • Page 168: Saving Parameters On The Chip Card

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Error Message Meaning (35.11.) Heating Oil For the product specified the temperature ------------------------------------------ compensation is activated; however, according to Parameter Conflict the setting of parameter 3322 no temperature 3322 + Disable Sensor sensor is installed.
  • Page 169 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Two different versions of the chip card are available: Picture on card Part No. CS-CC-64 CS-CC-512 Supplied Until 01 / 2004 From 02 / 2004 Up to version 1 card for parameters...
  • Page 170 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow ☺ Starting with MultiFlow software version 3.30[3.30] two cards of type CS- CC-64 are required; therefore after approx. 60 seconds the following message is displayed: „Please insert next Chip Card!“...

  • Page 171: Namur Sensor Interface - Mfsi

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow ☺ When all parameters have been successfully compared, the following message appears: "Data transfer complete!"  Acknowledge this message with <F1> ("OK"). ☺ The procedure is now completed. From software version 3.30[3.30] 1 x 16K chip card or 2 x 8K chip cards are used.
  • Page 172 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow  The sensor interface is connected to the MultiFlow via the external CAN bus. MFS and the MultiSeal system known SPD sensor interface MSSPD- N2 differ only by the internal software.
  • Page 173 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.13.1.2 Online mode Start screen with alarm message  In the online mode the SI FA Se ni ng Mu lt iF l ow interface notifies the MultiFlow Pro du ct a nd q ua nti ty Sel ec t wi th <...
  • Page 174 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow detected and saved in the logbook. The event data stored in the logbook contains the time stamp, the sensor number and the reported sensor status transmitted by the sensor interface.
  • Page 175 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Status information Immediately after switching on, the current statuses of all sensor inputs are detected and saved in the logbook. Example: SIStat: 01-------12---0 --- 0 SIIndx: 11-------22---5 --- 7 „Dome cover“...
  • Page 176 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow • Reset DIP 3 Function No reset Reset after power on • Monitoring without external power supply DIP 4 Function Monitoring not possible Monitoring possible The software is integrated into the used microcontroller.
  • Page 177 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting 3.1.6.9 Sensor interface 3.1.6.9.1 Use SI 0 (no) Activation of the optional sensor module 3.1.6.9.2 SI node Node number of sensor module when activated. 3.1.6.9.3 Compartment number S/M Number of compartments to monitor.
  • Page 178 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow • Extended parameter protection If this parameter is activated, all sensor interface settings are under seal protection and can only be changed when the W&M seal is broken. If the parameter is deactivated, the parameters are protected only by the master password.
  • Page 179 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Factory Name Seal Meaning Setting 3.1.6.9.7.4 In-line valve 3.1.6.9.7.4.1 Start sensor pos. Position of the first sensor 3.1.6.9.7.4.2 Sensor type 1 - Digital NC Type of sensor 1 –...
  • Page 180 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow • Sensor type There are 4 different sensor types to choose from: 1. Digital NC contact 2. Digital NO contact 3. Namur NC contact 4.
  • Page 181 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Sensor monitor status  Sen so r mo ni to r A message appears in the event section of the start INACTIVE screen as soon as the sensor monitor is Sen so r - (de)activated.

  • Page 182: Io Interface - Mfio2

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow The "Alarm event" parameter of the respective sensor must be set for the sensor monitoring. The monitoring ID is a consecutive number. It is set to zero only after a reset (versions 5.01 and earlier: menu 4.4, versions 5.02 and later: menu 4.4.1).
  • Page 183 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow  The IO interface has an inactivity monitor. For this purpose, special TMC telegrams must be sent at regular intervals from the MultiFlow via the CAN bus to the IO interface.
  • Page 184 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow  The additional hose paths must be entered in the hose approval. Abbreviations '1'..'8' apply here. '1' indicates in this case that the hose path associated with the external output 1 should be used for delivery.
  • Page 185 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow DIP switch Function Node Number Node Number No function No function • Node Number DIP 1 DIP 2 Node Number 9.14.2.2 MultiFlow The basic parameters for configuration of the IO module are compiled under the menu item 3.1.6.0.
  • Page 186 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow 9.14.3 Configuration of the outputs The IO module has 8 outputs and 2 inputs. The outputs are configured via the parameters compiled under menu item 3.1.6.0.4. Selection of the output ...
  • Page 187 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow to "7" correspond to the respective local output of the MultiFlow. Setting '0' determines that no output link is used for this output. • Input Determines whether the related output should be linked with an input, i.e.
  • Page 188 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow • Use hose path It is possible to specify a further hose path. This parameter is used to determine that the related output should be used to select an additional hose path.
  • Page 189 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow P r es s ST AR T to con ti nu e Se le ct io n: 1 Un me as ur ed 2 We t ho se 3 Dr y ho se ( P) 4 Dr y ho se ( S) 5 By pa ss...
  • Page 190 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Configuration of the MultiFlow Sening® is a registered trademark of FMC Technologies...

  • Page 191: 10 Form Description

    MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) 10 Form Description  The operation of a flow computer demands a range of forms. In particular, the invoice form is subject to individual user requirements and must therefore be capable of flexible arrangement.
  • Page 192 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) "COPY" should not, for example, appear on the original receipt. Correspondingly, the option 'K' is provided for the text field "COPY".  An example of the applications for the various attributes is described in the following.
  • Page 193 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) The following keys are used to control the list: Create and insert a new element Delete displayed element Display next element Edit element Terminate editing of form, cancel all changes after confirmation by the user Terminate editing of form The field to be edited is identified in pointed brackets >...
  • Page 194 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) 10.1.2.1 Positioning on the Receipt  To position the texts on the receipt the X and Y positions must be defined first. This position is then used as the reference point for all other definitions.
  • Page 195 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) The text "Receipt Title" in above mask serves as a placeholder for the receipt title, the ID of which is '20'. You define the print position on the receipt by entering line and column.
  • Page 196 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) 10.1.2.3 Example of a Receipt The example of a receipt illustrated below shows how the receipt definition must be carried out. Invoice Meter no.: PI-ME 97 Receipt no.: 001275 Delivery date:...
  • Page 197 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Form Element List Attr Opt ------------------------------------------ 0 Header 1 Litral 2 Meter ID :#20# 3 Receipt ID :#20# 4 Customer ID :#20# 5 Driver ID :#20# 6 Date :#20# 7 Time...
  • Page 198 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Attributes marked with an 'X' are supported: 10.1.3.1 Description of Text Modules Output Name Remarks This element is contained in each Form header form; it acts as 'anchor' for all user-defined elements.
  • Page 199 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Output Name Remarks End of discharge: ss:mm(:ss) Discharge end time Product name Product block #1 Contains product name and code, Volume at nn Cel XXXXXXX L discharge volume and type, gross w.
  • Page 200 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Output Name Remarks Data from calibrated parts of the Cal. Remark Standard text for printouts made device are enclosed by *. on forms not bearing the compulsory remark.
  • Page 201 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description nnnnnnn(.mm) (02/13) Formatting dependent on Discharge volume equipment setting and regulations Unit of measurement +nn(.m °C) Average temperature nnn(.m kg/m3) Average density “VT“ or Delivery mode (short) reference temperature in °C ®...
  • Page 202 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Output Name Remarks At the drop temperature Delivery mode (long) or, if compensated volume at nn ºC nnnnnnnn L Total Start VT Totalizer Reading for VT before start of the first discharge nnnnnnnn L Totalizer Reading for V0...
  • Page 203 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) The length of the placeholder always determines the minimum space to be reserved. If the output requires more space, the setting is ignored. The actual value is always placed aligned to the right in the reserved area.
  • Page 204 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) A character string represents the attributes used (max. combination of 3): Tally Attribute Explanation ASCII U220 printer Bold Condensed (yes) Italic Underlined Superscript Subscript Small (yes) Red Characters Double Height (yes)
  • Page 205 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) List of standard form elements as per minimum W&M requirement: Output Name Remarks Meter ID: 123456 Device ID Device Identification Receipt ID: 123456 Receipt ID Product name Product block #1 Contains product name and code, Volume at nn Cel...
  • Page 206 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) 10.1.3.6 Sum Blocks  The addition of sum blocks #2 and #3 (chapter 10.1.3 " Summary of Text Modules " / page 200) makes it easier to switch between two currencies (e.g.
  • Page 207 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Sample printout with placeholders: RECEIPT TITLE COPY Meter ID :#20# Receipt ID :#20# Deliv. Date :#20# Deliv. Start :#20# Deliv. End :#20# Customer ID :#20# PRODUCT BLOCK 1 SUM BLOCK --------------- Signed...
  • Page 208 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Receipt printout in descriptive form: (341) Spacing : Characters (X-Position) Clumn (342) Columns before printing : 0 (343) Lines before printing (344) Form descr. X Attr Opt ------------------------------------------ Standard receipt ( 0) 0 0...

  • Page 209: Definition Of An Original Delivery Note (Obc Operation)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) 10.2 Definition of an original delivery note (OBC operation) Since the OBC is not included in the calibration, the measurement system must print a discharge record (the so-called original delivery note) independently (i.e.
  • Page 210 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13)  The OBC is initially required to print a header, to position the printing head, and if necessary to make desired adjustments to the attributes (if not controlled by the measuring system).

  • Page 211: Printer Settings

    MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) For the above example the receipt definition is as follows: (341) Step-length : Character (X-Position) Column (342) Columns before print : 0 (343) Lines before print : 0 (344) Form descr.
  • Page 212 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13) Menu for Printer Settings  P r in te r Se tt in gs After selecting the menu point, you can select the Sel ec ti on : 32 desired printer.
  • Page 213 MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Form Description (02/13)  If the resends are not successful within the defined number of attempts, then an error message is printed. You must then write the receipt manually. With the DR-295 FDW the paper feed can alternatively occur automatically or manually using the operating panel.

  • Page 214: 11 Printing Out Reports

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports 11 Printing out Reports  Each delivery is saved by the Re p or ts MultiFlow and can be printed Sel ec ti on : out later as a report.

  • Page 215: Trip Report

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Factory Name Seal Meaning setting Other Sensor monitor Available reports about the sensor interface 0.1.1 Status Report about the current sensor monitor status. Menu item is only available when the sensor interface is active.

  • Page 216: 1 Sh Or T Re Po Rt

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports • All data contained in the detailed report (chapter 9.12 "Saving Parameters on the Chip Card" / page 172) is written to a chip card. Do not use the parameter chip card for the trip report because then all parameter data on the chip will be deleted.
  • Page 217 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports transferred, the message: "Data transfer successful!" appears. The last event in the report time-period is saved by the MultiFlow and is used during the next data transfer for determining the default setting for the required extent of the report.

  • Page 218: Detailed Report

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Example for a Short Report: The trip report shows three information blocks Trip Report beneath the report heading:  Block 1 Report date : 20.02.2003 10:30 shows details of each delivered product: Meter ID...
  • Page 219 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports The trip report shows three information blocks beneath the report heading: Trip Report Block 1 gives 3 lines of detailed information for each product delivered: Report date : 20.02.2005 10:30...

  • Page 220: Copy Receipt

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Final total Meter Tour - Unmetered (1/2) ------------------------------------------ - Wet hose (1/2) Liquids VT L 6472 5270 - Dry hose (1/2) Vo L 6419 5227 - Dry hose G (S) (Gravity discharge) Additives 0,00...

  • Page 221: Zero Bill

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Example of a Zero Bill: ZERO BILL Meter ID . Z-4711 Receipt ID : Deliv. Date : 27.05.2005 Deliv. Start : 14:47:35 Deliv. End : 14:37:36 Customer ID : 000000...

  • Page 222: Parameter List

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Parameter List MultiFlow: Z-4711 (16TK0001) Setup Count: 000017 (Sample printout! 05.08.2011, 15:51 For further information, please see the ========================================== annex) 31401 Billing w. VAT 3151 + Volume Resolution Serial Number : 16TK0001 3152 + No.
  • Page 223 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Printout “Driver list” 11.6.2  In the driver list shown below, under personnel ID number 7842 the driver “C. Anyone” is defined with the password “1”. No other drivers are defined.
  • Page 224 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports By: #15# 405(341)Spacing : Characters (342) Columns Offset: 0 (343) Lines Offset : 0 (344) Form Description X Attr Opt ------------------------------------------ Standard Receipt ( 0) RECEIPT TITLE ( 20) 0 DW...

  • Page 225: Event Report

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Example of event report: Event report Report date : 27.05.2005 12.23 Version : 3.40[3.40]UK MeterID : PI-ME 97 ------------------------------------------ The seal is approved! ------------------------------------------ 13.11.1997 14:32 Login 987122 (Anyone, Driver) 13.11.1997 14:45 Drop...
  • Page 226 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports 11.7.1 Log Book In the log book all activities on the device (in particular discharges) are logged. From this log the trip reports are generated. The log book (list of events) is designed as a ring buffer in which only a limited number of events can be retained (approx.
  • Page 227 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Event Data Meaning ReConfig detect Change to configuration detected. Stopped Communication with module cancelled. Error solved Error status automatically rectified. External IO module events. Status at input x of the IO module changed to status INx change:y Information about external sensor module.
  • Page 228 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Event Data Meaning Offline event read from sensor module logbook. Date(DDMMYY)-time (HHMMSS), I: Sensor index input (sensor group - sensor group index) 121208-090536 M:OFF I:19(2- In this example: SI input 19 (API coupling no.
  • Page 229 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Event Data Meaning Class1 Memory Test Self test: Working memory defective. Class2 Memory Test Self test: Working memory defective. Class3 Memory Test Self test: Working memory defective. Display Com.
  • Page 230 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Event Data Meaning No flow has been measured for an extended period of No Flow Error time. A parameter lies outside the range of values valid for Parameter Error the parameter (parameter conflict).

  • Page 231: Office Transfer

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Event Data Meaning Memory Class 2 Seal break on account of a defective memory. Memory Class 3 Seal break on account of a defective memory. Drain Alarms: Activated Connection MultiFlow <->...
  • Page 232 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports  Press the <Print> key to activate the reports menu. Reports menu ☺ Rep or ts The reports menu appears on the display. Se le ct io n: 1 Sh or t re po rt 2 De ta il ed r ep ort ...
  • Page 233 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Office transfer menu ☺ Off ic e tr an sf er The choice is between delivery and event data. Se le ct io n: 72 ☺...

  • Page 234: Update Report (Example)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Delivery data / EMIS -> Office  Del iv er y da ta Once the local data transfer from the MultiFlow to the EMIS is complete the EMIS starts to Dat a tr an sm is si on transfer the data to the office interface (e.g.

  • Page 235: 11.10 Sensor Monitor Status Report

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Sample printout of an update report: Update report Serial number : 00600004 Device number : - ? - Meter des. : - ? - : 000001 Personnel no.
  • Page 236 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Monitor status report Monitor status report Serial Number 600004 Serial Number 600004 Device Number Device Number - GNr - - GNr - Meter Name - ? - Meter Name - ? - Personal ID...

  • Page 237: 11.11 Event Report, Sensor Monitor

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports The GPS position can only be given if the MultiFlow is operating with a GPS-compatible EMIS. 11.11 Event report, sensor monitor • The event report prints out all sensor events entered in the logbook in chronological order with a number (xxxx).
  • Page 238 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Printing out Reports Parameter Description Valid values Condition description 0: logic unit 0 v: logic condition 1: logic unit 1 w: interpretation of condition 2: interruption dependent on sensor 3: short-circuit S: v(w) akt (active)

  • Page 239: 12 Carbon Dioxide Cost Sharing Act - Co2Kostaufg

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information 12 Carbon dioxide cost sharing act - CO2KostAufG The Carbon Dioxide Cost Allocation Act (CO2KostAufG) has come into force in the Federal Republic of Germany since January 1, 2023. The purpose of this law is to divide the carbon dioxide costs between landlords and tenants according to their areas of responsibility and ability to influence a building's carbon dioxide emissions.

  • Page 240: Extended Product Definition

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information 12.1 Extended product definition Product register (3.5.n.n.6.4) The placeholder 'n.n' in the product register corresponds to the product register number, where 'n.n' varies from 11 to 30. To clearly identify a parameter in a product register, the product register number is expanded to include the parameter number.
  • Page 241 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information CO2KostAufG. Deactivation reduces the space required by the form module “CO2KostAufG. Block” on the printout by 2 lines and is intended for customers whose forms already contain this information. Layout element “CO2KostAufG.

  • Page 242: 13 Error Messages And Status Information

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information 13 Error messages and status information  The MultiFlow error messages are subdivided into several categories. The errors with the lowest priority normally arise due to erroneous input by the operator.
  • Page 243 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information Message Meaning If the cumulative report data exceed the capacity of one chip card, the remaining data can be transferred to a second card, etc. In this event the following message appears after the data transfer.
  • Page 244 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information Message Meaning Printing is initiated in long distance transfer mode, but there is no paper in the printer. Note: When this error has been rectified, the printer continues to print automatically! Cause 1: During product transfer or self-loading the signal...
  • Page 245 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information Message Meaning If residual discharge has not been carried out the driver must press the <F2> key. A corresponding entry is then made in the logbook and this message is displayed: The MultiFlow remains in this operating state until it is switched off, i.e.
  • Page 246 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information Message Meaning After a discharge the pre-selected quantity entered has been reached and the MultiFlow therefore interrupts the discharge automatically. This message is displayed. During delivery: the return flow volume has exceeded max.
  • Page 247 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Error messages and status information Message Meaning The data transfer from the EMIS to the office interface was > > aborted if the user did not wait for the EMIS confirmation. The data transfer to the office interface is not supported by the >...

  • Page 248: 14 Technical Data

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Technical Data 14 Technical Data 14.1 MultiFlow Power supply 24 V DC (15V - 30V), P< 30 W Pulse input channel 2-channel input, type settable via SW 1. 12V 2-channel pulse transmitter (pnp output) 2.

  • Page 249: Multiflow (Control Device)

    MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Technical Data Functional safety The following guidelines are fulfilled: DIN 26053 Trusted measurement procedure for tank vehicles for the delivery of fuel oil EL, diesel fuel and biodiesel to the end- consumer 14.2 MultiFlow (Control Device)

  • Page 250: Operating Device

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Technical Data 14.3 Operating Device ATEX certificate TÜV 97 ATEX 1175 II 2G Ex ib IIB T4 Gb IECEx certificate IECEx TUN15.0027 Ex ib IIB T4 Gb in type of protection “Intrinsic Safety” Ex ib IIB Supply circuit I + II = 15 V = 360 mA...

  • Page 251: Printer Epson Tm-U295

    MN F09 002 US  DOK-383E  Issue/Rev.3.65 (02/24) MultiFlow  Technical Data 14.6 Printer EPSON TM-U295 Part designation TM-U295 flatbed receipt printer Printing method Shuttle Dot Matrix, 7-needle Symbols per line 42 or 35, (65mm) Symbols per inch 13,5/16,2 Print speed about 2.3 lines/s Print width...

  • Page 252: 15 Miscellaneous Information

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information 15 Miscellaneous Information 15.1 Extract from the Preliminary Certificate • The preliminary test establishes whether the component conforms to the requirements of the type approval. It can be submitted for calibration in conjunction with a pre-tested measuring apparatus in a measuring system set up according to weights and measures legal requirements and operated by a weights and measures authority.

  • Page 253: Dil Switch Settings For Dr-298-Fdw

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information 15.2 DIL Switch Settings for DR-290/DR295  The following factory settings are to be checked on the printer in the event of a fault: Switch Position Function SW-1 Ignore transmission errors...

  • Page 254: Dil Switch Settings Of Tm-U220

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information 15.4 DIL Switch Settings of TM-U220 The switches that determine the operating mode of the TM-U220 are located behind the flap at the bottom of the device (see manual). ...

  • Page 255: Dil Switch Settings Tm-U295

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information 15.5 DIL switch settings TM-U295 From MultiFlow version 3.45[3.45]DE and higher you can connect the TM-U295 to the MultiFlow. The switches to set the operating mode of the TM-U295 are located on the bottom of the unit (see manual).
  • Page 256 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information  Settings to the MultiFlow: Menu option Value to be entered Meaning 3.2.1 TM-U295 Printer selection 3.2.6.1 LDT protocol 3.2.4 Even parity Parity check 14.6.2 MultiFlow versions from V3.49 ...

  • Page 257: Tally Printer Mip 480 - Settings And Parameterization

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information  Settings of the MultiFlow. Name Setting Meaning 3.2.1 Printer Selection 7: TM-U295 3.2.2 Interface Type RS232 3.2.3 Transfer Rate 9600 baud 3.2.4 Parity Check 1: Even Parity 3.2.5 Lines per Page Number of lines on a page...
  • Page 258 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information - Baud rate: <9600>, - Parity: <EVEN> - Data bits: <8Bit>.  These parameters may be printed out as follows: Press the POWER/SLEEP key and immediately afterwards press the key.
  • Page 259 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information  key to set “PARITY” to <None>. LOAD/FF Press the (NEXT)  To set “PARITY” to <Even>, press the LOAD/FF key until (NEXT) “EVEN” is printed out. ...
  • Page 260 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information  Exit Setup mode  Press the READY/CLEAR (SETUP/EXIT) 14.7.5 MultiFlow parameterization • Parameter 3.2.1. Printer selection : FX • Parameter 3.2.2. Interface : RS232 • Parameter 3.2.3. Baud rate : 9600 •...

  • Page 261: Program Versions

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information  The DC converter is connected as demonstrated below: Since the input is electrically isolated from the output, the negative cables need to be bridged in order for the setup to function correctly Conformance to the EU guideline 89/336/EWG and to the German EMC regulation (EMVG) 14.9...
  • Page 262 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • Monitoring product and additive load • Automatic interruption of discharge when no flow is detected (timeout) • Trip reports on chip cards, digital office link •...
  • Page 263 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information 14.9.6 Version 3.15 • Support of the metering of additives after the measuring system, i.e. the additive is separately shown on documents (delivery receipt, invoice, trip report etc.) This function is currently only active in the Belgian version.
  • Page 264 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • Printout of V0 / VT on the delivery receipt can take place in a product- dependent manner 14.9.10 Version 3.45 • Transfer of the totalizer data to the EMIS interface •...
  • Page 265 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • Flushing volume: Parameter 3.1.5.8 has been extended. The previous parameter for the minimum flushing volume has been changed from 3.1.5.8 to 3.1.5.8.3. Further additions are: 3.1.5.8.1 now offering a choice of flushing products from the product list, specification of the standard flushing volume under 3.1.5.8.2 and activation of a special flushing monitor in OBC mode under 3.1.5.8.4.
  • Page 266 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • IO status display during delivery • Maximum additive mixing ratio increased • Support for the external IO interface incl. user-specific links and additional hose paths •...
  • Page 267 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • Activation of sensor monitoring no longer subject to supervisor password • Software revision due to updated hardware components • Revisions for the operation with MultiControl2 (MC2) •...
  • Page 268 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • Separate delivery note and invoice numbers: The newly introduced parameter 3.1.9.1 enables the use of different receipt numbers for delivery notes and invoices. These can be pre-set under 3.1.9.2 – 4. If two numbering cycles are used, the invoice and delivery note numbers are respectively prefixed by different identifiers (e.g.
  • Page 269 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • Error message on printer in the case of defective display communication • Rectification of problem within the booter housing • (De)activation of automatic sending of delivery data to the EMIS •...
  • Page 270 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • Broadcast OPEN in standalone mode if MultiFlow is the printer administrator • Adjustable protection level for density input • Revision of time synchronization with EMIS •...
  • Page 271 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Miscellaneous Information • The previous form of temperature compensation for mixed products such as E10 is being replaced by the re-evaluation process currently specified. • Logbook handling revised 14.9.27 Version 5.12 (MID) •...
  • Page 272 Version 5.26 (MID) • FTL - Offline-Sensor events encapsulated in Start- (‚63‘) and Stop-Record (‚64‘) 14.9.42 Version 5.27 (MID) • StartUp-Screen "TechnipFMC" • Timestamp in EVE-FTL-Data modified (TruckEye) • „IL“ Variant available (requires Display-SW >=3.04) • Carbon Dioxide Cost Allocation Act (CO2KostAufG) 14.9.43...

  • Page 273: 15 Software Update

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update 15 Software update 15.1 Initial remarks When updating the software of the MultiFlow (by downloading it or by exchanging the EPROM) the following documents should be at hand, or should have been printed out in advance.
  • Page 274 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update 15.2.2 Required hardware Connect PC adapter (F. A. Sening Part No. MFLOW-PCADAP) to the printer cable of the Sening system instead of the printer. In addition you need a serial cable with adequate length provided with the following allocations: 9 point SUB-D female plug...
  • Page 275 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update  Put laptop and Sening components into operation.  Start the download software (UDO.EXE) on the laptop. This program is available upon request from our Service department. If software program is not yet installed, install same from the software disk.
  • Page 276 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update  The download software enables a connection to the device (e.g. MultiFlow) and prepares the download.  Choose the command ‘Download‘ in the ‘Speicher‘ menu.  The software will open a window to select the file.
  • Page 277 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update  Download will take about 5 minutes. The progress of download is visible through the blue bar at the bottom of the window.  Finish download program by clicking the button ‘Abbrechen’. ...

  • Page 278: Software Update By Exchanging The Eprom Chip

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update  Print and compare delivery note.  Set and print out W&M seal. 15.3 Software update by exchanging the EPROM chip  Check if the system is functioning correctly. ...
  • Page 279 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update Remove old EPROM by using adequate tools only, e.g. EPROM extractor supplied by RS Components - part. no. 404-727 or F.A. Sening Part No. 7351002.  Place both claws of the extractor into the socket, press EPROM extractor slightly against the socket and push the legs of the EPROM...
  • Page 280 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update  Note: Do not pull the legs of the tool to remove the EPROM!  Insert the new EPROM in the socket.  Note the positioning of the flattened (bevelled) corner: ...
  • Page 281 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update  Re-assemble the devices (grease threads!).  Switch on and initialize MultiFlow (parameter 4.4).  Read out parameter from chip card (parameter 4.5.1).  Check receipt ID (parameter 3.1.9). ...

  • Page 282: Disassembly Of The Ex-Housing

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update 15.4 Disassembly of the Ex-housing The correct disassembly of the Ex-housing is described in the following:  Please also refer to page 328. Sening® is a registered trademark of FMC Technologies...

  • Page 283: Spare Parts

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update 15.5 Spare Parts Keep aware of the regulations for the EX protection! Must be changed AI junction boxes cable glands, so you can only use Ex- certified cable glands. (for attention see chapter 3 "General Installation Instructions"...
  • Page 284 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Software update Sening® is a registered trademark of FMC Technologies...

  • Page 285: 16 Character Sets Available For The Multiflow

    MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Character sets available for the MultiFlow (02/13) 16 Character sets available for the MultiFlow 16.1 PC437 character set This character set is used for the west European and English-speaking area.

  • Page 286: Pc852 Character Set

    MN F09 002 US  DOK-383E  Issue/Rev 3.65 (02/24) MultiFlow  Character sets available for the MultiFlow 16.2 PC852 character set This character set is used for the middle European and Slavonic language area. Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Sening®...

  • Page 287: Pc866 Character Set

    MN F09 002 US  DOK-383E  Issue/Rev. 3.62 MultiFlow  Character sets available for the MultiFlow (02/13) Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII 16.3 PC866 character set This character set contains Cyrillic characters. Hex Dez.
  • Page 288 MN F09 002 US  DOK-383E  Issue/Rev 3.65 (02/24) MultiFlow  Character sets available for the MultiFlow Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Hex Dez. ASCII Sening® is a registered trademark of FMC Technologies...

  • Page 289: 17 Address And Contact Details

    +49 (0)4101 304 - 0 (Zentrale) Fax: +49 (0)4101 304 - 152 (Service) Fax: +49 (0)4101 304 - 133 (Verkauf) Fax: +49 (0)4101 304 - 255 (Auftragsbearbeitung) E-Mail: info.ellerbek@technipfmc.com Web: http://info.smithmeter.com/literature/Sening_Handbook_Main.html ® Sening is a registered trademark of FMC Technologies...
  • Page 290 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Sening® is a registered trademark of FMC Technologies...

  • Page 291: Appendix A. Drawings And Approvals

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Appendix A. Drawings and Approvals Contents of Drawings Title Weather-proof housing (AIII version) E61.350979 Wiring Diagram for MultiFlow (AIII version) E51.350956 Wiring diagram ADD-Dosage pump (AIII version) E61.351284 Wiring diagram Dosage pump ADD150 and MultiFlow AI E51.351988...
  • Page 292 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Relation of Functions to Drawing Numbers AI version Additional Plan for Standard Additional Plan for Function Level Control Plan Dosage Pump (ASE-x-MF) Standard control E51.350 958 E51.351 190 not planned...

  • Page 293: Categories Of Parameters

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Appendix B. Parameter summary Display Configuration / Device Settings Factory Name Seal Meaning Setting Display Config. Contrast Display contrast setting Date and Time Sets internal clock IMPORTANT: Date is subject to W &...

  • Page 294: Operating Options

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Operating Options Factory Name Seal Meaning Setting 3.1.4 Operating Options 3.1.4.1 Operating Mode 0 (Standard) Selection of operating mode: Standard, support of single and multiple metering systems TMC mode, single and multiple metering systems in conjunction with a TMC...
  • Page 295 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Activates request for an additional copy of the receipt 3.1.4.5.7.1 Copy query 0 (no) immediately after printing the original. 3.1.4.5.7.2 Number of Copies Standard-setting for the number of copies to be printed after the printing of the original parameters in conjunction with 3.1.4.5.7.1.

  • Page 296: W & M Restrictions

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details 3.1.4.0.3 Volume limit Only for the English version of the program. Parameter not active in German version. 3.1.4.0.4 OBC summary 0 (no) Summary of all orders transmitted by the OBC on one receipt W &...

  • Page 297: Can-Bus (Global)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details CAN-Bus (global) Factory Name Seal Meaning Setting 3.1.6 Global CAN-Bus Changes on CAN Bus parameters take effect only after restart. 3.1.6.1 Global Node No. Node number (address) of the MultiFlow when several devices are linked to one external CAN Bus.

  • Page 298: Epe2

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details EPE2 Factory Name Seal Meaning Setting 3.1.6.8 EPE2 (version 5.00 and higher) 3.1.6.8.1 Use of EPE2 0 (no) Activation of EPE2 required for optional residue discharge 3.1.6.8.2 EPE2 node...

  • Page 299: Io Interface

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting 1 - Digital NC 3.1.6.9.7.3.2 Sensor type Type of sensor contact 1 – Digital NC contact 2 – Digital NO contact 3 –...
  • Page 300 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting Interface-end telegram delay on CAN bus. (0 .. 3.1.6.0.3 Transmission delay 50ms 250ms) 3.1.6.0.4 Outputs 3.1.6.0.4.1 Output1 3.1.6.0.4.1.1 Link 3.1.6.0.4.1.1.1 Output Local reference output to be linked 1 ..
  • Page 301 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting 3.1.6.0.4.4.1.5 Product dependency 0 (no) Up to 5 project dependencies can be defined. (0, 10 .. 3.1.6.0.4.4.2 Additional hose path 3.1.6.0.4.4.2.1 0 (no) Use output to control an additional hose path.

  • Page 302: Can-Bus (Lokal)

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting Status of the allocated ext. output should assume 3.1.6.0.4.8.1.4 Inversion 0 (no) inverted status of the reference in/output. 3.1.6.0.4.8.1.5 Product dependency 0 (no) Up to 5 project dependencies can be defined.

  • Page 303: Flow Control

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Flow Control Factory Name Seal Meaning Setting 3.1.8.4 Flow Control 3.1.8.4.1 High Flow Rate ON 5.0 (liter) Threshold for switchover from a reduced to a higher flow rate: Positive value: Amount in liters...

  • Page 304: Overfill Prevention

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting Residue removal 3.1.8.5.2 0 (no) (version 5.00 and higher) timeout Timeout for the autom. draining of the measuring system with the aid of the EPE2 in "EPE2 automatic" mode.

  • Page 305: Receipt Id

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Receipt ID Factory Name Seal Meaning Setting 3.1.9 Receipt number 3.1.9.1 Separate receipt Cal. 0 (no) 0: Joint numbering cycle for delivery note and number invoice numbers 1: Separate delivery note and invoice numbers...

  • Page 306: Pulse Inputs

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Pulse inputs Factory Name Seal Meaning Setting 3.3.1 Pulse counter 3.3.1.1 Pulse Rating Cal. Number of pulses per liter (see preliminary certificate and measuring system name-plate). 3.3.1.2 Max.

  • Page 307: Form Description

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Additive Pump (also called “Dosage Pump” or “Injection Pump”) Factory Name Seal Meaning Setting 3.3.3 Additive Pump 3.3.3.1 Piston Capacity Cal. 50 (m) Additive volume per stroke in m . 3.3.3.2 Meter Factor Cal.
  • Page 308 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting 3.5.nn.7.3 Product group Cal. Determination of the compensation algorithm in dependence of the product group: Packed Goods Crude Oil (API-Table 54A) Refined Oil (API-Table 54B)
  • Page 309 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting 3.5.n.n.6.1.1 Scale price 1 Price setting for delivery quantity from 0 upwards. 3.5.n.n.6.1.2 Scale price 2 Price setting for user defined delivery quantity. 3.5.n.n.6.1.3 Scale price 3 Price setting for user defined delivery quantity.
  • Page 310 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details 3.5.nn.7.7.2 Max. temperature Cal. Max. temperature for temperature volume compensation -120 .. 120°C Sening® is a registered trademark of FMC Technologies...

  • Page 311: Driver List

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting 3.5.nn.7.7.3 Change factor Cal. Density change factor to calculate according to "Method 1" in [1 / K] -1000.0 1000.0 ..., Minimum value: + /-1.0E-7 Allowed hoses for this product, see parameter 3.5.nn.8...

  • Page 312: Electronic Seal

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Electronic Seal Factory Name Seal Meaning Setting Electronic seal 4.1.1 Display Seal Display status of electronic W & M seal. 4.1.2 Print Seal Print status of electronic W & M seal. 4.1.3 Break Seal Breaks the electronic W &...

  • Page 313: Chip Card

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning Setting 4.4.2 Logbook M/Cal. (version 5.02 and higher) Resets the internal logbook Chip Card Factory Name Seal Meaning Setting Chip card Loads all parameters and delivery receipt definition 4.5.1 Write Parameters...

  • Page 314: Product Definition

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Product Definition The factory settings already include a number of predefined products. They are located in the product register under the position stated in the following table as (No.).
  • Page 315 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Factory Name Seal Meaning setting Chip card Saving a trip report to a chip card. Office transfer 7.2.1 Delivery data Only available in combination with an EMIS. Transfer of delivery data to the EMIS.

  • Page 316: Index

    MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Index Chip card .. 46, 117, 168, 214, 215, 4-Star........92, 306 Chip card, configuration ... 168 Electrical installation ....30 Chip card, loading parameters 170 Electronic .........
  • Page 318 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Interface type..59, 149, 210, 253, Operating mode ....118, 287 Query, language ...... 124 Operation mode ...... 121 Quick .......... 19 Inversion......183, 187 Operational checks ....37 Invoice ....17, 79, 190, 198 Order no ........
  • Page 319 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) MultiFlow  Address and contact details Trigger interval ......177 Valve control, electronic ... 143 Trip........213, 214 Version number ......45 Target value ......106 Voltage supply......37 Trip report ........44 Tax rate ........
  • Page 320 Drawings E61.350979 - MultiFlow complete - Weather-proof housing (AIII version) MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 321 E51.350956 - Wiring Diagram for MultiFlow (AIII version) MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 322 E51.351989 - Wiring diagram Dosage pump ADD350 and MultiFlow AIII MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 323 E51.351125 - Wiring diagram electronic control + dosage pump + overfill prevention amplifier MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 324 E51.351127 - Wiring diagram electronic control + flow control MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 325 E51.351691 - MultiFlow AIII Wiring diagram electronic control, with flow control + dosage pump + overfill prevention amplifier MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 326 E52.350953 - Sealing Arrangement for MultiFlow (AIII version) – page 1 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 327 E52.350953 - Sealing Arrangement for MultiFlow (AIII version) – page 2 MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 328 E51.351100- Disassembly of the Ex-housing MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 329 E61.350992 - MultiFlow complete explosion-proof housing (AI version) MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 330 E51.350958 - Wiring Diagram for MultiFlow (AI version) MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 331 E51.351190 - MultiFlow AI Wiring diagram pneum. control switch + dosage pump MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 332 E51.351189 - MultiFlow AI Wiring diagram electronic control + dosage pump + overfill prevention amplifier MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 333 E51.351126 - MultiFlow AI Wiring diagram electronic control + flow control MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 334 E51.351692 - MultiFlow AI Wiring diagram electronic control with flow control + dosage pump + overfill prevention amplifier MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 335 E52.351015 - Wiring diagram RS232 - Interface (AI version) MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 336 E51.351988 - Wiring diagram Dosage pump ADD150 and MultiFlow AI MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 337 E61.352218 - EMIS and FlowComputer Basic Component Layout (Variant 4) MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 338 E61.352217 - Basic Wiring Diagram EMIS and FlowComputer (Variant 4) MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 339 E51.352078- Emergency power supply MF-EPS MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 340 E51.352088 - Emergency power supply for the flow computer MultiFlow of a MID system MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 341 E52.350952 - Sealing Arrangement for MultiFlow AI - page 1 MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 342 E52.350952 - Sealing Arrangement for MultiFlow AI - page 2 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 343 E51.350931 - Sensor, pre approval Connection Thread G3/4 MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 344 E51.250828 - Pneumatic circuit diagram for delivery MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 345 E51.250842 - Pneumatic circuit diagram Meter package with tank truck computer (TMU) MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 346 E51.250857 - Pneumatic circuit diagram, Meter package with tank truck computer (TMU + AS) MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 347 E51.351143 - Block diagram Overfill prevention amplifier type ASE-D-MF MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 348 E51.351740 - Solenoid valves connection diagrams & order codes MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 349 E61.351994 - EPE2 connection to residue discharge (with MultiFlow) MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 350 E61.352182 - MultiFlow Namursensor-Interface complete - MFSI MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 351 E51.352198 - Wiring diagram Namursensor-Interface - MFSI MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 352 E51.352180 - MultiFlow - I/O-Interface complete - MFIO2 MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 353 E51.352197 - Wiring diagram I/O-Interface - MFIO2 MN F09 002 US  DOK-383E  Issue/Rev. ® 3.65 (02/24) Sening is a registered trademark of FMC Technologies...
  • Page 355 W & M seal form (blank DOK-386) MN F09 002 US  DOK-383E  Issue/Rev. 3.65 (02/24) ® Sening is a registered trademark of FMC Technologies...
  • Page 356 The specifications contained herein are subject to change without notice and any user of said specifications should verify from the manufacturer that the specifications are currently in effect. Otherwise, the manufacturer assumes no responsibility for the use of specifications which may have been changed and are no longer in effect. Contact information is subject to change.
