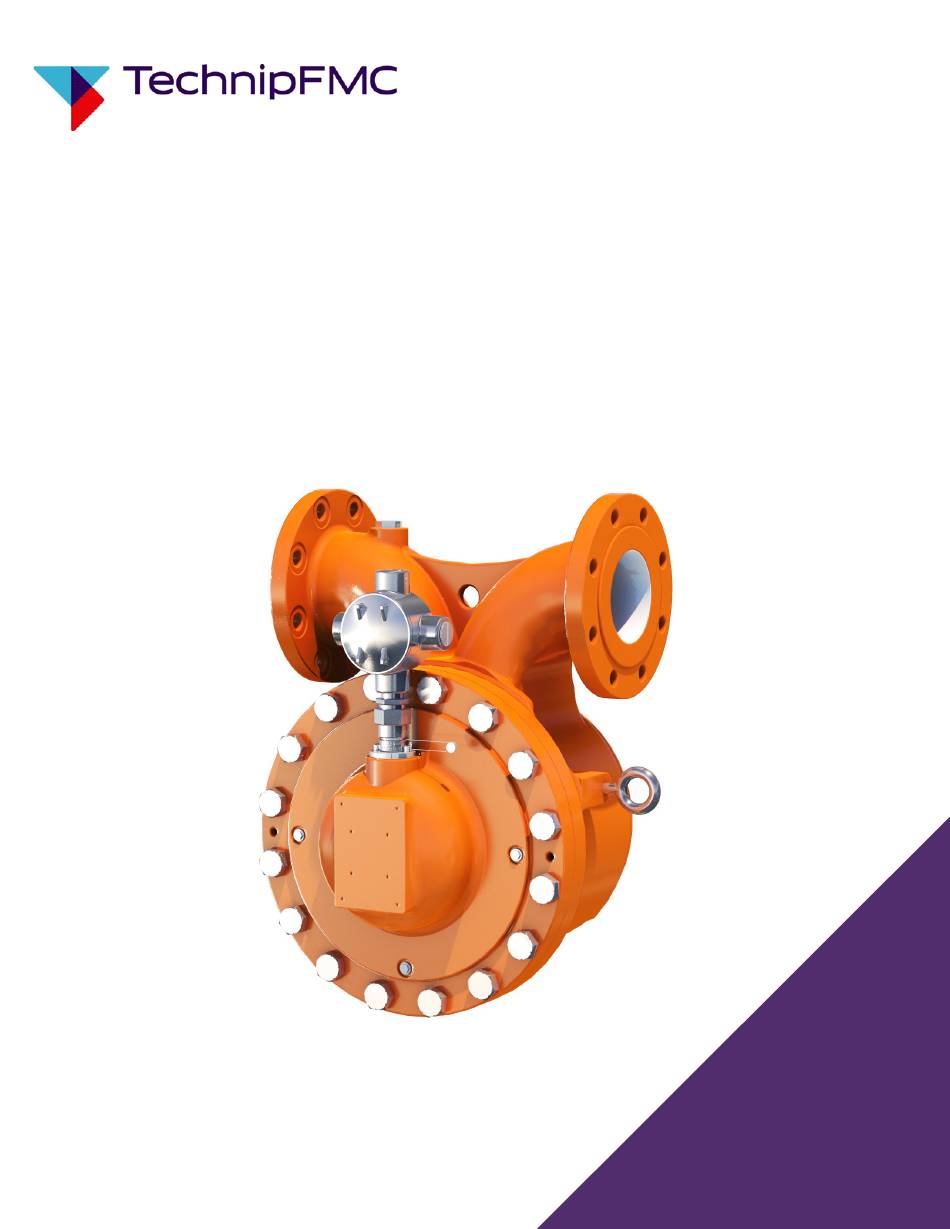

- Page 1 Smith Meter PRIME 4 ® Installation and Operation Manual Bulletin MN01038 Issue/Rev. 1.0 (11/20) November 2020...
- Page 2 Important All information and technical specifications in this document have been carefully checked and compiled by the author; however, we cannot completely exclude the possibility of errors. TechnipFMC is always grateful to be informed of any errors; contact us on TechnipFMC.com.
-
Page 3: Table Of Contents
PRIME 4 Installation and Operation Manual Contents 1 Overview..........1 1.1 Principle of Operation . -
Page 4: Overview

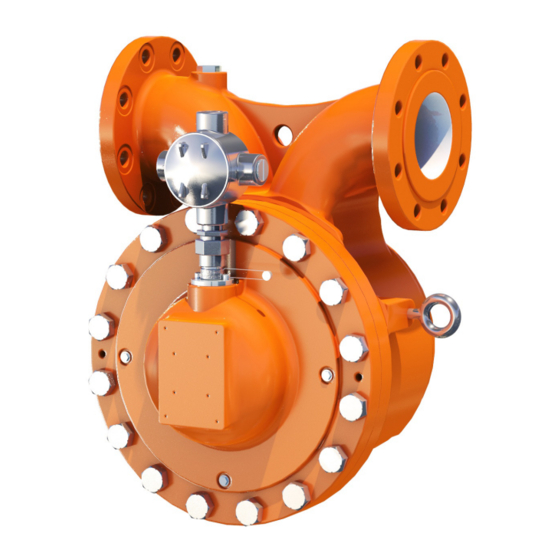

PRIME 4 Installation and Operation Manual 1 Overview The Smith Meter PRIME 4 meter is a rotary positive-displacement meter that measures product flow in two directions. The accurately machined housing contains a rotor which revolves on tungsten carbide bearings and carries two evenly spaced Polyketone blades. As liquid flows through the meter, the rotor and blades revolve about a fixed cam, causing the blades to reciprocate. - Page 5 PRIME 4 Installation and Operation Manual In the example below, a quarter revolution has been made. Blade A is still extended and blade B is now fully extended. An exact known volume of new liquid is now in the measuring chamber. One-eighth of a revolution later, the measured liquid moves out of the meter.
-
Page 6: Installation
PRIME 4 Installation and Operation Manual 2 Installation 2.1 Overview The PRIME 4 meter is a precision instrument and should be treated accordingly. Prior to installation, it should be protected from adverse weather conditions and accidental abuse. Adequate pipe support must be provided close to the meter because the meter is supported by the flanges. -
Page 7: Ul Brazil-Approved Installations
PRIME 4 Installation and Operation Manual • IEC 60079-1 7th Edition, EN 60079-1:2014 All cable entries, stopping boxes, or plugs should be certified according to the requirements in EN 60079-1 with 3/4-inch 14 NPT threaded entry. Wiring conductors and cable glands, if used, must have a tempera- ture rating of at least 70 ºC. -
Page 8: Wire Connections
PRIME 4 Installation and Operation Manual For wiring systems using cable glands, the cable ends must be installed securely and, depending on the type of cable, they must be adequately protected against mechanical damage. This requirement may be ignored when a cable gland and connecting cable are used in such a way that there is no risk of mechanical damage to the installation. -
Page 9: Operation
PRIME 4 Installation and Operation Manual 3 Operation 3.1 Start-Up Procedure When the PRIME 4 meter is first installed in the line, air is in both the line and inside the meter’s rotor. The air takes some time to work out. If the meter is subjected to hydraulic shock during this vulnerable time, the rotor can pinch down on the blades and cause blade breakage or cam shaft rotation. -
Page 10: Referenced Publications
PRIME 4 Installation and Operation Manual 4 Referenced Publications The following publications from the American Petroleum Institute are referenced in this manual: • Manual of Petroleum Measurement Standards • API Chapter 4—Proving Systems • API Chapter 5, Section 5.2—Measurement of Liquid Hydrocarbons by Displacement Meter Systems API Chapter 12, Section 2 Field Manual—Instructions for Calculating Liquid Petroleum Quantities Measured by Turbine or Displacement Meters Referenced Publications... - Page 11 PRIME 4 Installation and Operation Manual Referenced Publications...
- Page 12 (i) is the property of TechnipFMC plc, (ii) is disclosed by TechnipFMC only in confidence, and (iii) except as TechnipFMC may otherwise permit in writing, is to be used, dis- closed or copied only to the extent necessary for the evaluation and use thereof by the recipient.
