TP-Link CAP1750 Installation Manual page 3

Note: Images may differ from your actual product.

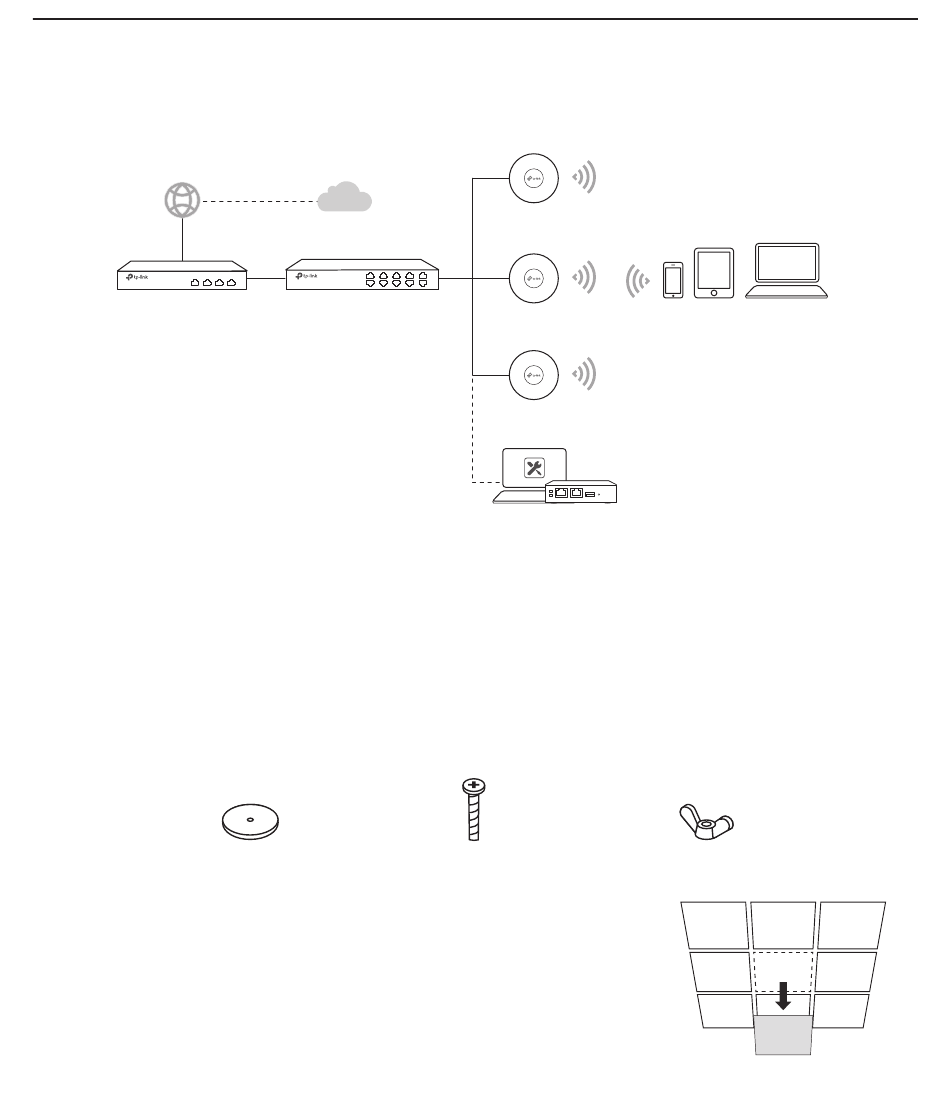

Network Topology
A typical network topology for the AP is shown below.
Internet
Router
Some APs can be configured and monitored centrally via a controller. For details, refer to the product
specifications and the manual for the relevant product or controller. You can get the controller from
https://www.tp-link.com or contact the sales staff.
Hardware Installation
■ Option 1: Ceiling Mounting
Follow the steps below to install the AP with the provided accessories:
Note: The mounting bracket and the accessories (quantity and size) may vary by product.
1
Remove the ceiling tile�
Cloud-Based Controller
Switch
Washers
AP
AP
AP
Software/Hardware Controller
Pan-head Screws
1
Clients
Wing Nuts
