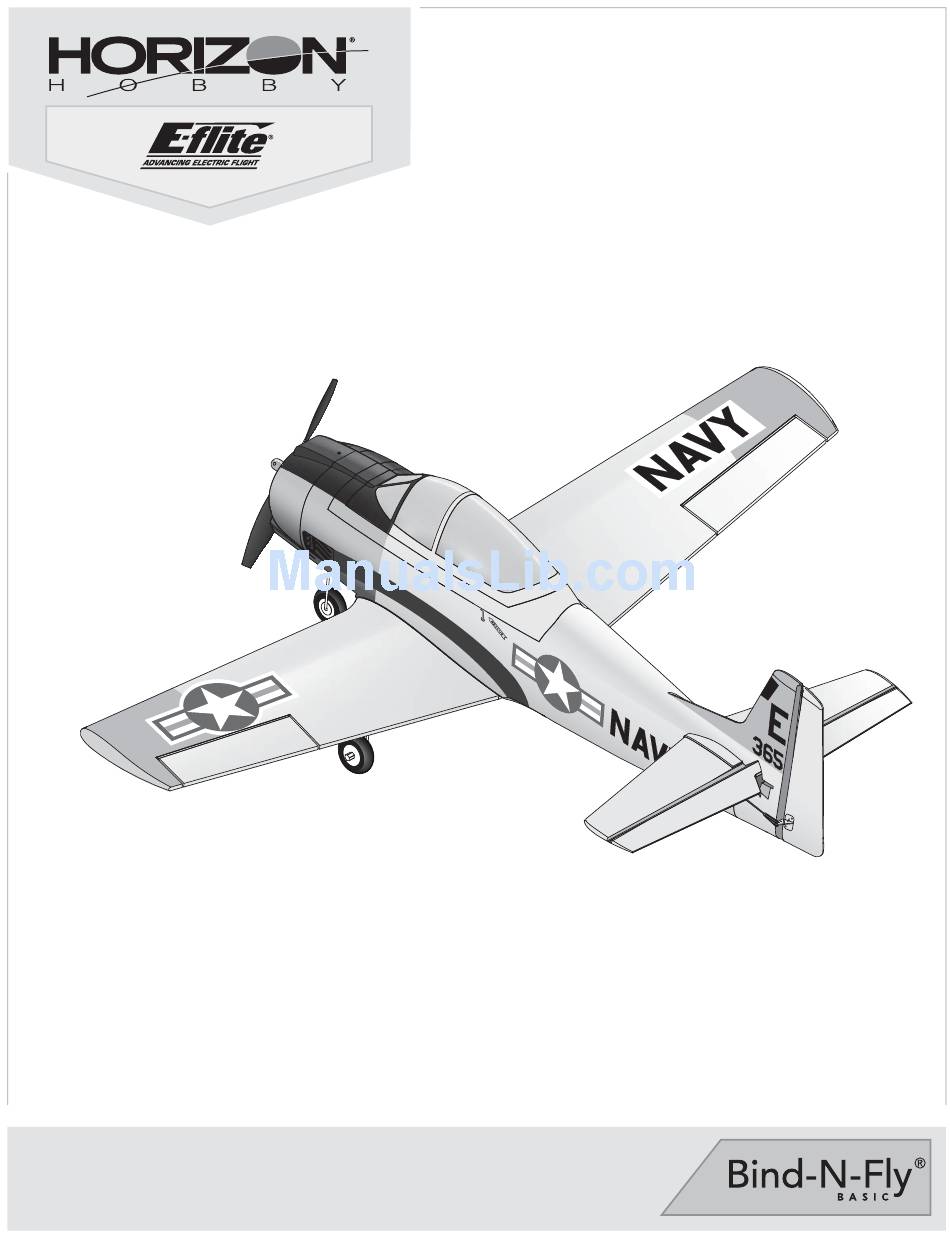

- Page 1 T-28 Trojan Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn- ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury. -
Page 3: Table Of Contents
Box Contents Quick Start Information Blank (Acro) Model Servo Reversing: Rudder: Reverse Transmitter Elevator: Normal Setup Aileron: Reverse DO NOT Reverse Throttle Travel Adjust ( All Surfaces): 100% Hi Rate Low Rate =13mm =9.5mm =13mm =9.5mm Dual Rates =16mm =13mm =16mm =13mm =22mm... -
Page 4: Prefl Ight
Prefl ight Remove and inspect contents. Bind the aircraft to your transmitter. Read this instruction manual thoroughly. Make sure linkages move freely. Charge the fl ight battery. 10 Perform the Control Direction Test with the transmitter. Fully assemble the airplane. 11 Adjust fl... -
Page 5: Landing Gear Installation
Model Assembly Continued Landing Gear Installation 1. Turn the model so the bottom of the wing faces up. 2. Install the main landing gear by inserting the main gear struts (A) into the corresponding gear plate hole located on each wing. 3. -
Page 6: Clevis Installation
Model Assembly Continued Clevis Installation • Pull the tube from the clevis to the linkage. • Carefully spread the clevis, then insert the clevis pin into the desired hole in the control horn. • Move the tube to hold the clevis on the control horn. Control Surface Centering After assembly and transmitter setup, confi... -
Page 7: Transmitter And Receiver Binding
Transmitter and Receiver Binding Binding is the process of programming the receiver to recognize the GUID Remove the bind plug from the bind port. (Globally Unique Identifi er) code of a single specifi c transmitter. You need to ™ ® ®... -
Page 8: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection We recommend the E-fl ite ® 1800mAh 11.1V 3S 30C Li-Po battery (EFLB18003S30). Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-fl... -
Page 9: Control Direction Test
Control Direction Test Bind your aircraft and transmitter before performing these tests. Move the controls on the transmitter to ensure the aircraft control surfaces move correctly. After doing the Control Test, correctly set the failsafe. Make sure the transmitter controls are at neutral and the throttle and throttle trim are in the low position, then rebind the model to your transmitter. -
Page 10: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. NOTICE: If a crash is imminent, reduce the throttle and WARNING: trim fully. Failure to do so could result in extra dam- Flying Field Always decrease age to the airframe, as well as damage to the ESC and throttle at propeller Always choose a wide-open space for fl... -
Page 11: Motor Service
Motor Service CAUTION: Always disconnect the fl ight battery before performing motor service. Disassembly 1. Use a tool to remove the spinner nut (A) from the collet (B). 2. Remove the propeller (C), backplate (D) and collet from the motor shaft. 3. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed... -
Page 13: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition. -
Page 14: Limited Warranty
Product, (iv) attempted service by copy of your original sales receipt must be included for warranty consideration. anyone other than a Horizon Hobby authorized service center, (v) Product not Be sure your name, address, and RMA number are clearly written on the purchased from an authorized Horizon dealer, or (vi) Product not compliant outside of the shipping carton. -
Page 15: Contact Information
Compliance Information for the European Union EFL T28 BNF Basic (EFL4450) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provi- sions of the R&TTE and EMC Directive. -
Page 16: Replacement Parts
T-28 Bugfahrwerk Axe de direction de roulette de nez : Braccio di guida del ruotino di coda: PKZ4408 Nose Gear Steering Arm: T-28 Trojan Steuerarm Bugfahrwerk T-28 Trojan T-28 Trojan Clear Canopy & Pilot with Pedestal: Canopy transparent & Pilote avec Tettuccio trasparente e pilota con... - Page 17 © 2015 Horizon Hobby, LLC. E-fl ite, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, Z-Foam, ModelMatch, EC3, Celectra and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
