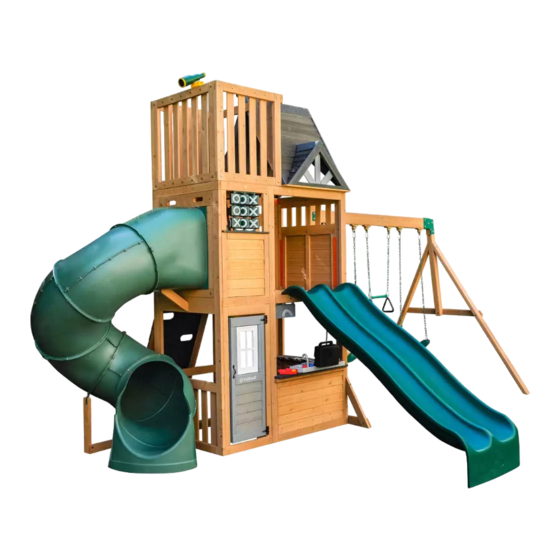

SUMMIT VIEW
SWING SET
Easy step-by-step 3D interactive
instructions for this product can be
found in BILT
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
INSTALLATION AND OPERATING INSTRUCTIONS
FOR 24/7 ONLINE PARTS REPLACEMENT
parts.kidkraft.com
KidKraft, Inc.
4630 Olin Road
Dallas, Texas 75244
USA
customerservice@kidkraft.com
1.800.933.0771
972.385.0100
ITM. / ART.
1740703
®
. Download today.
parts.kidkraft.eu
KidKraft Netherlands BV
Olympisch Stadion 8
1076 DE Amsterdam
The Netherlands
europecustomerservice@kidkraft.com
+31 20 305 8620
M-F from 09:00 to 17:30 (GMT+1)
OBSTACLE FREE SAFETY ZONE - 31' 2" x 24' 7" x 17' 4-5/8" (9.5 m x 7.5 m x 5.3 m) area
requires Protective Surfacing. See page 4.
MAXIMUM VERTICAL FALL HEIGHT - 7' 8" (2.34 m).
CAPACITY - 9 Users Maximum, Ages 3 to 10; Weight Limit 110 lbs. (50 kg) per child.
RESIDENTAL HOME USE ONLY. Not intended for public areas such as multi-unit
residences, schools, churches, nurseries, day cares or parks.
7.5m
24' 7"
3.25m
10' 8"
AUSTRALIA: Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
9409750E
Rev 11/29/2023
TWO-PERSON
ASSEMBLY TIME
ASSEMBLY
15 - 20 HOURS
WARNING
To reduce the risk of serious injury or death, please read and follow
these instructions. Keep and refer to instructions as needed and
pass along to any future owners of this item.
5.57 m
18' 3 1/2"
3.49m
11'5 3/8"
9.5m
31' 2"
WARNING. ONLY
FOR OUTDOOR
DOMESTIC USE
