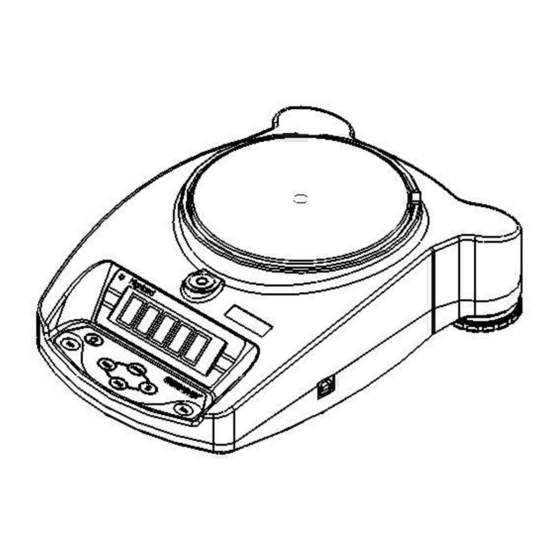

- Page 1 PA100-HBC SERIES (P.N. 9520, Revision E, October 2011) 81320481 en...
- Page 2 Easy Reference: Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place:...
-
Page 3: Table Of Contents
1.0 CONTENTS CONTENTS ................... 3 INTRODUCTION ................... 4 SET UP ....................4 UNPACKING AND SETTING UP YOUR BALANCE ......4 DISPLAY / KEYBOARD FUNCTION ..........5 INTERNAL RECHARGEABLE BATTERY .......... 6 LOCATING AND PROTECTING YOUR BALANCE ......7 STORING WHEN NOT IN USE ............8 BASIC OPERATION ................ -
Page 4: Introduction
2.0 INTRODUCTION Thank you for purchasing your new PA100 portable balance, Every PA100 balance has all the features you really need: AC adapter and internal rechargeable battery, HandiCal calibration, backlit display, and ShockProtect with overload indicator. With RS-232 and USB interface for communication with printers and computers, splash-proof keypad, and sturdy plastic construction, the PA100 series will be a balance you can rely upon. -
Page 5: Display / Keyboard Function
DISPLAY / KEYBOARD FUNCTION The display and keypad have a number of features the key information is shown below: KEYS PRIMARY FUNCTION SECONDARY FUNCTION [On/Off] To turn the balance On or Off. ---- [Tare] Tares the balance and shows the net A secondary function of "Enter"... -
Page 6: Internal Rechargeable Battery
Percentage symbol Low battery indicator Hold symbol Zero Net symbol Alpha numeric display Stable Capacity tracker Weighing digits INTERNAL RECHARGEABLE BATTERY The balance can be operated from the internal rechargeable battery or using an AC adapter. The battery discharge time, is approximately 24 hours depending on the usage of the backlight. -
Page 7: Locating And Protecting Your Balance
LOCATING AND PROTECTING YOUR BALANCE In order to keep your balance functioning at its best we suggest that you do the following: Avoid extremes of temperature. Do not place in direct sunlight or near air conditioning vents. Make sure the balance is located on a strong table and free from vibration. -
Page 8: Storing When Not In Use
STORING WHEN NOT IN USE If you have any of the PA100 series you can store them easily on top of each other. To save space and protect them from damage. Without Shield With Shield Note: Only models equipped with a ø 4.7” / 120mm pan, can be stacked for storage. Core models with the larger ø... -
Page 9: Basic Operation
4.0 BASIC OPERATION TURNING ON THE BALANCE Plug in the unit using the AC adapter or use the internal rechargeable battery. It is recommended that you charge the battery for at least 8 hours before first use. 1) To turn on press the [on/off] key once and release. The balance will show the software revision and the capacity then self-test before showing zero on the display and the stable sign. -
Page 10: Weighing
WEIGHING To determine the weight of a sample, first tare an empty container (if used), then place the sample in the container. The display will show the weight of the sample and the unit of weight currently in use. The stable indicator will light when the reading is stable. -
Page 11: Functions
5.0 FUNCTIONS PERCENTAGE WEIGHING The balance will allow a reference weight to be shown as 100%. Then any other weight placed on the balance will be displayed as a percentage of the original sample. 1) Place your weight on the balance. 2) Press the [%] key. -
Page 12: Accumulation
4) The balance will initially show SP 10 asking for a sample size of 10 parts. Press [Mode] to cycle through the options: 10, 20, 50, 100, 200 and back to 10 to select the sample you have placed on the balance. 5) Press [Smpl] again once you have selected the sample. - Page 13 followed by the new total in the memory for 2 seconds before returning to displaying the weight of the item on the balance. 6) Continue until all weights have been added. To view the totals in memory press the [Print] key when the balance is at zero. The display will show ACC xx (where “xx”...
-
Page 14: Parameters
6.0 PARAMETERS The balance has 7 parameters that can be set by the user. FUNCTION SECTION DESCRIPTION F1 UNT See section 6.1 Sets the units to be used ct / Lb / oz / d / GN / OZt / dWt / MM / TL.T / TL.C / TL.t /t / N /g2. -
Page 15: Setting The Backlight
6) When F1 Unt is displayed, you can press the [Print] key to return to weighing or press [Mode] to go to the next function. The following table shows different units which are available to the user and the conversion factors for each. Name of the Description Conversion... -
Page 16: Setting The Printing Parameters / Accumulation
EL On Sets the backlight to be on for full time. 1) To set this parameter press the [Mode] key during self-checking test when turning on the balance. 2) After a few seconds, the display will show the first function F1 UNT. 3) Press the [Mode] key to select F2 EL . - Page 17 P2 Con Data is sent continuously. Accumulation is disabled. P3 AUT The weighing results will be sent to the Automatic accumulation when communication port automatically stable whenever a stable reading is present. The balance has to return to zero before another reading is sent via the interface.
-
Page 18: Auto Power Off
Press the [Mode] key to change the setting. Press [Tare] to confirm and move to the next parameter. 9) Format settings. The scale will print either using a format that includes stability indications or one with only the weight. There are 2 settings that the PA100 can work with as follows: FOr 1 Data format is with line headings and... -
Page 19: Selecting The Internal Or External Calibration
SELECTING THE INTERNAL OR EXTERNAL CALIBRATION You can select if the internal mass or an external mass is to be used to calibrate the balance. 1) To set this parameter press the [Mode] key during self-checking test when turning on the balance. 2) After a few seconds, the display will show the first function F1 UNT. -
Page 20: Setting User Parameters
6) Press [Tare] to store a particular setting. The display will return to F6 CA 7) When F6 CA is displayed press the [Print] key to return to weighing or press [Mode] to go to the next function. Changing the value of the internal weight will affect the calibration when using the internal calibration. - Page 21 21 | P a g e...
-
Page 22: Calibration
7.0 CALIBRATION The PA100 series of balances comes standard with HandiCal internal calibration to make calibrating the balance quick and easy. However you can also calibrate the balance using an external verification weight if needed. The HandiCal method is the default but if you would like to use external calibration then you must first enable this via the parameter (section 6.5 Selecting The Internal Or External Calibration). - Page 23 External Calibration 1) Press the [on/off] key to turn the power on. 2) Press the [Smpl] and [Print] keys at the same time during the self-checking test. 3) The display will show unload. Remove any weight from the stainless steel pan. 4) When the stable indicator shows press the [Tare] key.
-
Page 24: Trouble Shooting
8.0 TROUBLE SHOOTING ERROR MESSAGES If an error message is shown, repeat the step that caused the message. If the error message is still shown then contact your dealer for support. ERROR DESCRIPTION POSSIBLE CAUSES SOLUTIONS CODE Err 4 Initial Zero is greater Weight on the pan when Remove the transit screw than allowed (4% of... -
Page 25: Replacement Parts And Accessories
rechargeable battery. REPLACEMENT PARTS AND ACCESSORIES If you need to order any spare parts and accessories, contact your supplier. A partial list of the more common items follows: Part Number Description 3.07.4.0.10266 RS-232 interface cable 3.07.4.0.10267 USB interface cable 7.00.1.0.0046 Security lock and cable 3.08.1.0.2043 Hard Carry case... -
Page 26: Specifications
9.0 SPECIFICATIONS TECHNICAL SPECIFICATIONS HCB123 HCB153 HCB302 HCB602 HCB602H HCB1002 HCB1502 HCB3001 Maximum Capacity 120g 150g 300g 600g 600g 1000g 1500g 3000g Readability 0.001g 0.005g 0.01g 0.02g 0.01g 0.01 g 0.05g 0.1g Repeatability(s.d.) 0.002g 0.005g 0.01g 0.02g 0.01g 0.01 g 0.05g 0.1g Linearity ±... - Page 27 Connection details are: Generally a Null model cable is RS-232 Connector: 9 pin d-subminiature socket Pin 3 Output required connection Pin 2 Input computer or printers. Pin 5 Signal Ground USB Connection is using a standard USB connector. Software for using the USB interface with a PC is available from the Adam Equipment web site.
- Page 28 Format 2 Output: The output will be the same value as is on the display. If parts counting it iwl be the count, if weighing it is only the weight. An example output is : ± _ _ _ _ _ _ 1 2 3 . 4 5 _ g _ <cr> <lf> Parts Counting example: ±...
- Page 29 29 | P a g e...
- Page 30 Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonised European standards, following the provisions of the below stated directives: Electro Magnetic Compatibility Directive 2004/108/EC Low Voltage Directive 2006/95/EC Adam Equipment Co. Ltd. Bond Avenue, Denbigh East Milton Keynes, MK1 1SW United Kingdom This symbol on the weighing instrument you have purchased means that:...
