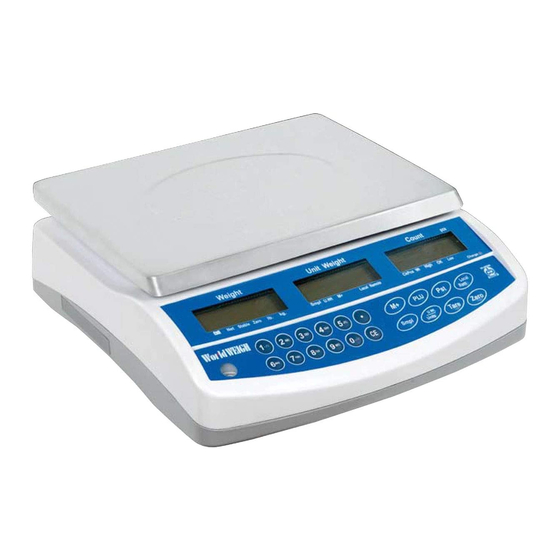

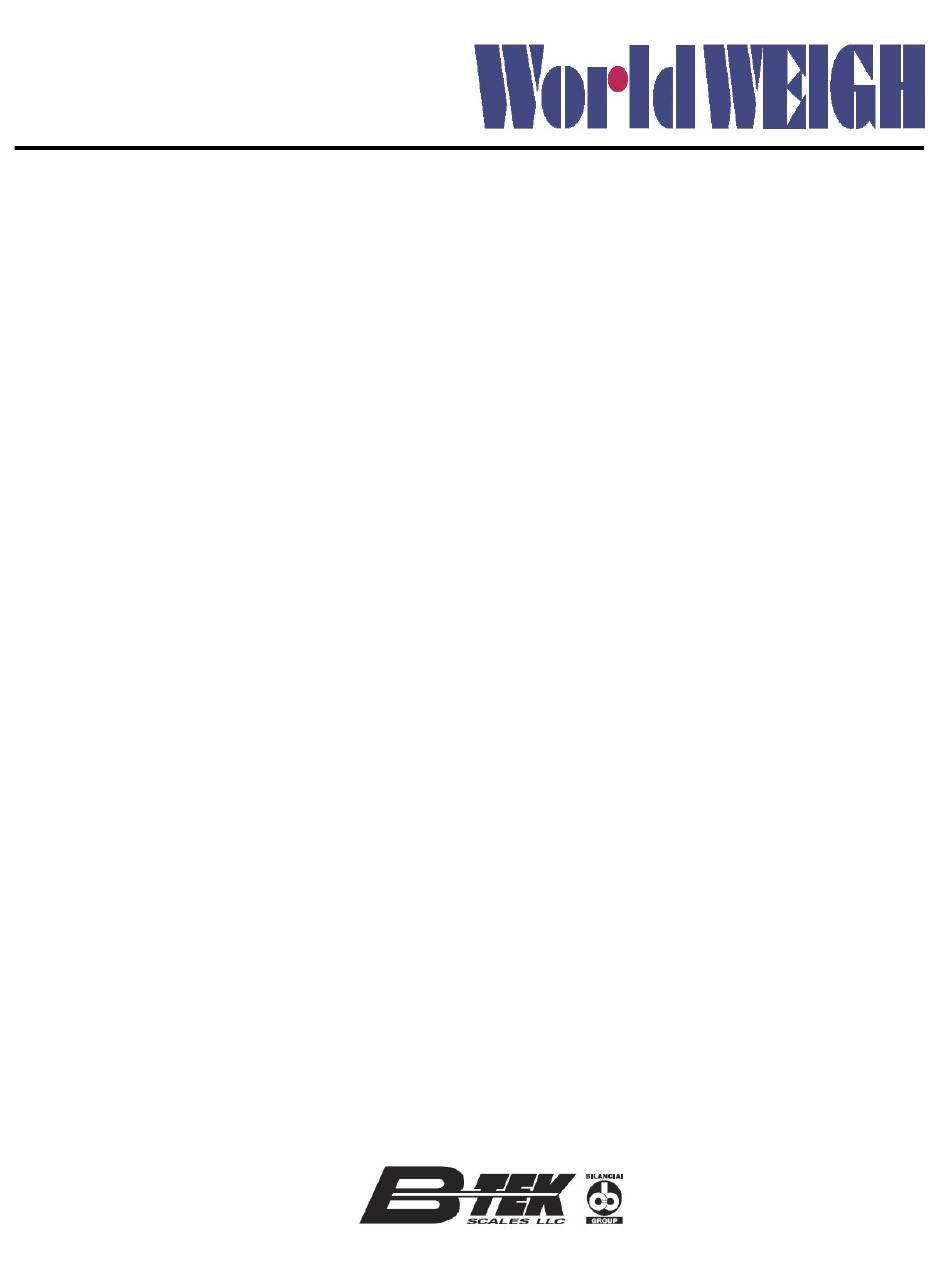

- Page 1 C100 Counting Scale Owners Manual V2.40...
-
Page 3: Table Of Contents
CONTENTS 1. SPECIFICATIONS……………………………………………………………..1 2. PRECAUTIONS………………………………………………………………..2 3. INSTALLATION……...…………..…………………….……………………..…3 Remote Scale Setup………………………..…………………………4 4. KEYS AND FUNCTIONS…………….………………………………………5 Key board………………………………...........5 Display………………………………………………………………………6 5. OPERATION………………………………………………………….…………7 Power On/Off…………………….…………………………………………7 Switch to local / Remote Scale….…..………………………………….7 Zero……………………………….…………………………………………7 Tare………………………………………………………………………….7 Accumulation………………………………….………………………….8 Manual Accumulation……………………………………………………..8 ... -
Page 4: Specifications
C100 Series Owners Manual 1. SPECIFICATIONS DIMENSIONS Specification MODEL C100/6 C100/12 C100/30 C100/60 Part Number 899-300000 899-300001 899-300002 899-300003 Maximum Capacity 6 lb 12 lb 30 lb 60 lb 3 kg 6 kg 15 kg 30 kg Readability .0001 lb .0002 lb... -
Page 5: Precautions
C100 Series Owners Manual 2. PRECAUTIONS Read this manual before operating or servicing this equipment. Follow these instructions carefully. Disconnect this equipment from the power source before cleaning of performing maintenance. Keep the manual for your future reference. -
Page 6: Installation
C100 Series Owners Manual 3. INSTALLATION Unpacking Carefully take the C100 out of its packaging, making it sure its not damaged and all accessories are included. If equipped, remove the shipping safety screw. Indicated by the red label on the... -
Page 7: Remote Scale Setup
Remote Scale: The C100 Series can be connected remote base through the Remote scale port on the left side of the scale case. Place the remote scale platform in the position where it is to be used. -
Page 8: Keys And Functions
C100 Series Owners Manual 4. KEYS AND FUNCTION Key Board Keys Press this key to Numeric Keys. To enter either individual unit weights or preset tare Clear incorrect entries and error conditions Decimal Point. Returns the display to zero. Enter to clear tare weights, Storing the current weight as tare value. -
Page 9: Display
C100 Series Owners Manual Display The arrow “▼” above the symbols Weight Display Low Battery Net Weight Displayed Stable Stable Displayed Zero Zeroing Displayed Lb / kg Current Weighing Mode Unit Weight Display Smpl # of sample is very low U.Wt... -
Page 10: Operation
C100 Series Owners Manual 5. OPERATION Initial Start-up Please allow 15 minutes of warm-up time to weight value to stabilizes after switching on. 1. Power ON/OFF Power switch is located below the bottom right side of the scale. Switch on the scale by pressing on/off. -
Page 11: Accumulation
C100 Series Owners Manual Entering a tare value using by numeric keys. This method allows you to enter a value for the tare weight from the keypad. This is useful if all containers are the same or if the container is already full but the net weight is required and the weight of the container is known. -
Page 12: Saved Data
C100 Series Owners Manual Display of Saved Data To check the total value saved, press key when the display is in zero. Total weight will be displayed two seconds. Delete Saved Data To clear the memory, press the display will be shown saved data. -
Page 13: Weighing A Sample To Determine The Unit Weight
C100 Series Owners Manual The average piece weight can be increased at any time during the counting process, by entering the displayed number of items and confirming by pressing Weighing a sample to determine the Unit Weight Reset the balance to zero or tare the empty container if necessary. -
Page 14: Check Weighing Of Count Pre-Set
C100 Series Owners Manual Check Weighing or Count Pre-set Check weighing is a procedure to cause an alarm to sound when the weight or piece quantity within the a limits. Limits can be set by using numeric keys. Setting the Checking Limits... -
Page 15: Storing Plu
C100 Series Owners Manual Storing PLU Press key to ensure display zero. Tare and unit weight to be stored can be either taken from a weighing in process or by enter manually. Press display will be shown P lu ... -
Page 16: Entering Description Manually
C100 Series Owners Manual Entering Description Manually To set the description, press the numeric button and keep it pressed until the desired letter is displayed. The characters are according to key board. - / \ A B C D E F... -
Page 17: Parameters
C100 Series Owners Manual 6. PARAMETERS To enter into the Parameter Turn on the scale, press during that start up. Display will be show F1 off Select the Menu Block Press key, it can choose menu block one by one. -
Page 18: Parameter Settings
C100 Series Owners Manual Parameter Setting Menu Sub Menu Description Beep Beep off Beeper is turned off Beep On in Beeper is turned on, will be sounded when in check weighing limits Fi off Beep On out Beeper will be sounded above the... -
Page 19: Rs-232 Output
C100 Series Owners Manual 7. RS-232 OUTPUT The C100 Series of scales come standard with an RS-232 output. Specifications: RS-232 output of weighing data ASCII code 9600 Baud 8 data bits No Parity Connector: 9 pin socket From C100 Pin 2 Output... -
Page 20: Error Codes
C100 Series Owners Manual 8. ERROR CODES Error Message Description Solution ----- Maximum load exceeded Unload or reduce weight Err 4 Zero setting error Zero setting range exceeded due to switching on.(4%max) Make sure platform empty. Err 5 Key board error Check the keys and connecter. -
Page 21: Drawing
C100 Series Owners Manual 9. DRAWING - 18 -... -
Page 22: Part S L I S
C100 Series Owners Manual Parts List No Parts Name Qty Part number Spec SS Pan 899-300025 230mmx300mm Plastic Pan 899-300026 230mmx300mm Battery cover 899-300067 Battery 899-300022 6V/4Ah Foam Rear Overlay Top Cover Name Plate Internal Allen Screw M6x16, 8.8 Washer (M6) - Page 23 B-TEK Scales 1510 Metric Avenue SW Canton, OH 44706 Tel: (330) 471-8900 Fax: (330) 471-8909 www.B-TEK.com...
