  • Page 1 Instruction Manual WorldWEIGH Pallet Scale V1.2...

  • Page 2: Table Of Contents

    WorldWEIGH Pallet Scale Manual Contents 1. INTRODUCTION……………….……………...…………………………………………3 2. SPECIFICATIONS…………………….……...………………………………………..…4 3. INSTALLATION…………………...…………...………………………………………….5 3.1 General installation…………………………………………….………………………..5 3.2 Installation of TPS series………………….……...…..………………………………..5 3.2.1 Install handle……………………………………...…………….……………………..5-6 3.2.2 Adjust release device………………………………..………………………………..7 3.2.3 Install Display Head…………………………………………………………………..8 4. PALLET TRUCK OPERATE……………….…………………………………………….9 4.1 Control lever……………………...….………………………….………………………9 4.2 Safety Notes……………………………………………..……………………………..9-10 5.

  • Page 3: Introduction

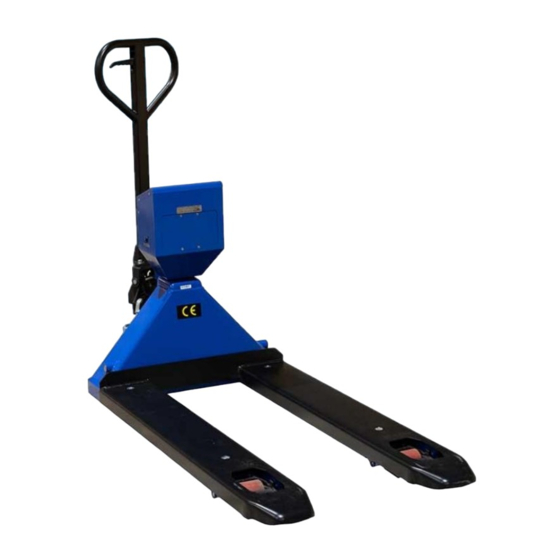

    WorldWEIGH Pallet Scale Manual 1. INTRODUCTION The T100 series of pallet scale provides an accurate, fast weighing solution for pallets. All the keypads are mechanical switches, and the displays are large backlit easy to read liquid crystal type displays (LCD).

  • Page 4: Specifications

    WorldWEIGH Pallet Scale Manual 2. SPECIFICATIONS Model T100-NF T100-WF Max Lifting weight 4400lb 2000kg Min. Fork Height 3.25” Max. fork height 7.75” Fork length 44.75” Fork overall width 21.75”/27” Individual fork width 7” 4400lb/2000kg Capacity 2lb/1kg division External resolution 1/2,000d...

  • Page 5: Installation

    WorldWEIGH Pallet Scale Manual 3. INSTALLATION 3. 1 General Installation Avoid extreme temperatures. Do not place in direct sunlight or near air conditioning vents. Avoid high humidity that might cause condensation. Do not spray or immerse the scales in water.
  • Page 6 WorldWEIGH Pallet Scale Manual 3. Place the handle (H101) on the base (103), please note: Feed the rod and chain (H107) through the center of the base (103) and axle (109). 4. Insert three screws (H109) with spring washers (H110) into the base (103). Then tighten them securely.

  • Page 7: Adjust Release Device

    WorldWEIGH Pallet Scale Manual 3.2.2 Adjusting the release lever. On the handle of the pallet truck, you will find the control lever (H106) which can be set in three positions. 1. First tighten the setting screw (140H) on the crank link (139H) until the LOWER position function works.

  • Page 8: Install Display Head

    WorldWEIGH Pallet Scale Manual Install Display Head (Weighing Indicator) Remove the display head (indicator) from the carton, and place to fix on the top of the pallet head. Remove the screws from the display head and pull the front housing of the display head, bottom side of the display head has 3 holes for to use screws to fix display head to the pallet.

  • Page 9: Pallet Truck Operate

    WorldWEIGH Pallet Scale Manual 4. PALLET TRUCK OPERATION 4. 1 CONTROL LEVER the control lever (H106) has three positions for use. LOWER: to lower the forks NEUTRAL: to move the load ASCENT: to raise the forks. After assembling the handle, you can adjust the three positions.
  • Page 10 WorldWEIGH Pallet Scale Manual SAFETY NOTES CONTINUED 1. Do not operate the pallet truck unless you are familiar with it and have been trained or authorized to do so. 2. Do not operate the truck unless you have checked its condition. Give special attention to the wheels, the handle assembly, the forks, lift and the lower control.

  • Page 11: Key Descriptions

    WorldWEIGH Pallet Scale Manual 5. KEYS DESCRIPTION Keyboard Keys Description Power ON/OFF Zero the scale To perform a tare function, Subtracts weights. Memory recall key, show the stored values from the memory. Press and hold 3 seconds for store the pre-tare...

  • Page 12: Display

    WorldWEIGH Pallet Scale Manual Secondary functions of the keys Function Keys To confirm the selected menu To change the menu and active digit To move the active digit to right To move the active digit to left To clear the setting values Exit the menu to normal operation.

  • Page 13: Operation

    WorldWEIGH Pallet Scale Manual 6. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after powering the scale on. 6.1. Basic Operation 1. Power On/Off: Switch on the scale by pressing the on/ off key. When the scale is powered on a power up test is performed before the scale can be used.
  • Page 14 WorldWEIGH Pallet Scale Manual 6.2.1. Set Limits • key together, display will show set h. Press • key to select set h or set l. Press • key to confirm, display will show 00000, the last Press digit will blink.

  • Page 15: Accumulation

    WorldWEIGH Pallet Scale Manual • Check mode ng: When the weight is out of the limits, the beeper will be sounded and OK will be shown. Note: Check weighing available only when the weight is more than 20d 6.3. Accumulation The scale can be set to accumulate manually by pressing key.

  • Page 16: Animal Weighing

    WorldWEIGH Pallet Scale Manual Automatic Accumulation Operation • Place the load on the platform. • When the display shows the STABLE indicator, the display will show acc 1 then will show the total saved value. This will display for three seconds.

  • Page 17: Set Back Light

    WorldWEIGH Pallet Scale Manual • Hold the key for three seconds the display will show setbl • Press the key to change Set of, then press the key to confirm. • Press the key to change the options. Of 0...

  • Page 18: Parameters

    WorldWEIGH Pallet Scale Manual 7.PARAMETERS To set parameters, turn the scale on and follow the steps below. • Press the key during the self-check countdown. • The display will show pn • Press the and the to enter, display will show po chk...
  • Page 19 WorldWEIGH Pallet Scale Manual When weight stable and return to zero. : Ask mode, Command R: read data Command T: Tare Command Z: Zero Wireles: Wireless mode (communication through wireless) Kit 1 : Baud To set the baud rate. Options:...
  • Page 20 WorldWEIGH Pallet Scale Manual P5 unit Kg / lb /oz /g To set unit. Options; on / Off when the unit option is on, that unit can be active. P 6 xcl External calibration P7 rst To reset the parameter back to the factory...

  • Page 21: Calibration

    WorldWEIGH Pallet Scale Manual 8. CALIBRATION To perform scale calibration, turn on the scale and follow the steps below. • Press key during the self-check countdown. • The display will show pn • Press the to enter, the display will show po chk and the •...
  • Page 22 WorldWEIGH Pallet Scale Manual to select p6 xcl In parameter settings, press the • Press the key to enter calibration, display will be show unld • Remove all the weight from the platform. • When the indicator is stable, press the key to confirm.

  • Page 23: Drawing

    WorldWEIGH Pallet Scale Manual 9.DRAWINGS Parts List Parts Name Material Spec Pallet Base Square Washer 36x60 Load Cell Round Washer Q235 24x12.6 Support Q235 24x12.5x15h Spring Washer 19x12.5 Hexagon Screw M12x35 Pallet Cover Internal Hexagon Screw M12x35 Spacer EDPM 95x110...

  • Page 24: Appendix 1 Drawing Of Pump Assembly And Handle

    WorldWEIGH Pallet Scale Manual APPENDIX 1: DRAWING OF PUMP ASSEMBLY AND HANDLE - 24 -...
  • Page 25 WorldWEIGH Pallet Scale Manual Parts List of Pump Assembly Q’t Q’ty Part Description Part Description Steel ball Pressure regulating screw O- ring Base Screw Steel roller 139H Crank link Bushing 140H Setting screw Shaft Parallel pin Retaining ring Retaining cover...
  • Page 26 WorldWEIGH Pallet Scale Manual Pressure rod Pump cylinder Steel ball Seal ring Pressure valve body Nylon bushing Split ring Red copper washer O-ring Retaining ring Washer Rhombus plate Steel needle Bushing Dowel pin Dust proof ring 122H Pump body O-ring...

  • Page 27: Appendix 2 Drawing Of Frame

    WorldWEIGH Pallet Scale Manual APPENDIX 2: DRAWING OF FRAME Parts List of Frame Q’ty Part Q’ty Part Description Description F304 Screw F102 Bushing F313 Washer F103 Hexagon socket screw F314 Spring washer F104 Spring pin F316 Bolt F105 Torsion tube shaft...
  • Page 28 WorldWEIGH Pallet Scale Manual F324 washer F120 Axle F325 Concave spherical F121 Roller F326A washer F122 Wheel frame F327S Bolt F123 H-link axle F327L Load cell F124 Pull rod axle F328 Frame (555mm) F126 F101 Frame (690mm) Spring washer Pull rod...

  • Page 29: B-Tek Contact Information

    WorldWEIGH Pallet Scale Manual B-TEK Scales, LLC 1510 Metric Ave. S.W. Canton, OH 44706 Tel: 330.471.8900 Fax: 330.471.8909 www.B-TEK.com - 29 -...
