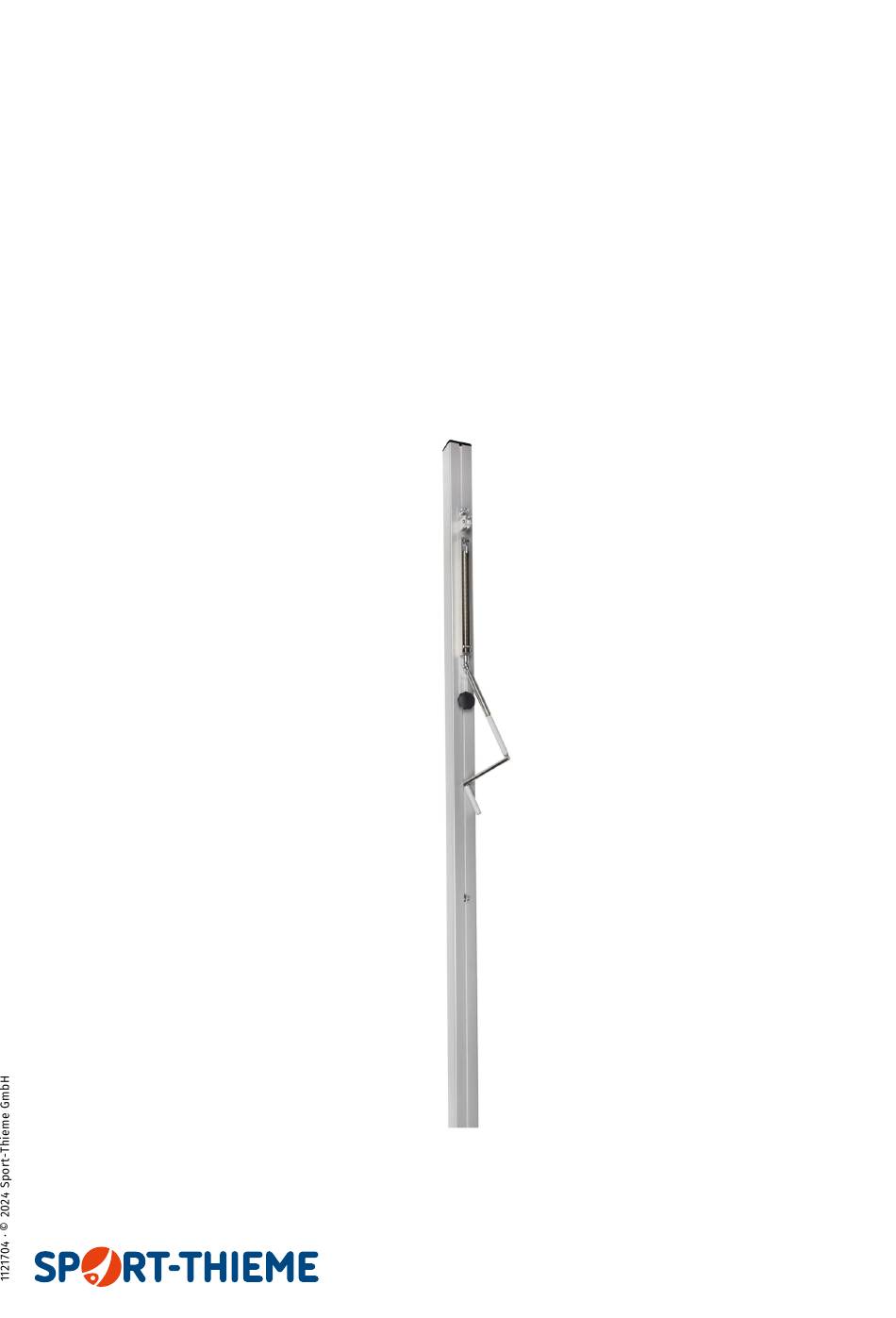

Operating /assembly instructions
Sport-Thieme 'Multi'
Multi-Game Posts
Thank you for choosing a Sport-Thieme product!
Please read the following notes carefully before use so you can enjoy this product safely and keep these
instructions for future reference. If you have any questions, our team is here for you.
Sport-Thieme GmbH · D-38367 Grasleben · sport-thieme.com
Tel. +49 53 57 181 543 · Fax +49 53 57 181 921 · info@sport-thieme.com
Prod. code 345 9704
Advertisement
Related Manuals for Sport-thieme Multi 345 9704
Summary of Contents for Sport-thieme Multi 345 9704
- Page 1 Please read the following notes carefully before use so you can enjoy this product safely and keep these instructions for future reference. If you have any questions, our team is here for you. Sport-Thieme GmbH · D-38367 Grasleben · sport-thieme.com Tel. +49 53 57 181 543 · Fax +49 53 57 181 921 · info@sport-thieme.com...
- Page 2 Assembly instructions for Art.-Nr. 345 9704 1. Scope of delivery: Please check the following content before assembly. mechanical upright counter upright round ground socket square ground socket Piece Description Upright with sliding device and fixing hook (= mechanical upright) Upright with sliding device (with hook) and fixing eye (= counter upright) Aluminium ground sockets with caps (optional) Accessories (without picture) Content: caps, screws resp.
- Page 3 Assembly instructions for Art.-Nr. 345 9704 2. Preparation for the match: All sliding devices and fixing eyes are already provided at the uprights. Only the caps have to be mounted, uprights to be erected and net to be fixed. The following tools are necessary: - hammer/mallet - drill 1.5 mm - cross-head screwdriver (in case of round uprights)
- Page 4 Assembly instructions for Art.-Nr. 345 9704 3. Assembly of the net: tensioning The net is not part of the delivery. The following pictures only describe fur- ther assembly steps. Different net executions are available. rope a) Fixing of rope at the mechanical upright Pull loop of the rope over the guide roller at the sliding device of the mecha- nical upright and fix it in the hook.
- Page 5 Assembly instructions for Art.-Nr. 345 9704 c) Adjustment of net height: At first unscrew handwheels, adjust the height and then tighten handwheels again. The net height has generally to be adjusted with released tension! d) Tensioning of the net: Use the flexible crank at the mechanical sliding device until the necessary ten- sion is achieved.
- Page 6 Assembly instructions for Art.-Nr. 345 9704 6. Instructions to concrete ground sockets: The foundation drawings are only for illustrative purposes. The necessary construction and the installa- tion of the foundations must be individually depending on the local conditions and the planned ground structures executed by a specialized company.
- Page 7 Assembly instructions for Art.-Nr. 345 9704 7. Maintenance, storage and safety instructions: This unit is constructed only for ball matches like Volleyball, Tennis or even Soccer Tennis and not for other purposes. Check all screwed fastenings before use and repeat it from time to time. Do not climb or hang on uprights and unit.
- Page 8 Assembly instructions for Art.-Nr. 345 9704 Spare parts list for multiple use uprights: Number: Description: Mechanical and counter sliding devices (with hook), pictures see next page) Mechanical sliding device without crank Eye with nut Roller holding device with roller, screws and nuts Roller for roller holding device with screw and nut Spindle nut with welded hook Universal joint with spigot...
- Page 9 Assembly instructions for Art.-Nr. 345 9704 mechanical sliding device counter sliding device nut with rope hook...
