Measures Air flow
•
• Area Set
• Measures Air
Velocity &
Temperature
•Degrees C/F
switchable
•5 selectable units
of measure
•Data Hold/Max/Min
function
INSTRUCTION MANUAL

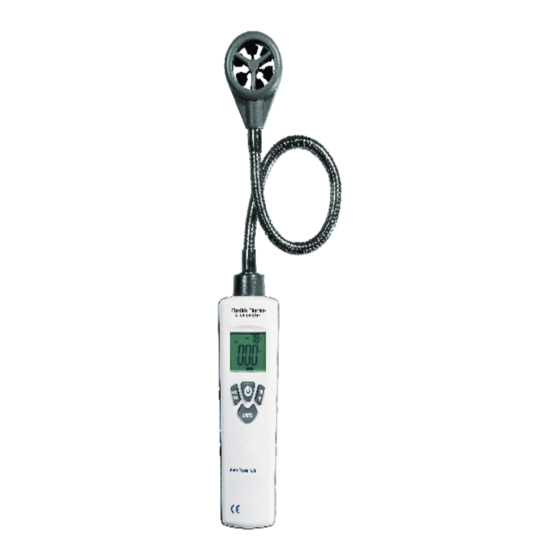

CFM Flexible Airflow Meter
PCE-TA 30
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
Advertisement
Related Manuals for PCE Instruments PCE-TA 30
Summary of Contents for PCE Instruments PCE-TA 30
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
- Page 2 •Mode Store 1. INTRODUCTION Congratulations on your purchase of CEM’s Vane Anemometer. This professional meter,with proper care, will provide years of safe reliable service. 2. Features Velocity Temperature measurements displayed on multi-function 2.2 Full 4-digit display of air velocity in m/s,ft/min,km/h,MPH and knots, 2.3 º...
-
Page 3: Air Velocity
2.7 Current Mode status will be save after Power off. 3. Specifications Air Flow Air Flow Range Area Resolution 0-999,900 0-999.9ft /min Air Velocity Units Range Resolution Accuracy － ± 3% ± 0.20 0.01 1.00 30.00 － ± 3% ± 40 ft/min 5900 ft/min... -
Page 4: Meter Description
ºC ±1.5 ºC -10.0to 60.0 ºF ±3.0 ºF 14.0 to 140.0 Dimensions: 163 x 45 x 34(mm) Display size: 26.7 x 25.4(mm) Fan Diameter: 27.2(mm) Whight: 257(g) 4.Meter Description 1 Vane impeller 2 Precision thermister 3 LCD display 4 Power key 5 Hold key / Backlight switch 6 Max and min key / Del Key... -
Page 5: Operation
7 UINTS KEY / ºC / ºF switch 5. OPERATION 5.1 The meter ON OR OFF Press the button to turn the meter on or off. Non Sleep Mode(BYPASS AUTO POWER OFF) The meter will automatically turn off after 15 minutes in the normal. - Page 6 reading. Press again to unlock display. 5.4 Max/Min Press the MAX/MIN key and the reading will change from max,min,normal. Press and hold the MAX/MIN button for about 3 seconds to clear and Stop the MAX/MIN/ recording. 5.5 Measuring m/s,ft/min,km/h,MPH,knots Press the UINTS key and the reading will change from m/s,ft/min,km/h, MPH, KNOTS.
- Page 7 5.8 AREA SET 1. Turn off the merter. 2. Press the HOLD key and hold. 3. Turn on the meter,then the meter will be into area set mode and the “set area” show on the LCD. 4. Press the MAX/MIN key to shift the radix point.
