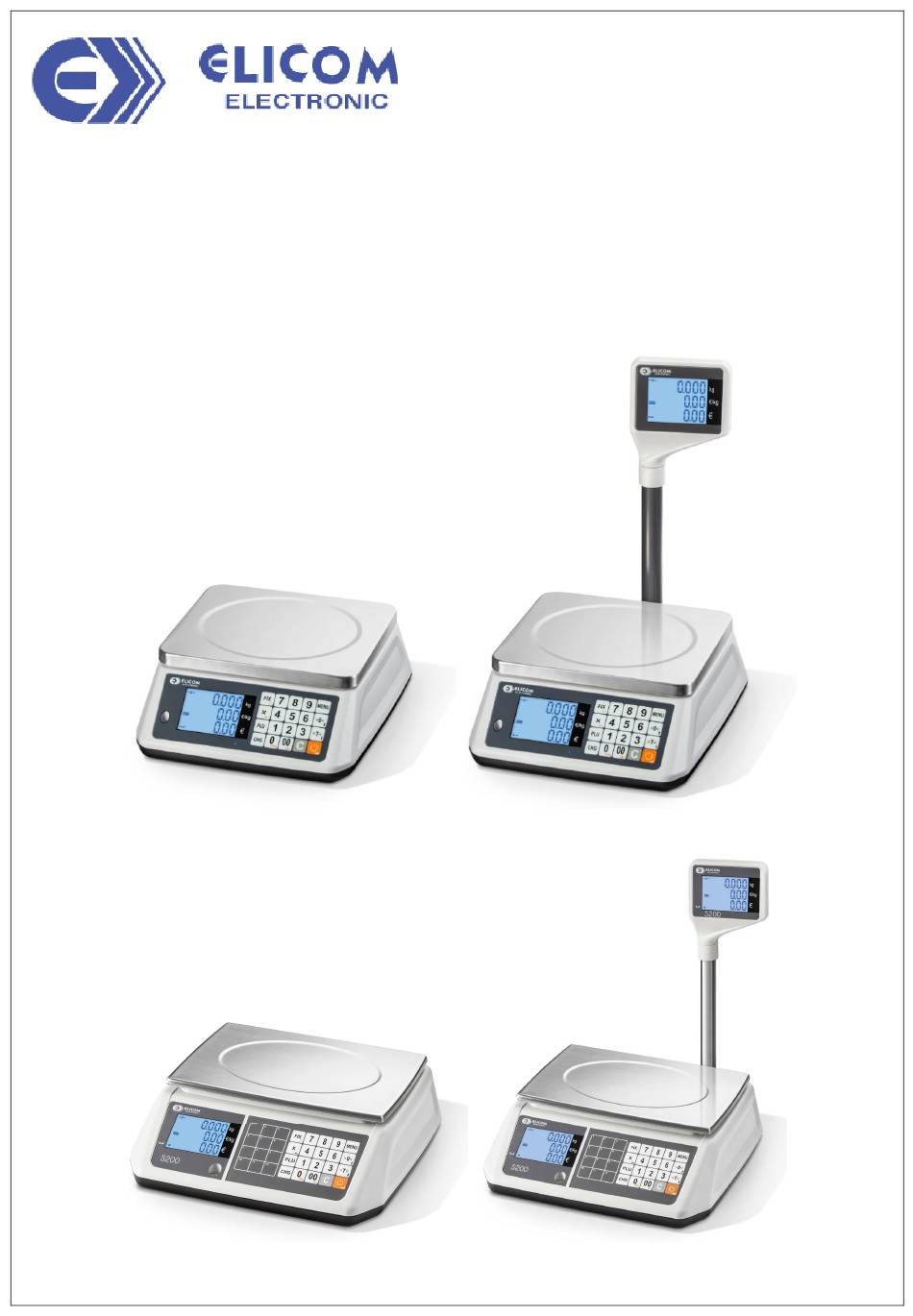

- Page 1 USER MANUAL PRICE COMPUTING SCALE Series S300F/S300L/S300FM/S300LM R e v. 1 . 2...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION .................................. 3 2. INSTALLATION ................................... 3 3. OVERVIEW ..................................6 Q U I C K O P E R AT I O N ............................11 T U R N O N / O F F T H E S C A L E ........................11 4 . -
Page 3: Introduction
1. INTRODUCTION This document contains information about how to install and operate your price computing scale. Please read carefully the manual before using the device. P r e c a u t i o n s 1 . 1 Use the manufacturer approved power adapter provided with the scale. - Page 4 M e t a l P a n A s s e m b l y 2 . 2 Place the metal pan on top of the scale as shown in the image below and push gently downwards. Fig. 2.1 – Fitting metal pan S300F Fig.
- Page 5 2 . 5 R e c h a r g e a b l e B a t t e r y The scale has the option to be fitted with a rechargeable 3.7V Li-on battery which allows the scale to operate independently from an external power supply making it perfect for outdoors usage.
-
Page 6: Overview
3. OVERVIEW 3 . 1 M o d e l s Model Customer OIML Weighing Platform display Range capacity S300F 1.5/3 Flat Multi interval 1.5/3 kg 0.5/1g 235 x 205 S300F 3/6 Flat Multi interval 3/6 kg 1/2g 235 x 205 S300F 6/15 Flat Multi interval... - Page 7 Fig. 3.2 - Model: S300F Fig. 3.3 - S300LМ Dimensions Fig. 3.4 - Model S300FМ Dimensions...
- Page 8 D i s p l a y 3 . 3 Main Information shown on front display: Weight Unit price Total amount Metrological characteristics Level indicator Stability indicator Table 3.1 – Main display information Fig. 3.5 – Front Display Additional Information shown on front display: Gross weight is zero Net weight Tare is displayed...
- Page 9 Keyboard Functional Zones PLU preset keys Advanced function keys Numeric keys Basic functions Table 3.4 – Keyboard Information Fig. 3.7 – Keyboard Layout S300FМ Further information about the keys functionality is provided in the following ‘Operation’ section.
- Page 10 3 . 5 V i e w f r o m b e l o w Power supply connection RS232 interface connection Calibration seal Battery compartment Adjustable feet Battery and Interface cover Table 3.5 – View from below S300F Fig. 3.8 – View from below Power supply connection RS232 interface connection Calibration seal...
-
Page 11: Q U I C K O P E R At I O N
3 . 6 C o n n e c t i o n s 3 . 6 . 1 R S 2 3 2 i n t e r f a c e p o r t Fig. 3.10 – RS232 port 3 . -
Page 12: W O R K I N G W I T H Ta R E
W o r k i n g w i t h Ta r e 4 . 3 Place Tare weight on the scale Press key. The weight will be stored, and the scale will show 0.000kg with the NET symbol being present. Place your item. -
Page 13: 0 0 G F U N C T I O N
1 0 0 g f u n c t i o n 4 . 8 100g pricing mode is used in areas were unit price is carried out by 100g instead of by 1kg. 1. Place your item on the scale. 2. -
Page 14: C R E At I N G A P L U
C r e a t i n g a P L U 4.13 1. Press followed by and confirm with 2. Enter a PLU number of your choice (e.g ) and store it by pressing . Please note the PLU number can be between 1 and 5269, depending on scale memory. -
Page 15: O T A L I Z At I O N
To t a l i z a t i o n 4 . 1 5 Totalization function is used to accumulate total weight of different weightings registered with or Auto print. Place your item on the scale. Enter unit price and confirm by pressing the key. -
Page 16: H A N G E F U N C T I O N ( S I N G L E I T E M )
C h a n g e f u n c t i o n ( s i n g l e i t e m ) 4 . 1 7 Ensure the change function is activated in the user menu. Place your item on the scale and enter the unit price The will calculate the price to pay Press the... -
Page 17: Alictles (Plu)
5. ALICTLES (PLU) SETUP PLU SETUP To enter PLU programming press One in PLU programming display prompts: 00001 Enter PLU number and press Enter PLU price (exp. 5.00), confirm with 0005.00 To associate Article number to this PLU enter Article or leave PRICE 00 for no Article number confirm with Artnu... -
Page 18: Weighing Functions (Funcs)
6. WEIGHING FUNCTIONS (FUNCS) WEIGHING FILTER Medium FILTER High Using the numeric keyboard enter the desired value Press to go to next parameter BACKLIGHT Turn on/off the display backlight illumination BACK-L Using the numeric keyboard enter the desired value Press to go to next parameter DATE 180120... -
Page 19: Print Setup (Print)
7. PRINT SETUP (PRINT) LABEL Choose label # form to print: LABEL 00 – Default 01 – Optional 02 – Optional 03 – Optional Using the numeric keyboard enter the desired value Press to go to next parameter LOT-1 Used in labeling mode LOT-1 Enter up to 15 numbers Using the numeric keyboard... - Page 20 CLIENT Activation of Accumulating function CLIENT Using the numeric keyboard Press to go to next parameter AUTO PRINT The scale will automatically print a label once weight is stable APRINT Using the numeric keyboard Press to go to next parameter APRIN-D Additional setting parameter for auto print APRIN-d...
-
Page 21: Interface
8. INTERFACE The scale is equipped as standard with a dual RS232 on a single RJ45 port. To use the 2 interfaces, you will need an adapter cable COM1 SPEED 019.2 Enter COM1 speed: 004.8 – 4800bps BAUND1 009.6 – 9600bps 019.2 - 19200bps (PC software, Master/Slave) Using the numeric keyboard enter the desired value Press... -
Page 22: Scale Info
COM2 Parameter Select protocol parameter 00- Reserved PAR-2 Using the numeric keyboard enter the desired value Press to go to next parameter Prot-2 Select protocol 00- PC software SiComm, Master mode 01- Label editor connection 02- Printer connection PROT 2 03- CAS 04- Bimco 05- Datecs... - Page 24 3 Kapitan Krystev str. Silistra 7500 BULGARIA Tel.: +359 86 820 200, 882 255 e-mail: info@elicom-bg.com www.elicom-bg.com...
