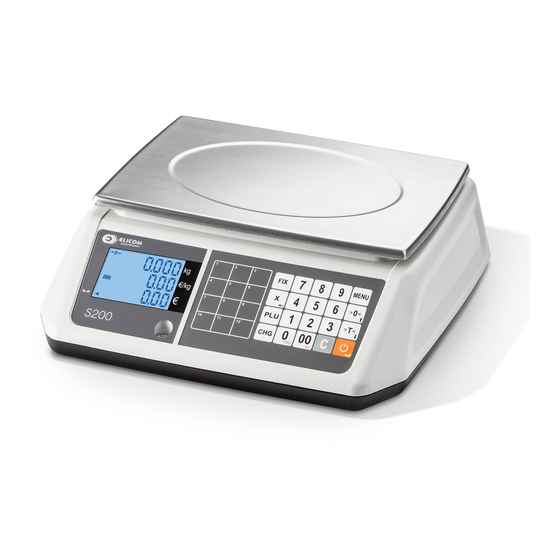

USER MANUAL
PRICE COMPUTING SCALE
S200
R e v. 1 . 3

Advertisement

Table of Contents
loading

Related Manuals for Elicom Electronic S200

Summary of Contents for Elicom Electronic S200

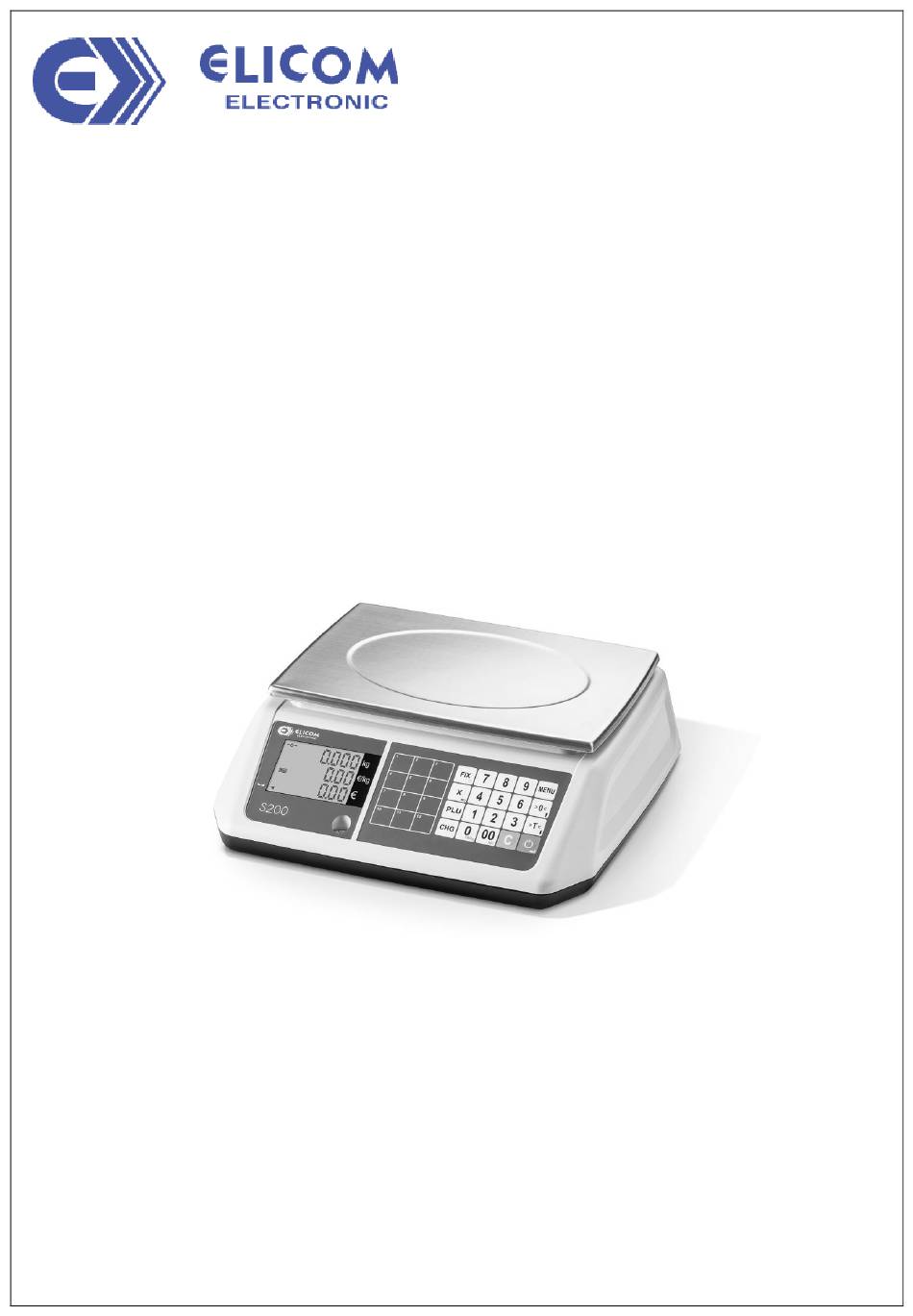

  • Page 1 USER MANUAL PRICE COMPUTING SCALE S200 R e v. 1 . 3...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION .................................. 3 1.1 P ..................................3 RECAUTIONS 2. INSTALLATION ................................... 3 2.1 P ................................3 ACKAGE ONTENTS 2.2 M ................................ 4 ETAL SSEMBLY ..........................4 2.3 P LACING AND EVELLING THE CALE ................................. 4 2.4 P OWER ONNECTION ..............................

  • Page 3: Introduction

    1. INTRODUCTION This document contains information about how to install and operate your S200 price computing scale. Please read carefully the manual before using the device. P r e c a u t i o n s 1 . 1 •...

  • Page 4: Metal Pan Assembly

    2 . 4 P o w e r C o n n e c t i o n S200 is powered through the manufacturer approved AC power adapter. First connect the adapter cord to the scale’s power input jack and then plug the adapter to the power outlet.

  • Page 5: Rechargeable Battery

    2 . 5 R e c h a r g e a b l e B a t t e r y S200 has the option to be fitted with a rechargeable 3.7V Li-on battery which allows the scale to operate independently from an external power supply making it perfect for outdoors usage.

  • Page 6: Overview

    3. OVERVIEW 3 . 1 D i m e n s i o n s Fig. 3.1 - Model S200B Dimensions Fig. 3.2 - Model S200L Dimensions...

  • Page 7: Display

    Table 3.2 – Additional information on front 3 . 3 K e y b o a r d S200 has a light touch waterproof membrane keyboard with 20 functional keys and 12 hot keys for PLU commands. Keyboard Functional Zones 1.

  • Page 8: View From Below

    3 . 4 V i e w f r o m b e l o w 1. Power supply connection 2. RS232 interface connection 3. Calibration seal 4. Adjustable feet Table 3.4 – View from below information Fig. 3.5 – View from below 3 .

  • Page 9: Operation

    4. OPERATION Operation Description 4.1 Turning the Scale ON Press the key key. At start up the scale runs a short display test procedure. All display segments light up briefly and the software version is displayed in the price to pay line. The scale is ready to use once the weight display appears. 4.2 Turning the Scale OFF Press and hold the key until you hear a beep.
  • Page 10 Operation Description You can assign a hot key to the most frequently used PLUs as follows: 1. Enter a price/kg of your choice e.g. 2.55 €/kg 4.6 Storing a PLU to Hot keys 2. Press and hold the hot key you have chosen (e.g. ) until you hear a long beep.
  • Page 11 Operation Description When the exact TARE weight is known, you can manually set it: 1. Input known tare weight in grams and press 4.11 Manual TARE 2. Place item to be weighed and input price to pay Please note: - Manual Tare is indicated by the PT icon This function is not activated in legal for trade version The by-count operation can be used when the scale is used to sell non-weighed items.
  • Page 12 Operation Description 1. Ensure the change function is activated in the user menu. Place your item on the scale and enter the unit price. 4.14 Change function (single Press the key and enter the amount that has been paid. item) and change amount will appear in the €/kg line.
  • Page 13 Operation Description 100g pricing mode is used in areas were unit price is carried out by 100g instead of by 1kg. 1. Place your item on the scale. key until “100g” icon is displayed. 2. Hold the 4.17 100g function 3.

  • Page 14: User Settings

    5 . 2 U s e r S e t t i n g s M e n u - O v e r v i e w Table 5.1 presents the menu content as it appears in the scale’s main display and provides information about how the various functions supported by S200 can be configured. Menu Content Description −−−...
  • Page 15 −−− 5. Tare Clearing Switch ON/OFF Auto Tare Clearing. −  >   −−− 6. Fix function Switch ON/OFF Fix function.   >   −−− 7. Auto PLU call Switch ON/OFF Auto PLU call mode. −  >...
  • Page 16 13. Protocol type Possible protocol types: −−− 0. CAS 1. ELICOM  2. DIBAL 3. METTLER  4. DELMAC 14. Weighing Possible settings: −−− sensitivity filter 0. Low digital filtering  1. Medium digital filtering  2. High digital filtering −−−...

  • Page 17: Technical Data

    Single interval 30 kg 10 g 290mm x 221mm Table 6.1 – S200 Technical data Display: 3 line LCD display with backlight Keyboard: Light touch waterproof membrane keyboard, 20 functional keys and 12hot keys for PLU PLU Memory: 70 PLU...
  • Page 18 Main office and manufacturing pl. Saedinenie 5 Silistra 7500 BULGARIA Tel.: +359 86 820 200, 882 255 fax: +359 86 820 555 e-mail: info@elicom-bg.com www.elicom.bg...
