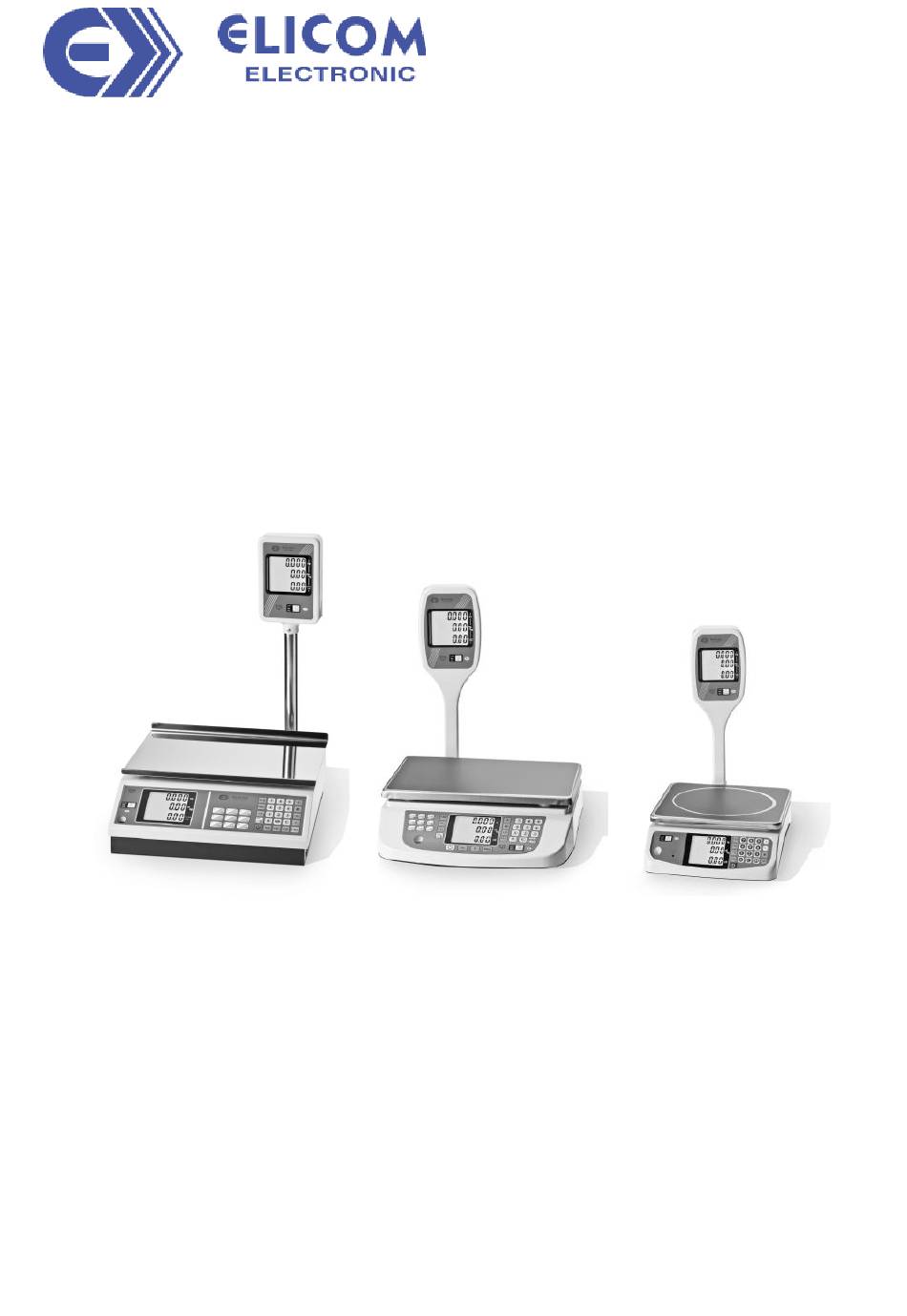

- Page 1 OWNER’S MANUAL Electronic scales Series EVLplus Model: Т Model: М Model:F Version: 1.10...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ........................2 SET UP AND SCALE SITTINGS ................3 ....................... 3 ONTENTS ..................3 AFETY PRECAUTIONS ..................3 EVELING THE SCALE ....................... 3 LEANING ......................4 ISPOSAL ................4 ONNECTING TO MAINS POWER ................... 4 URNING SCALE MAIN FUNCTIONS ....................4 ...................... -
Page 3: Set Up And Scale Sittings
SET UP AND SCALE SITTINGS Contents Check that scale comes the following contents: Scale Metal tray Power adapter Owner’s manual Battery (optional) Safety precautions For safe use of the scale you must obey the following conditions: ... -
Page 4: Disposal
Disposal In accordance with the requirements of European Directive 2002/96 EC on Waste Electrical and Electronic Equipment (WEEE), this device may not be disposed of with domestic refuse. This also applies for countries outside the EU in accordance with their respective national regulations. -
Page 5: Models
Models EVLplus xx LT3 EVLplus xx BT3 EVLplus xx LM6 EVLplus xx BM6 EVLplus xx LF8 EVLplus xx BF8... -
Page 6: Keyboard
Keyboard Model: LT, BT Model: LM, BM Model: LF, BF... -
Page 7: Main Functions Of The Keys
Main functions of the keys On/Off Setting scale to Zero Tare PRINT – printing receipt or label on printer (when applicable) ON/OFF backlight Selling by pcs PRINT - Printing receipt or label (models BF, LF) ... -
Page 8: Main View

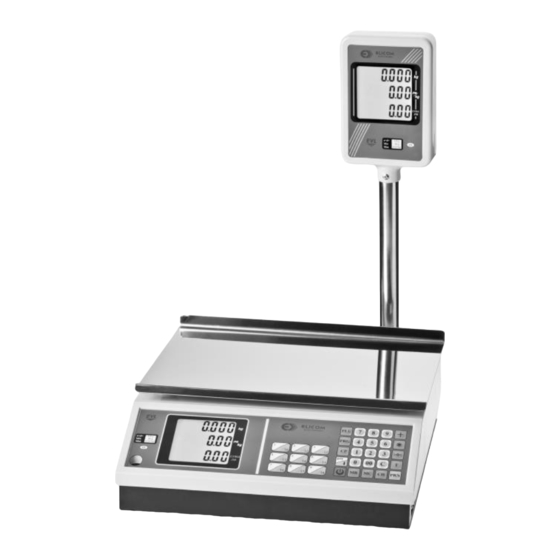

Main view Model: EVL+ xx LT1 Description Lower body Weighing platform Upper body Leveler Adjustable legs Keyboard Client display Operator’s display Interface RS232... -
Page 9: Technical Data
Technical Data 2.6.1 Main data Dimensions: LM,BM,LT,BT:380 х 300 х 129 mm; LF,BF: 260x290x95 mm Weight: 4.5 kg Display: For version LM,LT, LF: Operator - LCD – three line with backlight;- 1 pc – LCD – three line with backlight;- 1 pc Client ... -
Page 10: Scale's Operations
3 SCALE’S OPERATIONS Backlight On/Off From normal mode (free of weight) use to turn on/off the backlight Free price input . . . . . . From normal weighing mode, place the product Enter price per kg (2.56EUR) on the weighing pan keys .... -
Page 11: Selling By Pcs
Selling by PCS Example: selling 6pcs x 0.25EUR . . . . Enter the price per pcs Enter number of pcs you want to sell enter keys The line to total is showing the total price to pay to sell by pcs Work with PLU 3.4.1 Programming of PLU... - Page 12 . . . Confirm the PLU number. The programmed - switch to PLU № 13 price and Tare are visualized. The price is blinking . . . . Enter the desired price. For example: 4.75. If you The value of the Tare is shown as a negative.
-
Page 13: Selling Stored Plu
3.4.2 Selling stored PLU The item is stored as PLU № 1 . . . . . . Place the item on the scale Press to call PLU1 When the desired PLU is between 10 and 18 (example 10) press followed by For all other PLU, enter the PLU number followed by The total sum to pay is displayed on the third line on the display... -
Page 14: Manual Tare
. . Т . . . To check the tare weight when scale is loaded When scale is free of weight Use to clear press and the tare weight is displayed for 5 the tare sec. The icon T is indicating that the weight is Tare. -
Page 15: Accumulating
Accumulating Note This functionality is only legal in certain countries Function is deactivated by default 3.6.1 Accumulating sales Press to add a sale into accumulating. . The display shows an arrow icon on the left to Place second item, enter price to pay and add to indicate that a sale is stored accumulation by... -
Page 16: Deleting A Sale From Accumulation
3.6.3 Deleting a sale from accumulation From the accumulation list you can delete any of the sales. Use for model LF,BF) to go to the desired sale you want to delete. Double press for LF,BF) to delete the desired sale. Deleting a sale .... -
Page 17: Register Of Sales
3.6.5 Register of sales When accumulation function is activated all sales are saved in a register of sales. In this register are accumulated all stored PLU and free price input sales. All free price input sales are stored as PLU (MAX +1). -
Page 18: Counting Mode
COUNTING mode Note This functionality is only legal in certain countries Function is deactivated by default For best performance of the counting mode, it is recommended to use Base number of details with weight which is larger than 1/3 of the scale maximum. Example: If the scale max capacity is 3kg use at least 1kg of details to calibrate the counting mode. -
Page 19: Labeling And Pre-Labeling Mode
If Tare will be used, place the weight of the Tare on the scale and save the weight of the tare with To set up the “Base weight” press for models LF,BF). On the middle line of the display is shown: „base” / “neto” and the weight line is shown the saved „Base Weight”... -
Page 20: Printing Group Label
3.8.3 Printing group label for LF,BF) to enter into Group mode switch between accumulation of weight and quantity From the desired mode weighing/quantity print a label with for LF,BF) Clear accumulations with double press for model LF,BF) 3.8.4 Pre-labeling ... - Page 21 . Battery voltage (6.41V) Calibration menu (jumper protected) Interface communication setting. Interface parity control and other settings ON/OFF automatic tare clear after scale ON/OFF automatic price clear after unload unloading the scale...
-
Page 22: Service Mode 2
. AUTO OFF – automatic turn off. Enter time software version to turn off in minutes. After turning on the scale from AUTO OFF, the scale in not making initial test . Value = 0 - Zero tracking is off Value =1 –... - Page 23 . . Decimal point in the price (0/1 – Yes/No) Parameter LABEL – show the number of changed with label form sent to printer 1410 Date and time set up used to Stand number switch from date to time settings...
- Page 24 –Activate/Deactivate automatic label print – – Label consequence number change by . . –Activate/Deactivate Accumulation function – batch number 1 – changed by . . –...
- Page 25 . . –Activate/Deactivate Pre-Labeling function – Activating/Deactivating Counting mode – changed by - changed by . . . . – Calling PLU by PLU (PLU1) or by article – Going back to weighing mode number (Art1) - changed by...
-
Page 26: Battery Check
Battery check This function allows you to see the current voltage (condition of the rechargeable battery). In case of low battery the “batLO” message is shown on the display and scale turns off. - to enter battery voltage condition. -
Page 27: Interface Rs232 Settings
Interface RS232 settings The scale can be connected to PC, label printer or cash register via RS232 connection. A 9-pin connector is mounted with 2 different channels for connection. Channel 1: – PIN 5 - mass – PIN 2 - receiving (active +5V for “0”) –... - Page 28 Main office and manufacturing Saedinenie sq. Silistra 7500 BULGARIA Tel.: +359 86 820 200, 882 255 fax: +359 86 820 555 e-mail: info@elicom-bg.com www.elicom-bg.com...
