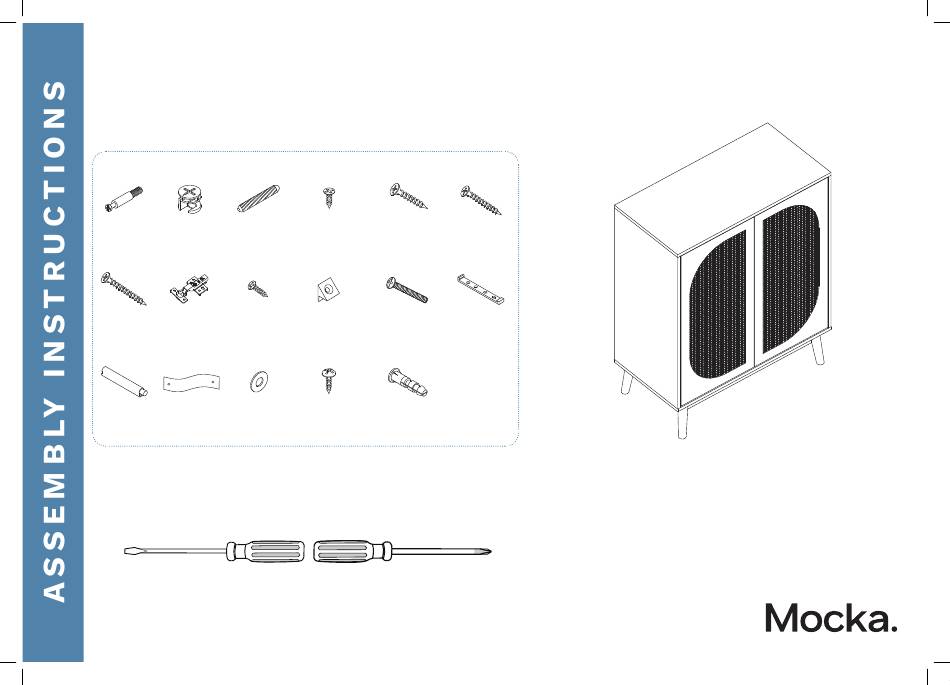

Mocka Claremont Assembly Instructions Manual

Claremont

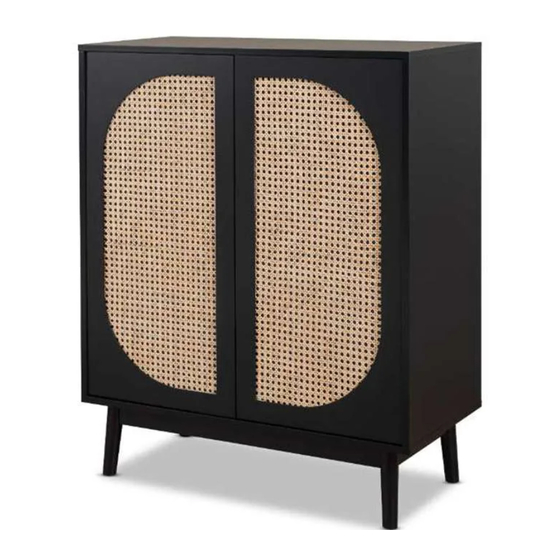

Two Door Cabinet
A B C
x12 x12 x20
bolt nut dowel
G H I
x8 x4 x12
4"45 screw hinge 3"14 screw
M N O
x2 x2 x4
spacer wall strap washer
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
D E
x28 x16 x6
3"12 screw 4"25 screw 4"35 screw
J K L
x12 x8 x2
wedge 6"50 screw clip
P Q
x2 x2
4"14 screw wall plug
F
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
