Charli Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking
dowel
x16
nut x16
x8
I
J
K
CL
CR
DL
runner
runner
runners
tracks
tracks
x3
x3
x3

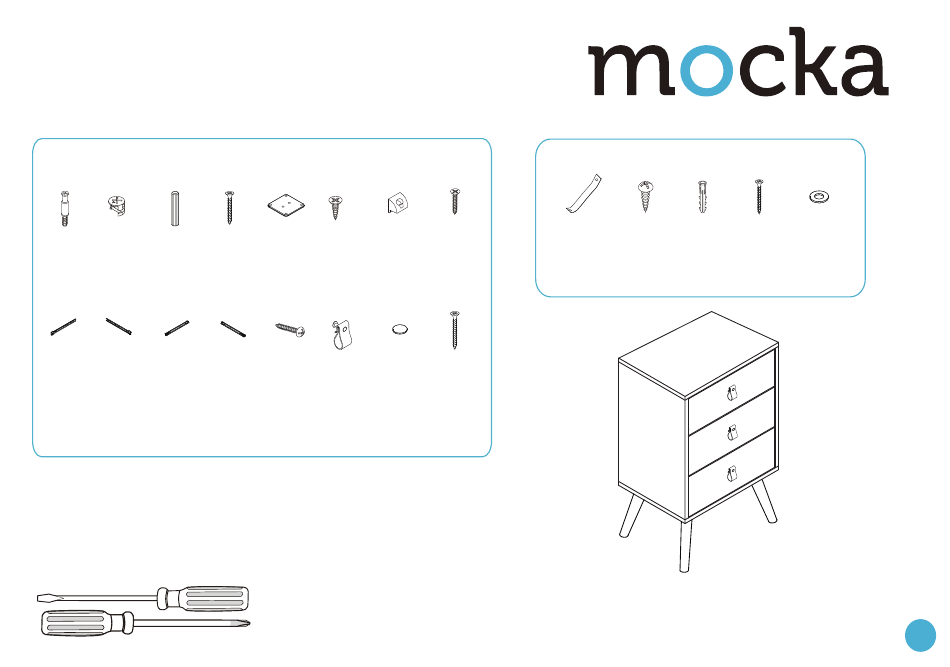

Hardware Supplied
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
G
screw
bracket
small
wedge
x20
x4
screw
x4
x30
L
M
N
screw
felt pad
DR
handle
x16
x3
runners
x3
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
safety
screw
strap x1
x4
O
P
long
x4
screw
x4
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
V
W
X
Y
screw
wall
wall
x1
anchor
screw
x1
x1
Wall Strap
Z
washer
x2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Charli Bedside Table
Summary of Contents for Mocka Charli Bedside Table
- Page 1 Charli Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. safety screw wall wall washer bolt locking dowel screw bracket small wedge screw strap x1 anchor screw screw nut x16 Wall Strap...
- Page 2 Attach 3x CL runner track (I) to panel [2] and secure with 9x small screws (F). Attach 3x CR runner track (J) to panel [3] and secure with 9x small screws (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach panel [4] secure with 4x locking nuts (B). Tighten with a screwdriver. to the unit with 4x dowels (C) and secure with 4x long screws (P). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Screw on 4x legs [6] to the brackets on panel [4] until secure. brackets (E) to panel [4] with 16x screws (M). Tighten with a screwdriver. Apply 4 x felt pads (O) to legs [6] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Slide the completed drawers into the unit, ensuring they slide smoothly Attach panels [9] and [10] to panel [7] with 4x locking nuts (B). and easily. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 Slide panel [11] along the grooves between the side panels [9] and Attach panels [9], [10] and [8] with 4x screws (D). Tighten with a [10] to form the base of the drawer. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Loosen the screw on the back of the handle. Attach 1x handle (N) to 4x small screws (F). Tighten with a screwdriver. panel [7] with screw as shown. Complete the other two drawers. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 8 Attach 4x wedges (G) into the corners of the back of the unit as shown. Ensure the drawers slide easily along the rails. and secure with 4x screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 9 Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
