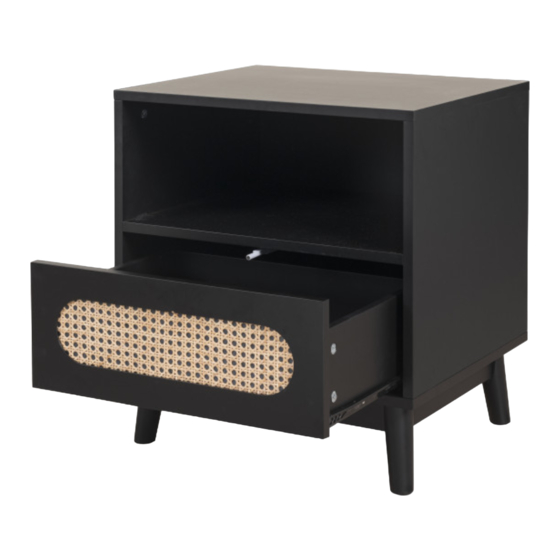

Claremont Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
nut
×12
×12
G
H
4"35 screw
4"45 screw
×5
×8
N
O
6"50 screw
clip
×8
×1
Z
safety strap
×1
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
dowel
3"12 screw
4"25 screw
x16
x12
I
J
3"14 screw
wedge
x4
x4
P
W
spacer
washer
4"14 screw
x1
x2
Hardware Supplied
E
F
4"30 screw
x16
×4
K
L
left rail
right rail
x1
×1
X
Y
wall plug
x1
×1
WARNING:
the potential to tip over in certain circumstances, ie. if a child
attempts to climb on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Any furniture that is not anchored to a wall has
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Claremont Bedside Table and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Claremont Bedside Table

  • Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 2 Claremont Bedside Table Assembly Instructions mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 3 Attach 4 x bolts and 1 x left rail (K) and 1 x right rail (L) and secure with screws (D) to panels [1] and [5] as shown. Tighten with a screwdriver. 6 x screws (D) to panels [3] and [4] as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 4 Attach panel [1] to panels [2] and [3] and secure with 4 x dowels (C) and 4 x nuts (B). Tighten with a screwdriver. and 4 x nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 5 Slide panel [6] into position as shown. Attach panel [2] to assembled frame and secure with 4 x dowels (C) and 4 x screws (G). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 6 Attach assembled frame to panel [2] as shown and secure with 4 x screws (E). Tighten with a screwdriver. dowels (C) and 8 x screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 7 Attach 4 x bolts (A) to panel [11]. Attach left rail (L) and right rail (K) to screws (N). Tighten with a screwdriver. panels [12] and [13] and secure with 4 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 8 Claremont Bedside Table Assembly Instructions Attach panels [12] and [13] to panel [14] and secure with 4 x screws Slide panel [15] into position as shown. (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 9 Claremont Bedside Table Assembly Instructions Attach panel [11] to assembled frame as show and secure with 4 x nuts Slide assembled draw into position as shown. (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 10 Tighten with a screwdriver. Fasten to the wall using 1x wall plug (Y), 1 x screw (G) and 1 x washer (W). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
  • Page 11 Claremont Bedside Table Assembly Instructions You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
