Mocka Claremont Entertainment Unit Assembly Instructions Manual

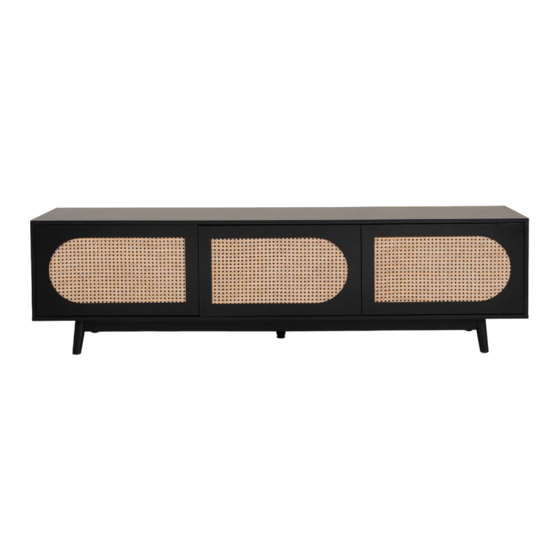

Claremont Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B
bolt nut dowel
x12 x12
G H
4"45 screw hinge 3"14 screw
x16 x6
M N
foot 6"50 screw
x1 x8
Y
Z
wall plug
wall strap
x2
x2
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C D
3"12 screw 4"25 screw
x26 x42 x16
I J
wedge plate
x12 x12 x1
O P W
clip spacer washer
x3 x3 x4

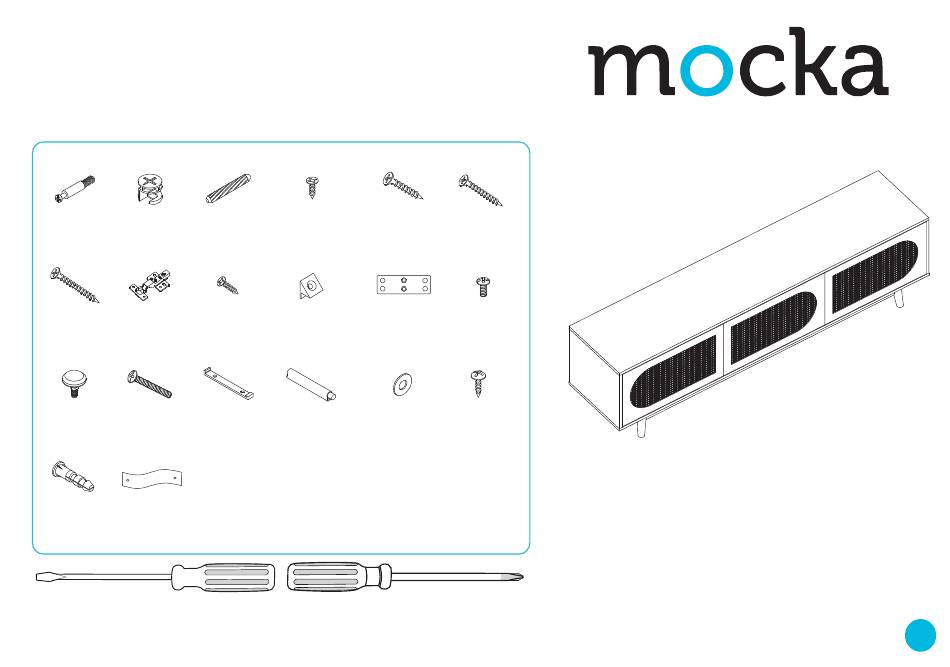

Hardware Supplied
E F
4"35 screw
x10
K L
6"12 screw
x4
X
4"14 screw
x2
WARNING:
the potential to tip over in certain circumstances, ie. if a child
attempts to climb on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Any furniture that is not anchored to a wall has
1
