Chelsea Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
D
A
B
dowel
screw
bolt
locking
x4
x16
x8
nut x8
I
J
K
small
locking
screw
slide
small
nut x4
rail x1
bolt x4

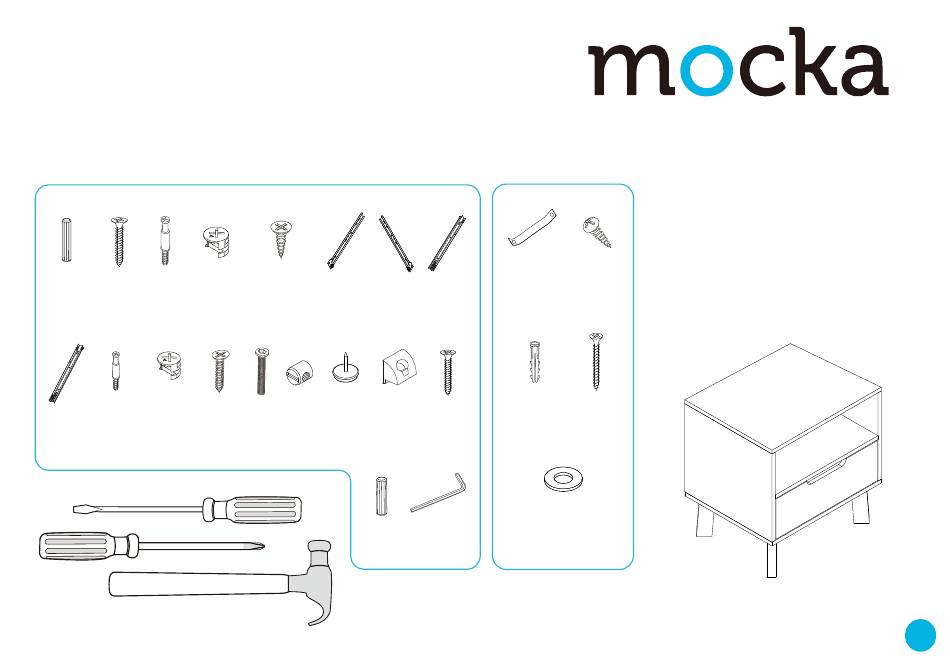

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
F
G
E
small
slide
slide
screw x10
rail x1
rail x1
L
O
M
N
P
wedge
nut
plastic
bolt
x4
x4
glide x4
x4
x4
R
dowel
x4
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
H
V
W
screw
safety
x1
strap x1
slide
rail x1
X
Y
Q
wall
screw
screw
x1
anchor x1
x4
Z
S
washer
x2
allen
key x1
Wall Strap
WARNING:
Any furniture that is not anchored to a wall
has the potential to tip over in certain circumstances, i.e.
if a child attempts to climb up on the furniture or in the
event of an earthquake. Accordingly, we recommend
that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we
recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall
types, but please note that different wall materials may
require different fixing devices from those supplied.
1
Advertisement
Table of Contents
Related Manuals for Mocka Chelsea Bedside Table
Summary of Contents for Mocka Chelsea Bedside Table
- Page 1 Chelsea Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Chelsea Bedside Table Assembly Instructions Insert 4x dowels (A) and 2x bolts (C) into panel [2]. Insert 4x dowels (A) Attach 1x slide rail (F) to panel [2] and secure with 3x small screws (E). 2x dowels (C) into panel [3].
- Page 3 Chelsea Bedside Table Assembly Instructions Attach panels [4] and [5] to the dowels on panels [2] and [3], securing Insert 4x bolts (C) into panel [1]. with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Chelsea Bedside Table Assembly Instructions Attach panel [1] to panels [2] and [3] using 4x dowels (A) and secure Slide panel [7] down along the grooves between side panels [2] and [3] with 4x locking nuts (D). Tighten with a screwdriver.
- Page 5 Chelsea Bedside Table Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS × Attach the remaining 2x legs [8] to panel [6] with 2x dowels (R) and 2x Attach 2x legs [8] to panel [6] with 2x dowels (R) and 2x bolts (M) as shown.
- Page 6 Chelsea Bedside Table Assembly Instructions Drawer x1 Insert 4x small bolts (J) into panel [9]. Secure panels [10] and [11] to Attach panel [6] to the rest of the unit using 4x dowels (A) and secure panel [9] with 4x small locking nuts (K). Tighten with a screwdriver.
- Page 7 Chelsea Bedside Table Assembly Instructions Wall Strap strap Attach panel [13] to panels [10] and [11] using 4x screws (L). Now attach 1x Attach 4x wedges (P) to the corners of the back of the unit and secure slide rail (I) to panel [11] and 1x slide rail (H) to panel [10] as shown. Secure with 4x screws (Q).
- Page 8 Chelsea Bedside Table Assembly Instructions Wall Strap strap wall anchor screw Once assembled lift furniture into place, do not drag. Use a drill to create Ensure unit is balanced and steady before use. You’re done, enjoy! a small hole lining up with the top of the safety strap (V). Fasten to wall using 1x wall anchor (X), 1x washer (Z) and 1x screw (Y).
