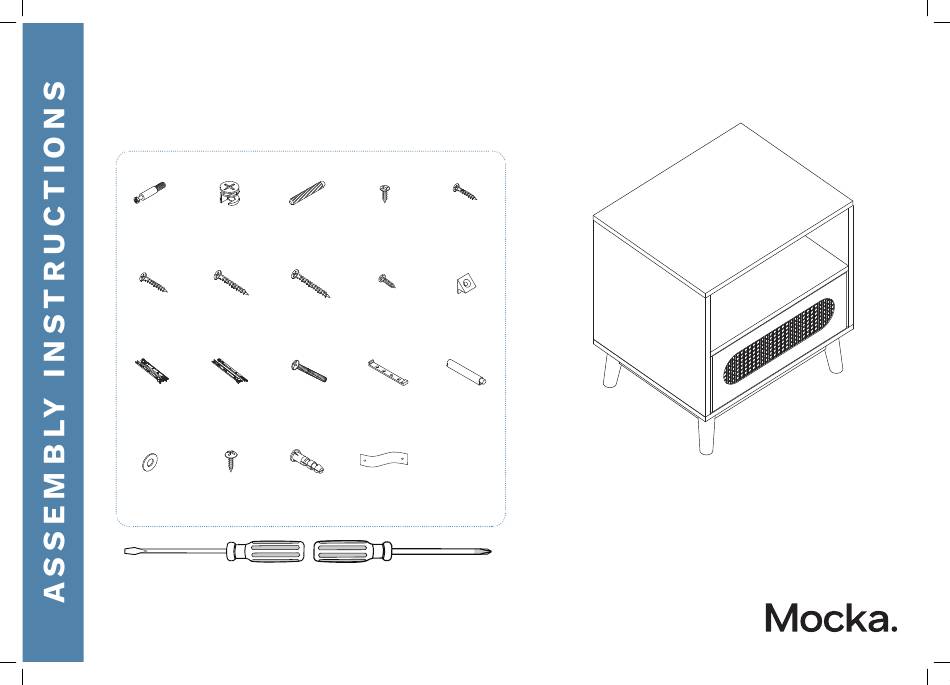

Mocka Claremont Assembly Instructions Manual
Bedside table
Hide thumbs
Also See for Claremont:
- Assembly instructions manual (14 pages) ,
- Assembly instructions manual (14 pages) ,
- Assembly instructions manual (10 pages)
Advertisement
Quick Links
Claremont
Bedside Table
A
B
×12
×12
bolt
nut
dowel
F
G
×4
×5
4"30 screw
4"35 screw
4"45 screw
K
L
x1
×1
left rail
right rail
6"50 screw
P
Q
x2
x1
washer
4"14 screw
wall plug
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
C
D
E
x16
x12
x16
3"12 screw
4"25 screw
H
I
J
×8
x4
x4
3"14 screw
wedge
M
N
O
×8
×1
x1
clip
spacer
R
S
×1
×1
safety strap
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Claremont
Summary of Contents for Mocka Claremont
- Page 1 fixing device provided should fit most wall types, but please note Phillips & Flathead screwdrivers required. that different wall materials may require different fixing devices from For quicker assembly, we recommend the those supplied. use of a power drill on a low-speed setting. mocka.co.nz I mocka.com.au I...
- Page 2 Attach 4 x bolts and 1 x left rail (K) and 1 x right rail (L) and secure screws (D) to panels [1] and [5] as shown. Tighten with a screwdriver. with 6 x screws (D) to panels [3] and [4] as shown. Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 3 Attach panels [3] and [4] to panel [5] and secure with 4 x dowels (C) Attach panel [1] to panels [2] and [3] and secure with 4 x dowels (C) and 4 x nuts (B). Tighten with a screwdriver. and 4 x nuts (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 4 Claremont Bedside Table Slide panel [6] into position as shown. Attach panel [2] to assembled frame and secure with 4 x dowels (C) and 4 x screws (G). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 5 Attach panels [7], [8] and [9] together as shown and secure with 16 x Attach assembled frame to panel [2] as shown and secure with 4 x screws (E). Tighten with a screwdriver. dowels (C) and 8 x screws (H). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 6 Attach 4 x bolts (A) to panel [11]. Attach left rail (L) and right rail (K) to screws (M). Tighten with a screwdriver. panels [12] and [13] and secure with 4 x screws (D). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 7 Claremont Bedside Table Attach panels [12] and [13] to panel [14] and secure with 4 x screws Slide panel [15] into position as shown. (F). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 8 Claremont Bedside Table Attach panel [11] to assembled frame as show and secure with 4 x nuts Slide assembled draw into position as shown. (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I...
- Page 9 (S). Tighten with a screwdriver. Fasten to the wall using 1x wall plug (R), 1 x screw (G) and 1 x washer (P). Ensure unit is balanced and steady before use. mocka.co.nz I mocka.com.au I...
- Page 10 Claremont Bedside Table You’re done, enjoy! mocka.co.nz I mocka.com.au I...
