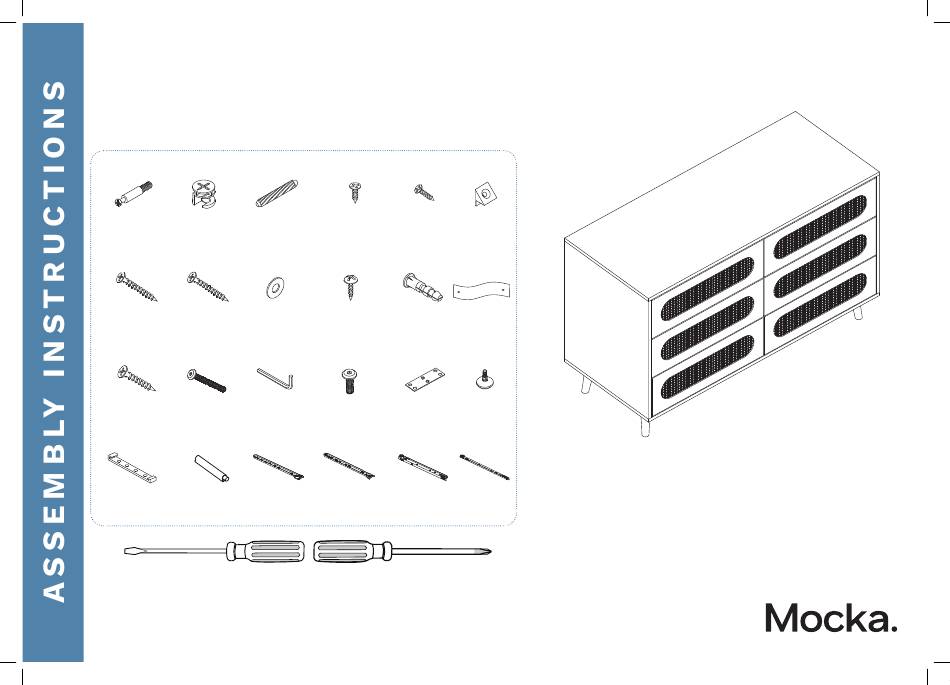

Mocka Claremont Assembly Instructions Manual

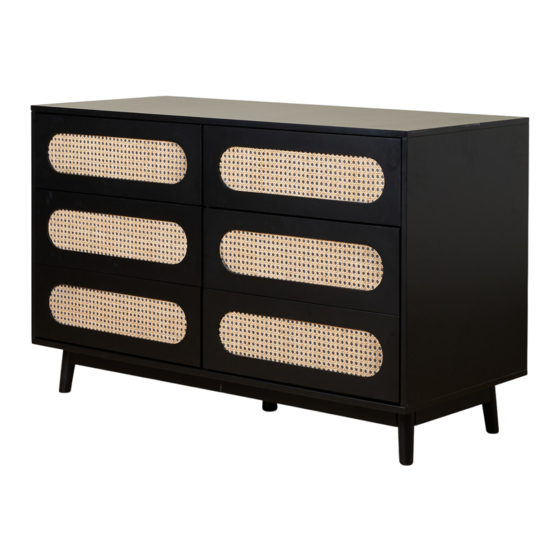

Claremont
Six Drawer - Black
A B C
x56 x56 x21
bolt nut dowel
G H I
x41 x10 x4
4"35screw 4"45screw washer
M N O
x1
x16 x8
allen key
4"25 screw 6"50 screw
T CL
S
x6
×6 x6
slide
clip spacer
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
D E F
x72 x8 x8
3"12 screw 3"14 screw bracket
J K L
x2 x2 x2
4"14screw wall plug wall strap
P Q R
x4 ×1 ×1
6"12 screw plate foot
CR DL DR
x6 ×6 ×6
slide slide slide
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
