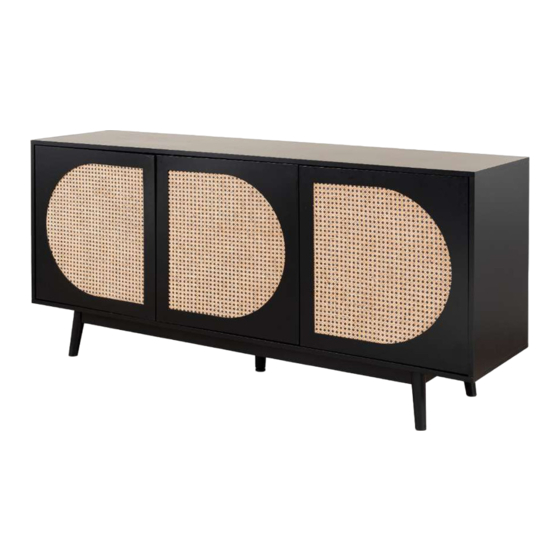

Claremont Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
bolt
nut
dowel
x12
x12
G
H
4"45 screw
hinge
3"14 screw
x12
x6
M
N
foot
6"50 screw
x1
x8
S
T
washer
4"14 screw
wall plug
x4
x2
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
3"12 screw
4"25 screw
x26
x42
x16
I
J
wedge
plate
x12
x12
x1
O
P
clip
spacer
peg
x3
x3
x8
U
x2
Hardware Supplied
E
F
4"35 screw
x12
K
L
6"12 screw
x4
Q
R
wall strap
x2
WARNING:
the potential to tip over in certain circumstances, ie. if a child
attempts to climb on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Any furniture that is not anchored to a wall has
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Claremont Buffet
Summary of Contents for Mocka Claremont Buffet
- Page 1 Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Claremont Buffet Assembly Instructions mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach 8 x bolts (A), 2 x spacer (P), 2 x clip (O) to panel [1] and secure Attach 4 x bolts (A) to panels [4] and [5] as shown. Tighten with a with 4 x screws (D). Tighten with a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Attach panels [3], [4], [5] and [6] to panel [1] and secure with 8 x dowels and 4 x nuts (B). Tighten with a screwdriver. (C) and 8 x nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Slide panels [9] and panel [10] into position as shown. Attach panel [2] to assembled frame and secure with 8 x dowels (C) and 8 x screws (F). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 (C) and 12 x screws (G). Attach leg to assembled frame and secure secure with 2 x screws (F). Tighten with a screwdriver. with 4 x screws (L). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Attach 2 x hinges (H) to panel [16] and secure with 4 x screws (D). secure with 8 x screws (N). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 8 Attach 8 x pegs (Q) to panels [4] and [6] as shown. Slide panels [7] into Attach assembled frames together and secure with 2 x hinges (H) and position. Tighten with a screwdriver. 8 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 9 Attach 12 x wedges (J) as shown and secure with 12 x screws (I). screws (D). Tighten with a screwdriver. Attach 2 x safety straps (R) and secure with 2 x washers (S) and 2 x screws (T). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 10 2 x safety straps (R). Fasten to the wall using 2 x wall plugs (U), 2 x screws (F) and 2 x washers (W). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
