Chelsea Low Sideboard
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
D
A
B
dowel
long
bolt
locking
x24
dowel x4
x12
nut x12
L
I
J
K
small
screw
small
locking
slide
x12
bolt x10
x10
rail x2

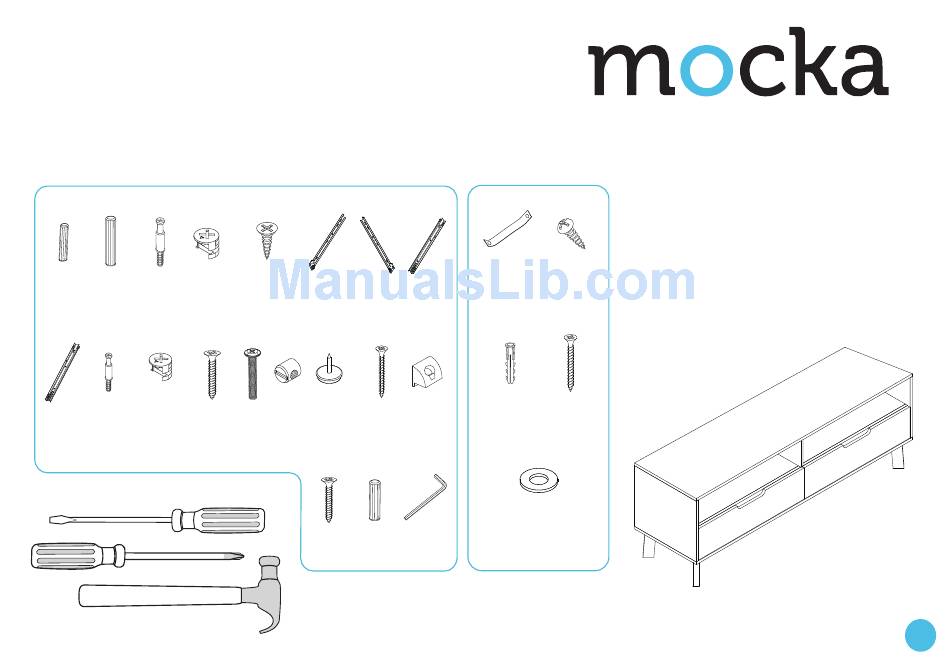

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
mocka.co.nz | mocka.com.au
F
G
E
small
slide
slide
slide
screw x20
rail x2
rail x2
rail x2
P
M
N
O
plastic
screw
wedge
nut
bolt
x9
x4
glide x4
x4
R
S
screw
dowel
allen
x4
x4
key x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
H
V
W
screw
safety
x1
strap x1
X
Y
Q
wall
screw
anchor x1
x1
x4
Z
T
washer
x2
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
1
Advertisement
Related Manuals for Mocka Chelsea Low Sideboard
Summary of Contents for Mocka Chelsea Low Sideboard
- Page 1 Chelsea Low Sideboard Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Chelsea Low Sideboard Assembly Instructions FLIP Attach panel [6] to panel [4] using 2x long dowels (B) and 2x screws (P). Attach 1x slide rail (G) to the side of panel [7] as shown above. Secure Attach 2x bolts (C) to panel [4]. Tighten with a screwdriver.
- Page 3 Chelsea Low Sideboard Assembly Instructions Attach panel [7] to panel [4] and secure with 2x locking nuts (D). Tighten Attach panels [5] either side of panel [7] using 2x long dowels (B) as with a screwdriver. shown. mocka.co.nz | mocka.com.au...
- Page 4 Chelsea Low Sideboard Assembly Instructions Attach 1x slide rail (F) to panel [2] and secure with 3x small screws (E). Attach panels [2] and [3] to panels [4]/[5] and secure with 4x locking nuts Now insert 4x small dowels (A) and 2x bolts (C) into panel [2]. Attach 1x (D).
- Page 5 Chelsea Low Sideboard Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Insert 6x bolts (C) into panel [1]. Attach panel [1] to panels [2], [3] and [6] using 6x small dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver.
- Page 6 Chelsea Low Sideboard Assembly Instructions × Slide panel [9] down the grooves between panels [2] and [3] to form the Attach two leg panels [10] to the underside of panel [8] as shown, using back of the unit. 2x dowels (S) and 2x bolts (M). Secure with 2x nuts (N). Tighten the bolts with the allen key (T) and the nuts with a flathead screwdriver.
- Page 7 Chelsea Low Sideboard Assembly Instructions Attach two leg panels [10] to panel [8] using 2x dowels (S) and 2x bolts (M). Attach panel [8] to the main unit as shown, using 6x small dowels (A) and Secure with 2x nuts (N). Tighten the bolts with the allen key (S) and the nuts with secure with 6x screws (P).
- Page 8 Chelsea Low Sideboard Assembly Instructions Drawers x2 Insert 1x dowel (A) and 5x small bolts (J) into panel [12]/[18]. Secure Attach panel [16] to panels [13] and [14] using 6x screws (L). Now attach 1x panels [13], [14] and [17] to panel [12]/[18] with 5x small locking nuts slide rail (I) to panel [14] and 1x slide rail (H) to panel [13] as shown.
- Page 9 Chelsea Low Sideboard Assembly Instructions Wall Strap strap wall plug screw strap Attach 4x wedges (Q) to each corner of back panel [9] as shown, and Once assembled lift furniture into place, do not drag. Use a drill to create secure with 4x screws (R).
