Dimensions

Connection Details

Suction connection
Discharge connection
Oil sight glass
Oil equalization connection
Oil drain connection
Low pressure gauge port (Shrader)

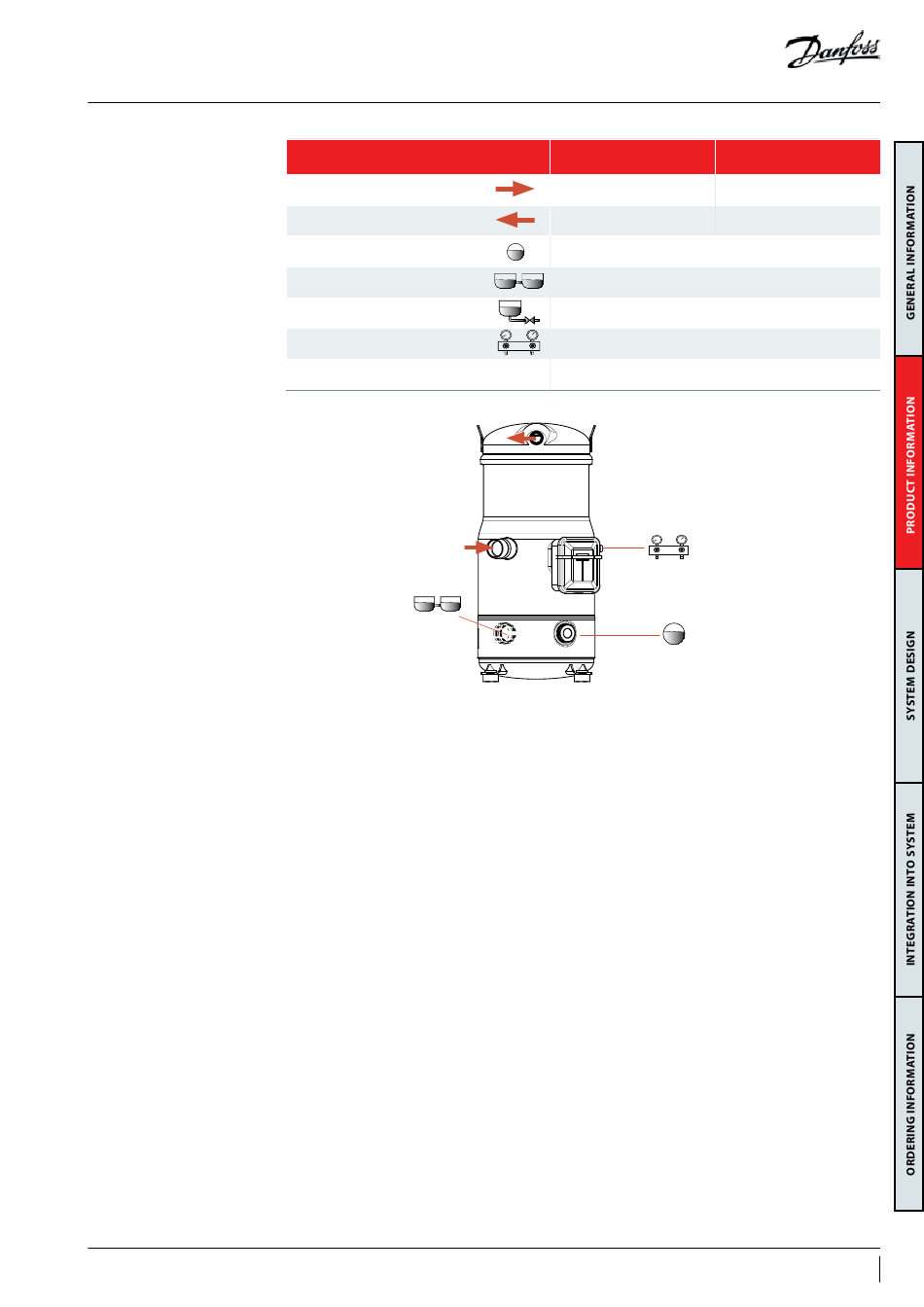

Outline
DSF090-100
Brazed 1"1/8
Brazed 7/8"
Threaded (1"1/8 – 18 UNEF)
Rotolock 1"3/4
Male ¼" Flare incorporating a Schrader valve

DSF115-200
Brazed 1"3/8
Brazed 7/8"
None

