A
PPLICATION GUIDELINES

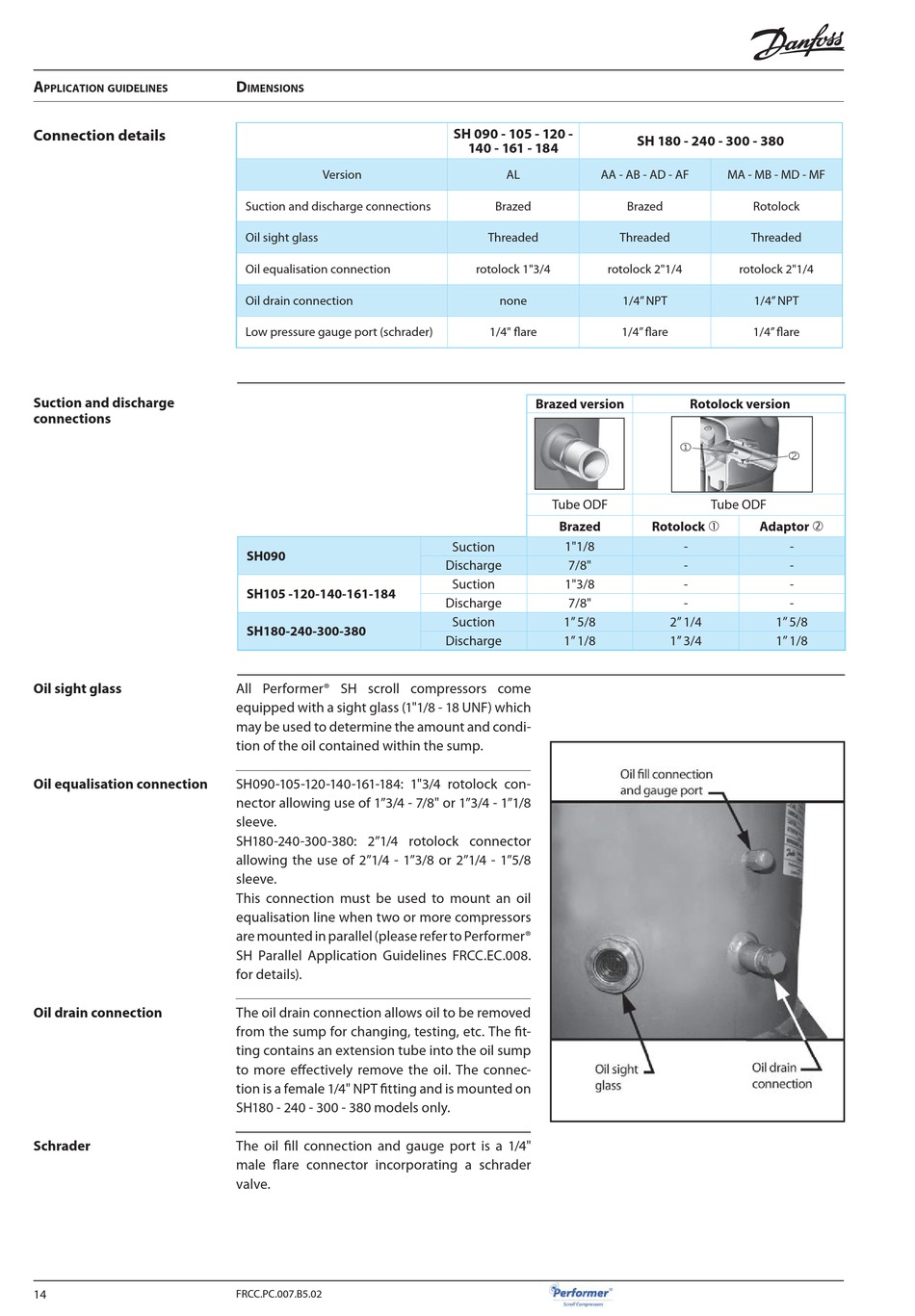

Connection details

Suction and discharge
connections
Oil sight glass
Oil equalisation connection
Oil drain connection
Schrader
14
D
IMENSIONS
Version
Suction and discharge connections
Oil sight glass
Oil equalisation connection
Oil drain connection
Low pressure gauge port (schrader)
SH090
SH105 -120-140-161-184
SH180-240-300-380
All Performer® SH scroll compressors come
equipped with a sight glass (1"1/8 - 18 UNF) which
may be used to determine the amount and condi-
tion of the oil contained within the sump.
SH090-105-120-140-161-184: 1"3/4 rotolock con-
nector allowing use of 1"3/4 - 7/8" or 1"3/4 - 1"1/8
sleeve.
SH180-240-300-380: 2"1/4 rotolock connector
allowing the use of 2"1/4 - 1"3/8 or 2"1/4 - 1"5/8
sleeve.
This connection must be used to mount an oil
equalisation line when two or more compressors
are mounted in parallel (please refer to Performer®
SH Parallel Application Guide lines FRCC.EC.008.
for details).
The oil drain connection allows oil to be removed
from the sump for changing, testing, etc. The fi t-
ting contains an extension tube into the oil sump
to more eff ectively remove the oil. The connec-
tion is a female 1/4" NPT fi tting and is mounted on
SH180 - 240 - 300 - 380 models only.
The oil fi ll connection and gauge port is a 1/4"
male fl are connector incorporating a schrader
valve.
FRCC.PC.007.B5.02
SH 090 - 105 - 120 -
140 - 161 - 184
AL AA - AB - AD - AF
Brazed
Threaded Threaded
rotolock 1"3/4 rotolock 2"1/4
none
1/4" fl are
Brazed version
Tube ODF
Brazed
Suction 1"1/8
Discharge 7/8"
Suction 1"3/8
Discharge 7/8"
Suction 1'' 5/8
Discharge 1'' 1/8
SH 180 - 240 - 300 - 380
MA - MB - MD - MF
Brazed Rotolock
Threaded
rotolock 2"1/4
1/4'' NPT 1/4'' NPT
1/4'' fl are 1/4'' fl are
Rotolock version
1
2
Tube ODF
Rotolock Adaptor
- -
- -
- -
- -
2'' 1/4 1'' 5/8
1'' 3/4 1'' 1/8
