Scroll compressors, VCH115 | Mechanical connections

Mechanical connections

Connection Details

Table 7: Connection Details
Connection Details
Suction connection
Discharge connection
EVI connection
Outline

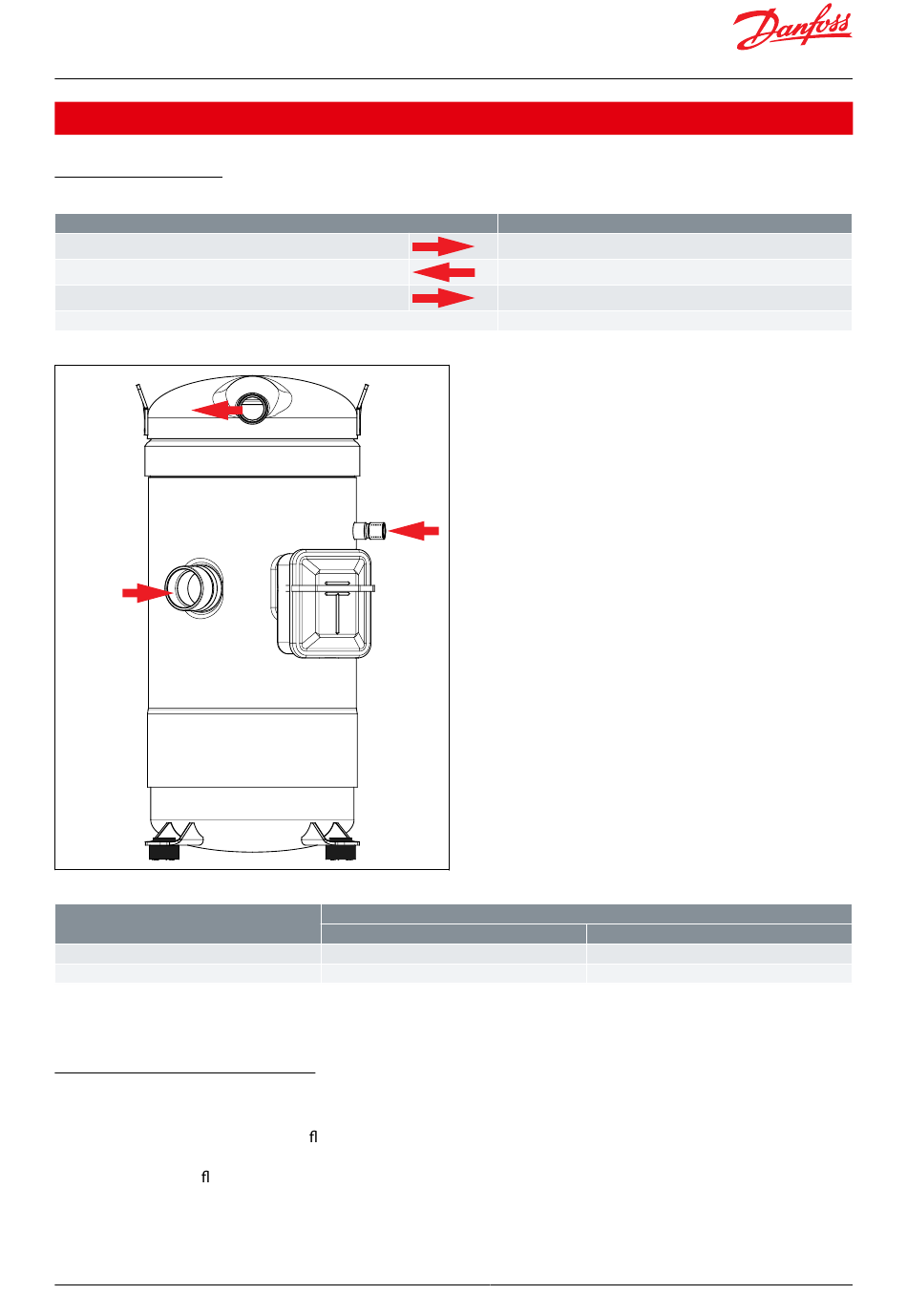

Figure 7: Outline drawing 1
CC000195
Table 8: Brazed connection
Compressor models
VCH115
VCH115
VCH compressor is all delivered with suction and discharge brazed connections only. They are copper-plated steel
connections.

Design compressor mounting

Grommets
Compressors must be mounted with exible grommets and metal sleeve delivered with compressor. The grommets
attenuate the transmission of compressor vibrations to the base frame. The grommets must be compressed until
contact between the at washer and the steel mounting sleeve is established.
The required bolt size for the VCH115 compressor is HM8-40. This bolt must be tightened to a torque of 15 Nm (11
ft/lbs.).
© Danfoss | Climate Solutions | 2023.08
Brazed
connection
Suction
Discharge
VCH115
1"5/8
1"1/8
Ø13
1
size
1"5/8
1"1/8
