Matatakitoyo Torque Tools MT2-1500N Operation Manual

Torque multiplier

Torque Multiplier

OPERATION MANUAL

TORQUE

1/2"

3/4"

BEFORE STARTING

1. Study this instruction before use.

2. This tool is with torque ratio and there is an amount of reaction to be made to the fasteners.

Please keep hands or face away from reaction plate. The reaction force might result injury.

3. THIS TOOL IS DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.

DO NOT USE ANY IMPACT TOOL TO OPERATE.

4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.

5. Do not use this tool near rotating machinery.

6. Any adjustments will result in the loss of accuracy and invalidating the warranty.

7. Do not use any kind of extension on the handle of the tool.

This will not only damage the tool, also aﬀect the accuracy.

8. Please wear gloves and goggles when working.

CAUTIONS

CONTENTS

Torque multiplier

Supplied in a plastic box.

PART NAME

Manual

1 Body

2 Reaction plate

3 Input drive

MT2-1500N

4 Output drive

5 Screw

Models covered

Table of Contents

Do you have a question about the MT2-1500N and is the answer not in the manual?

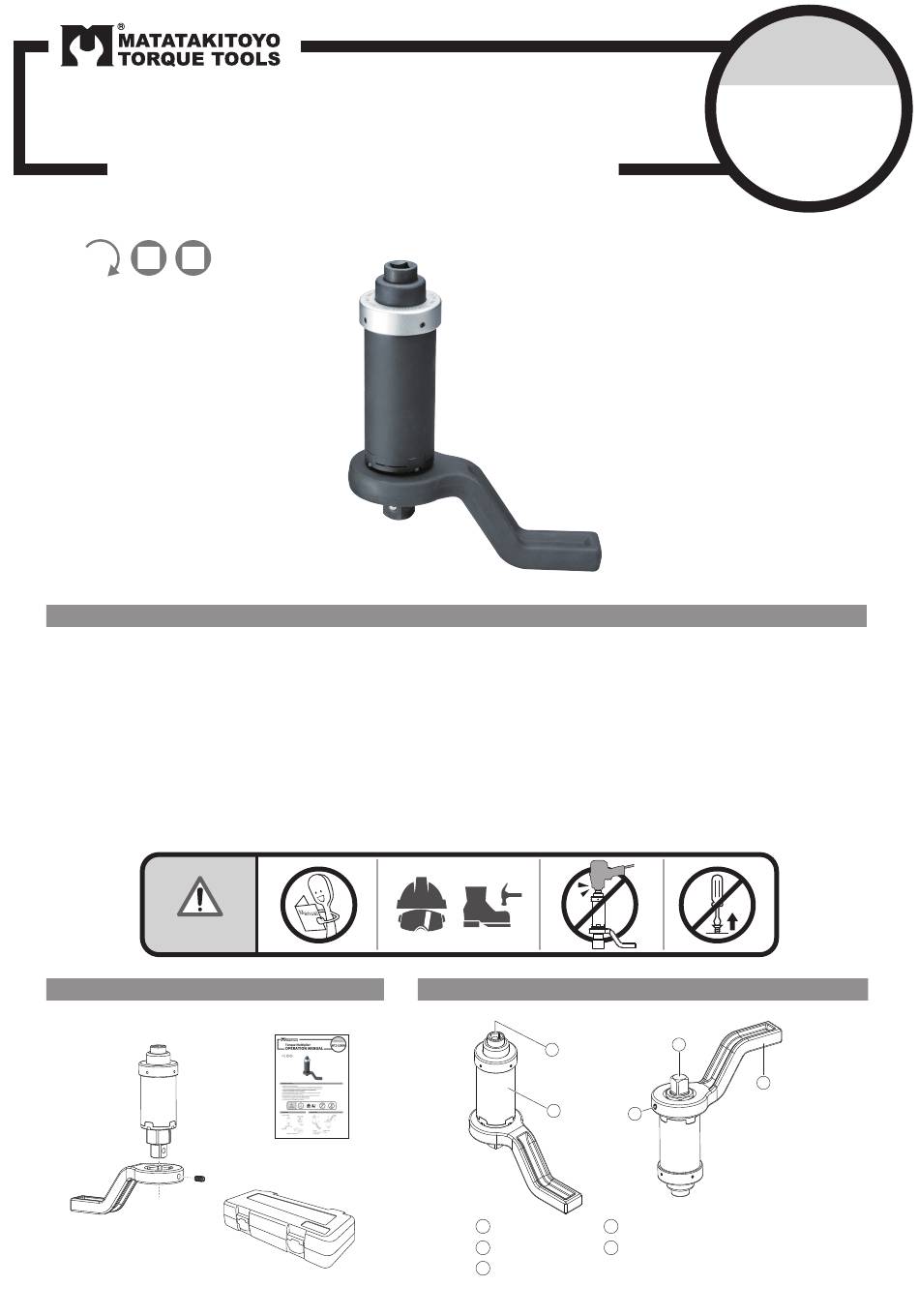

Page 1 Models covered Torque Multiplier MT2-1500N OPERATION MANUAL TORQUE 1/2” 3/4” BEFORE STARTING 1. Study this instruction before use. 2. This tool is with torque ratio and there is an amount of reaction to be made to the fasteners. Please keep hands or face away from reaction plate. The reaction force might result injury.
Page 2 Accuracy : C.W.±6% Range ( max ) Input Output Torque Ratio ITEM NO. Drive Drive Input Output MT2-1500N 1:10 150 Nm 110 ft.lb 1500 Nm 1100 ft.lb 1/2" 3/4" 192.5 Unit : mm Version Jun. 2023 Manufacturer MATATAKITOYO TOOL CO., LTD.
