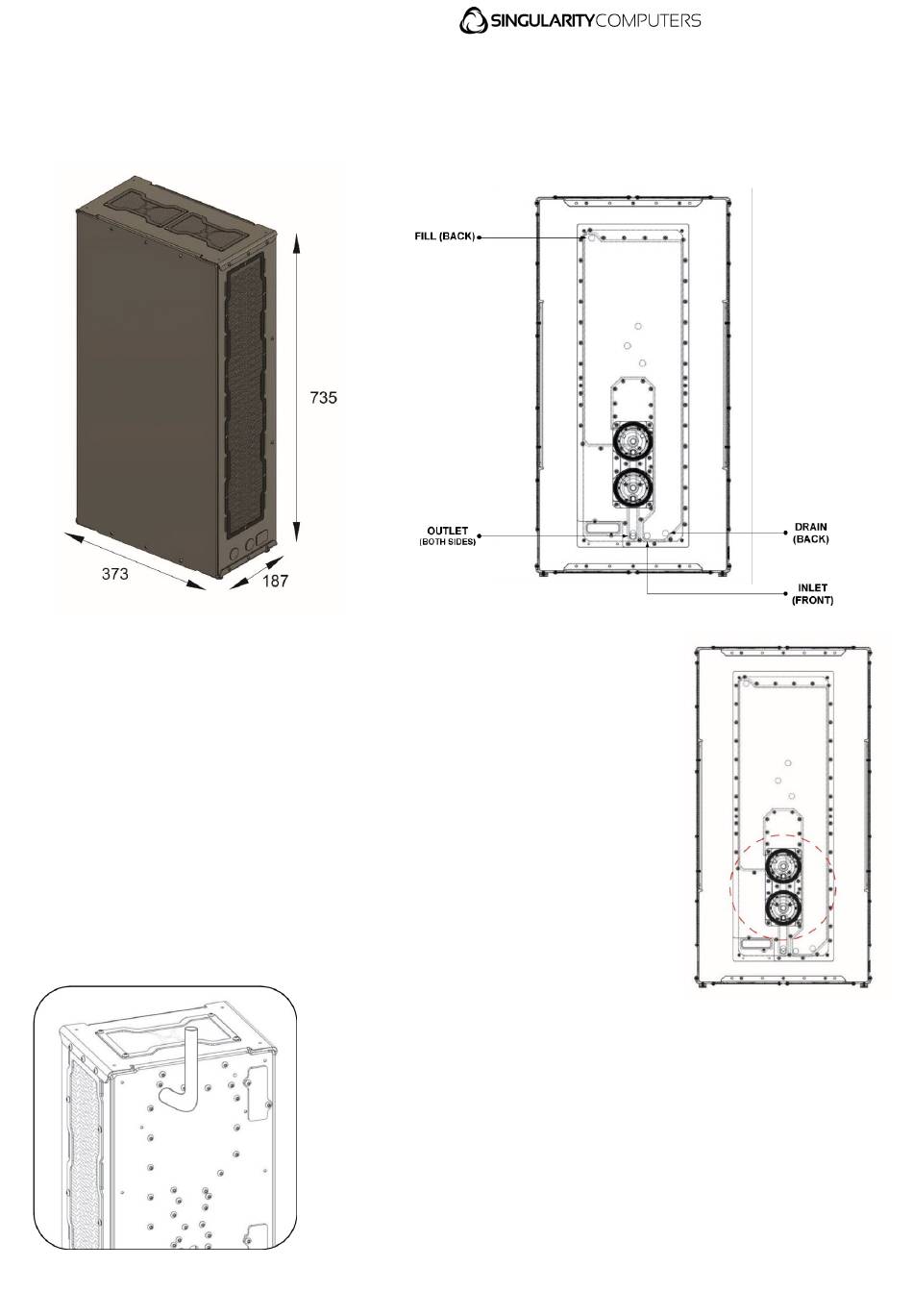

Dimensions & Port Layout
Dimensions are in millimetres
Pump Installation
Any D5 Pump is compatible. Use the included O-Rings, place them into
the O-Ring groove on the pump top, then place the D5 pump motor into
the pump top and put the pump cover over the pump. Screw the pump
cover down firmly onto the pump top. Make sure the O-Ring stays in
position while you are tightening the D5 Pump Cover.
Revision 1.0
Filling & Draining
Arterial 2.0 Water-boxes have a dedicated fill and drain port.
When filling it is best to connect a fill tube at least 20cm long.
This is to prevent any overflow from back flow when the pump/s
are turned off and helps to get the last of the air out. For draining
a drain valve needs to be added to the drain port, or if you are
using quick disconnects then the water-box could also be
drained from those.
| Arterial 2 Manual
Page | 6
